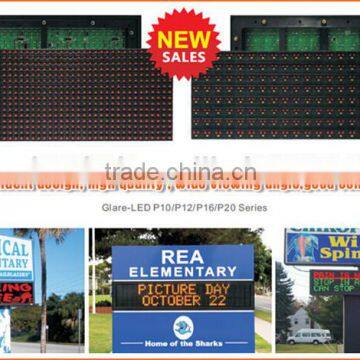

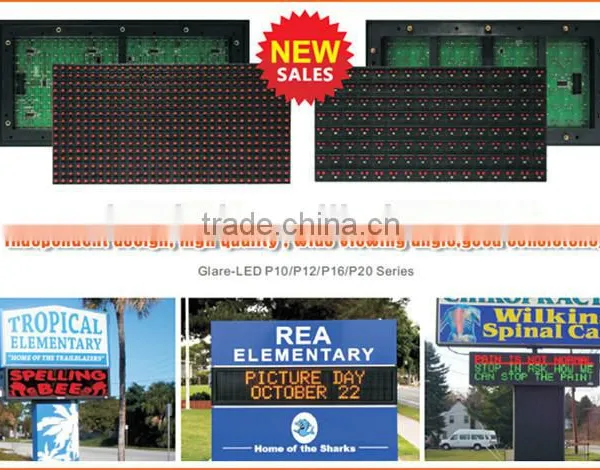

running lines single dual color LED sign display for outdoor use
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
- LED Advertising Display,LED Advertising Board,LED Screen Advertising
- tri-color,full color iron case or aluminium alloy case outdoor led display
- dual color P7.62 LEDS walking Moving signs Indoor LED scrolling message display screen panel
- P10 fixed install led billboard outdoor led video display for advertising p10 outdoor advertising wall
- Front Accessible LED Sign,display screens solutions
- SMD indoor LED Information Scheduling Display System Solution
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | P10 |
Packaging Details
wooden box packing
Product Description
moving text /simple picture running lines single dual color LED sign display for outdoor use Specifications
1.CE,ROHS,UL
2.high waterproof
3.3 years warranty
4.good after sales service

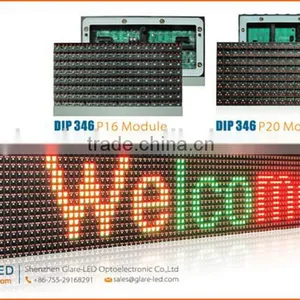

LED Module specification
ITEM | technical parameter |
Dot Pitch | 10mm |
Pixel density | 10000/m2 |
Pixel Configuration | 1R1G1B |
Module Dimension | 160mm(L)*160mm (H) |
Module Resolution | 16pixel(L)* 16pixel(H) |
Viewing Distance | 10m |
Viewing angle-Horizontal | 90°-120° degree |
Viewing angle-Vertical | 30°-60° degree |
Operating temperature | -40°C—+85°C(for storage);-20°C—+50°C (for working) |
Max-power consumption | ≤380 W/m2 |
Drive type | 1/4 constant current |
Video frame rate | >=60(FPS) |
Refresh rate | >=180 FPS |
LED encapsulation type | 346 DIP Style LED |
Red wavelength(dominant) | 625 nm (+2.5nm/-2.5nm) |
Green wavelength(dominant) | 525 nm (+2.5nm/-2.5nm) |
Blue wavelength(dominant) | 470 nm (+2.5nm/-2.5nm) |
Brightness adjusted by | Software (0-100levels adjustable) |
Malfunction dot rate (the radio of out of control of all screen) | < 0.0002 |
White balanced brightness | ≥2000 cd/m2 |
Life-span | 100000 hours |
MTTF | >=4500 hours |
Humidity | 10%-99% |
PC display mode | 1024*768 |
Software | LED display studio |
Best Viewing Distance:
P3 led display for the best viewing distance between 3-10m
P4 led display for the best viewing distance between 4-15m
P5 led display for the best viewing distance between 5-20m
P6 led display for the best viewing distance between 6-25m
P8 led display for the best viewing distance between 8-30m
P10 led display for the best viewing distance between 10-33m
P12 led display for the best viewing distance between 12-40m
P16 led display for the best viewing distance between 15-45m
P20 led display for the best viewing distance between 18-60m
P25 led display for the best viewing distance between 20-70m
P31.25 led display for the best viewing distance between 25-100m
led display signs

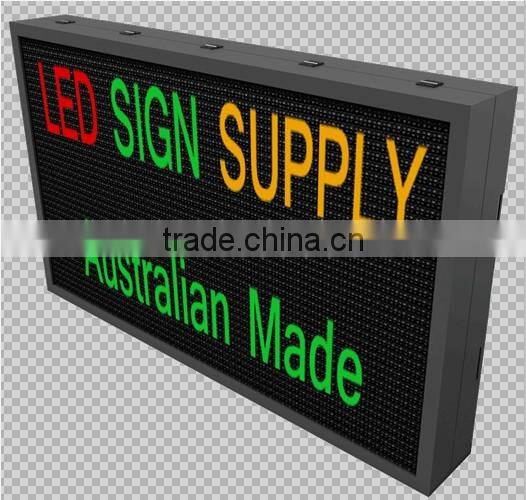

If your In the market for a LED Display Sign, than you have come to the right place! Customers find that LED SIGN SUPPLY is the cheapest manufacturer here with the highest quality LED Display Signs with the best after market service, offering a 5 Year Warranty and a 10 Year Technical Support Plan on the entire LED Display Sign range. LED Sign Supply can also assist customers in purchasing the right LED Display Sign, with minimal capital outlay through the "Rent-it Own-it" option.
our factory show
related LED display screen signs

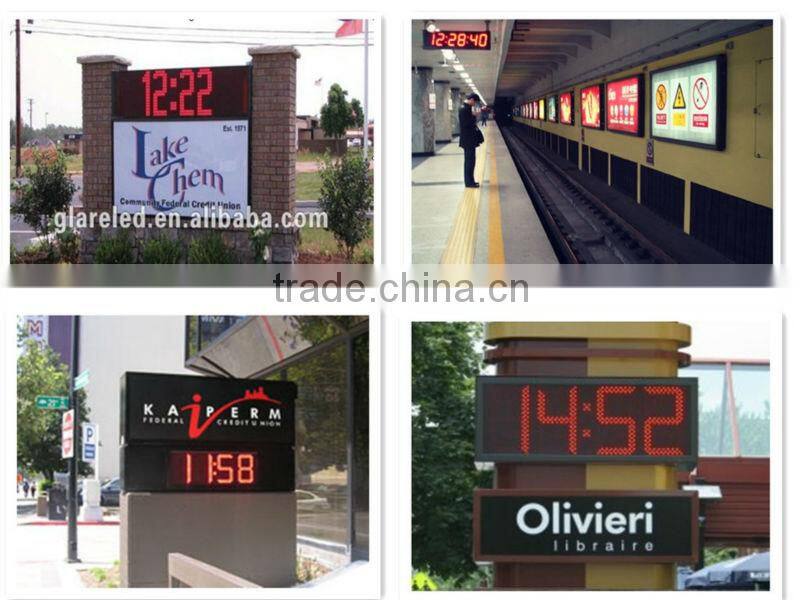

led time and temp sign

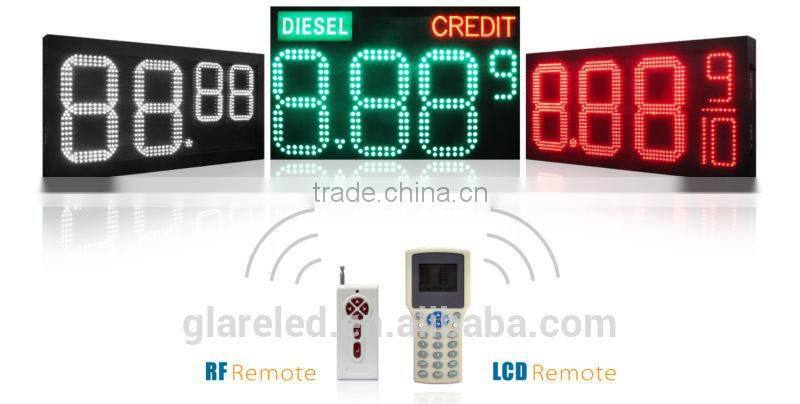

led gas price sign

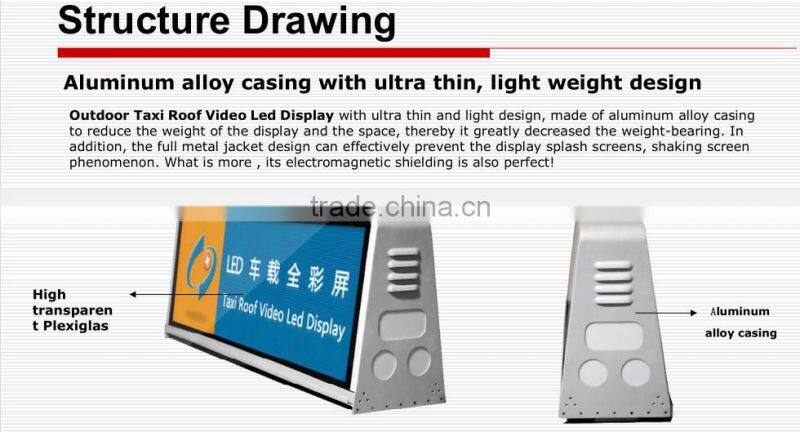

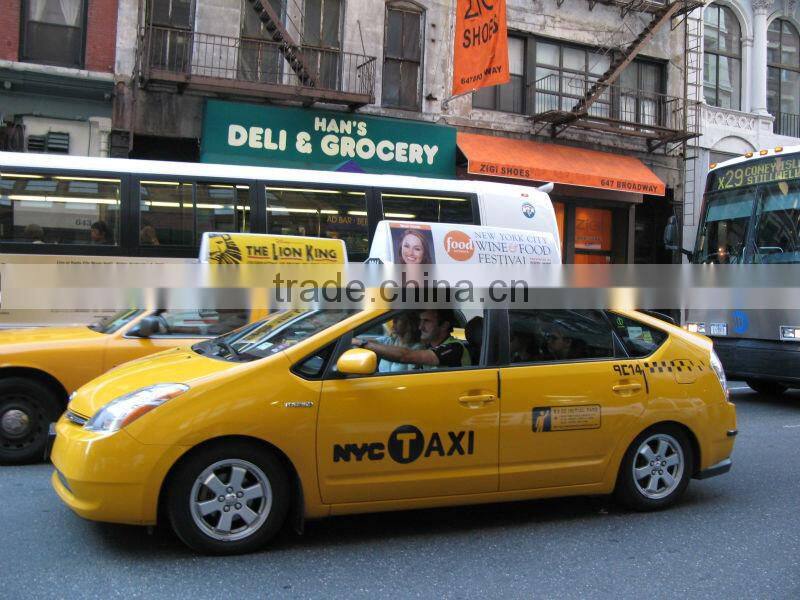

led taxi 3G sign display video

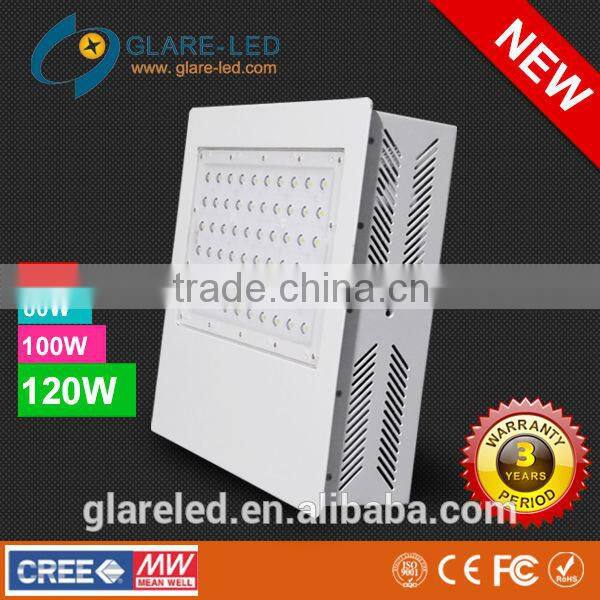

led canopy light
Company Profile
Shenzhen Glare-LED Co., Ltd is a highly scientific and technological enterprise, specializing in developing, manufacturing and selling LED display screens, LED gas price display, Led moving signs, LED tube, high power LED bulb. After the foundation of our company, we have devoted ourselves to the development and production of LED products. In the R&D department of our company, we have the first-class technological engineers in China. They have the strong ability of technique R&D. They also can develop and produce various and relevant products according to the different needs of our customers.
As a leading manufacturer and exporter of LED products in China, We always hold the producing belief of "we should be responsible for our customers, for the quality of our products, as well as for every staff". Thorough managing measures, strict quality testing procedures and highly sophisticated and fully automatic large-scale equipment are our important approaches for keeping the quality of our products and competitive price.
The area of our factory building is 2500 square meters, and we have more than one hundred workers, and several QC workers.
Our products have been exported to many countries and regions including the United States, Canada, Germany, Spain, France, Italy, Korea, Taiwan, HK, Japan, and Singapore. We supply our best service and competitive prices to our customers, and the best award from our clients is their long time cooperation with us. If you find any interesting item of our products, please don't hesitate to contact us. We'll always be at your service.
