outdoor RGB Led Sign Board
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- USA 6 /7.62 /12 mm Outdoor Led Fullcolor Display
- Electronic advertising signs triangle LED display
- P10 Full Color Advertising Electronics LED Outdoor Display
- Red chip single color outdoor LED moving message display sign
- LED Message Display in Restaurant and Catering Signs
- P10 Red LED Moving Message billboards panel
Product Details
Brand Name: | Glareled | Model Number: | GLM-P16 | Usage: | Other, Outdoor, outdoor use |
Tube Chip Color: | Full Color | Display Function: | Other, Video, Animation | Pixels: | Other |
Packaging Details
wooden box packing
Product Description
outdoor RGB Led Sign Board

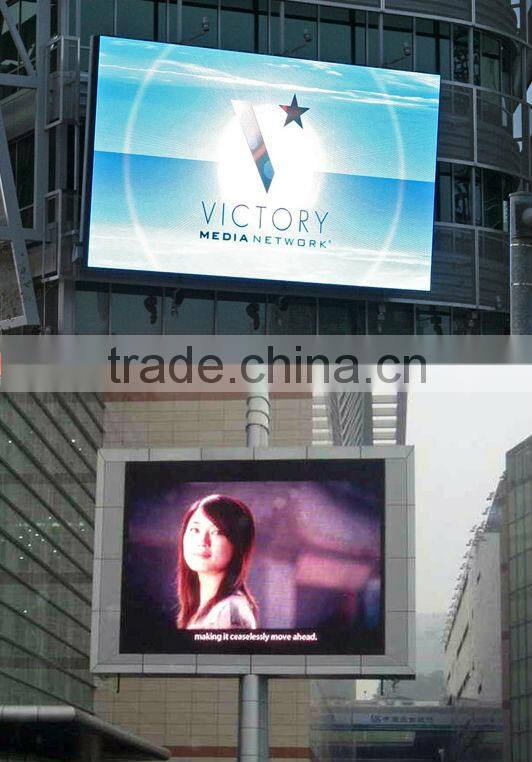

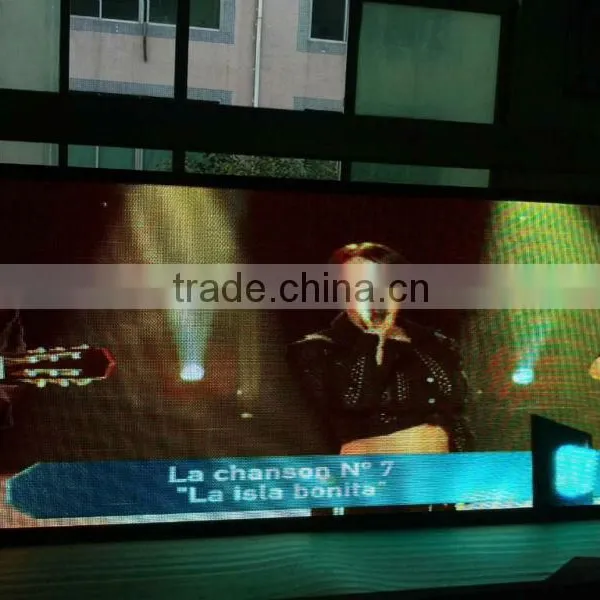

Picture for your reference :
Specifications
Outdoor Led Screen Display
outdoor use
picth: 16mm
FULL COLOR
Size Of Module | 160mm × 80mm | 192mm x 96mm | 256mm x 128mm | 320mm x 160mm | 400mm x 200mm |
Pixels In Module | 16 x 8 | 16 x 8 | 16 x 8 | 16 x 8 | 16 x 8 |
Density Of Pixel | 10,000 dots/m² | 6,944 dots/m² | 3,906 dots/m² | 2,500 dots/m² | 1,600 dots/m² |
Pixel Configuration | 1R 1G 1B | 2R 1G 1B | 2R 1G 1B | 2R 1G 1B | 2R 1G 1B |
Red Wavelength | 625 ±2nm | 625 ±2nm | 625 ±2nm | 625 ±2nm | 625 ±2nm |
Green Wavelength | 525 ±2nm | 525 ±2nm | 525 ±2nm | 525 ±2nm | 525 ±2nm |
Blue Wavelength | 427 ±2nm | 427 ±2nm | 427 ±2nm | 427 ±2nm | 427 ±2nm |
Number Of Colors | 16,777,216 | 16,777,216 | 16,777,216 | 16,777,216 | 16,777,216 |
Best Viewing Angle | 120° | 120° | 120° | 120° | 120° |
Max Power Consumption | 2,000 w/m² | 1,500 w/m² | 1,200 w/m² | 1,100 w/m² | 600 w/m² |
Brightness | 7,000 cd/m² | 7,000 cd/m² | 6,500 cd/m² | 5,500 cd/m² | 5,000 cd/m² |
Gray Scale | 14 bits/color | 14 bits/color | 14 bits/color | 14 bits/color | 14 bits/color |
Control Method | Synchronization | Synchronization | Synchronization | Synchronization | Synchronization |
Driving Method | Constant ½ Scanning | ½ Scanning | Constant Static | Constant Static | Constant Static |
Frame Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
Refresh Frequency | ≥300 Hz | ≥300 Hz | ≥300 Hz | ≥300 Hz | ≥300 Hz |
Working Voltage | AC 220V/110V ±10% | AC 220V/110V ±10% | AC 220V/110V ±10% | AC 220V/110V ±10% | AC 220V/110V ±10% |
IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
Working Temperature | -10°C to +45°C | -10°C to +45°C | -10°C to +45°C | -10°C to +45°C | -10°C to +45°C |
MTBF | ≥10,000 Hours | ≥10,000 Hours | ≥10,000 Hours | ≥10,000 Hours | ≥10,000 Hours |
Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
CE show
Applications
Advertising | Retail Businesses |
Event Listings | Waiting Areas |
Hospitals | Safety Awareness |
Fund Raising | Point of Purchase |
Entertainment Areas | Financial Information |
Corporate Communications |
Features
• Display English or European characters as well as graphic symbols.
• kinds of methods of displaying your message (Open to Center, Open from Right, Open from left,Cyclic,etc.)
• Built-in real time clock. Customized time/date format are also available
• 8 programmable display speeds
• Segmented display capability to allow separate control of sections of the display
• Duplex function allows user read data from one sign by a PC and copy it to another sign
• Up to 128 units can network via RS422 communication
• Interface of the managing software can be in multiple languages
• Password protection.
• Low consumption
• Fixing methods: desk, wall or ceiling
• Display Real Temperature (optional)
Specifications
• Pixel pitch:6 mm,7.62 mm,12 mm etc.
• Display Color: full color
• Life span: 50,000 hours
• Communication: PC-USB port, RS232 com port, or Infra-red remote control ,TCP/IP network ,wireless control
• Viewing Angle: 140° for indoor models, 110° for window brightness
• Working Temperature: -30°C ~ +70°C
• Working Humidity: 0% - 95% RH
• Power Input: 100-240VAC , 60Hz/50Hz
• Brightness: 1200-8000 cd/m2 (indoor)
• Memory Retention: One year
• Housing Material: Black Powder Coated Aluminum
Company Profile
Shenzhen Glare-LED Co., Ltd is a highly scientific and technological enterprise, specializing in developing, manufacturing and selling LED display screens, LED gas price display, Led moving signs, LED tube, high power LED bulb. After the foundation of our company, we have devoted ourselves to the development and production of LED products. In the R&D department of our company, we have the first-class technological engineers in China. They have the strong ability of technique R&D. They also can develop and produce various and relevant products according to the different needs of our customers.
As a leading manufacturer and exporter of LED products in China, We always hold the producing belief of "we should be responsible for our customers, for the quality of our products, as well as for every staff". Thorough managing measures, strict quality testing procedures and highly sophisticated and fully automatic large-scale equipment are our important approaches for keeping the quality of our products and competitive price.
The area of our factory building is 2500 square meters, and we have more than one hundred workers, and several QC workers.
Our products have been exported to many countries and regions including the United States, Canada, Germany, Spain, France, Italy, Korea, Taiwan, HK, Japan, and Singapore. We supply our best service and competitive prices to our customers, and the best award from our clients is their long time cooperation with us. If you find any interesting item of our products, please don't hesitate to contact us. We'll always be at your service.
