Pixel Pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED Module

Pixel Pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED Module thumbnail-1
Pixel Pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED Module thumbnail-2
Pixel Pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED Module thumbnail-3
Pixel Pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED Module thumbnail-4
Pixel Pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED Module photo-1
Pixel Pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED Module photo-2
Pixel Pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED Module photo-3
Pixel Pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED Module photo-4
US$ 1,000 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Glareled
Model Number:
GLM-P10
Usage:
Other, Outdoor, outdoor use
Contact Supplier Request Quote Chat Now
Shenzhen Glare-LED Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Glareled
Model Number GLM-P10
Usage Other, Outdoor, outdoor use
Tube Chip Color Full Color
Display Function Other, Video, Animation
Pixels Other, 12mm

Outdoor Led Video Wall  Pixel pitch 6 mm 7.62 mm 12 mm Led Panel  LED module

 Pixel pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED module





Specifications



Outdoor Led Screen Display
outdoor use
picth: 10mm
color RED



Size Of Module

160mm × 80mm

192mm x 96mm

256mm x 128mm

320mm x 160mm

400mm x 200mm

Pixels In Module

16 x 8

16 x 8

16 x 8

16 x 8

16 x 8

Density Of Pixel

10,000 dots/m²

6,944 dots/m²

3,906 dots/m²

2,500 dots/m²

1,600 dots/m²

Pixel Configuration

1R 1G 1B

2R 1G 1B

2R 1G 1B

2R 1G 1B

2R 1G 1B

Red Wavelength

625 ±2nm

625 ±2nm

625 ±2nm

625 ±2nm

625 ±2nm

Green Wavelength

525 ±2nm

525 ±2nm

525 ±2nm

525 ±2nm

525 ±2nm

Blue Wavelength

427 ±2nm

427 ±2nm

427 ±2nm

427 ±2nm

427 ±2nm

Number Of Colors

16,777,216

16,777,216

16,777,216

16,777,216

16,777,216

Best Viewing Angle

120°

120°

120°

120°

120°

Max Power Consumption

2,000 w/m²

1,500 w/m²

1,200 w/m²

1,100 w/m²

600 w/m²

Brightness

7,000 cd/m²

7,000 cd/m²

6,500 cd/m²

5,500 cd/m²

5,000 cd/m²

Gray Scale

14 bits/color

14 bits/color

14 bits/color

14 bits/color

14 bits/color

Control Method

Synchronization

Synchronization

Synchronization

Synchronization

Synchronization

Driving Method

Constant ½ Scanning

½ Scanning

Constant Static

Constant Static

Constant Static

Frame Frequency

60 Hz

60 Hz

60 Hz

60 Hz

60 Hz

Refresh Frequency

≥300 Hz

≥300 Hz

≥300 Hz

≥300 Hz

≥300 Hz

Working Voltage

AC 220V/110V ±10%

AC 220V/110V ±10%

AC 220V/110V ±10%

AC 220V/110V ±10%

AC 220V/110V ±10%

IP Grade

IP 65

IP 65

IP 65

IP 65

IP 65

Working Temperature

-10°C to +45°C

-10°C to +45°C

-10°C to +45°C

-10°C to +45°C

-10°C to +45°C

MTBF

≥10,000 Hours

≥10,000 Hours

≥10,000 Hours

≥10,000 Hours

≥10,000 Hours

Life Span

100,000 Hours

100,000 Hours

100,000 Hours

100,000 Hours

100,000 Hours







CE show

 Pixel pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED module

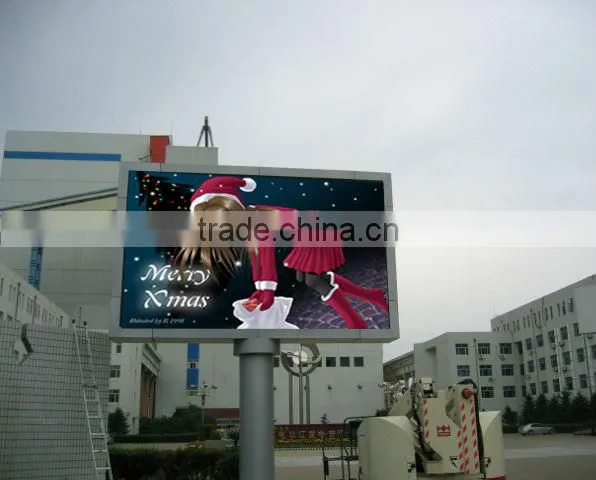

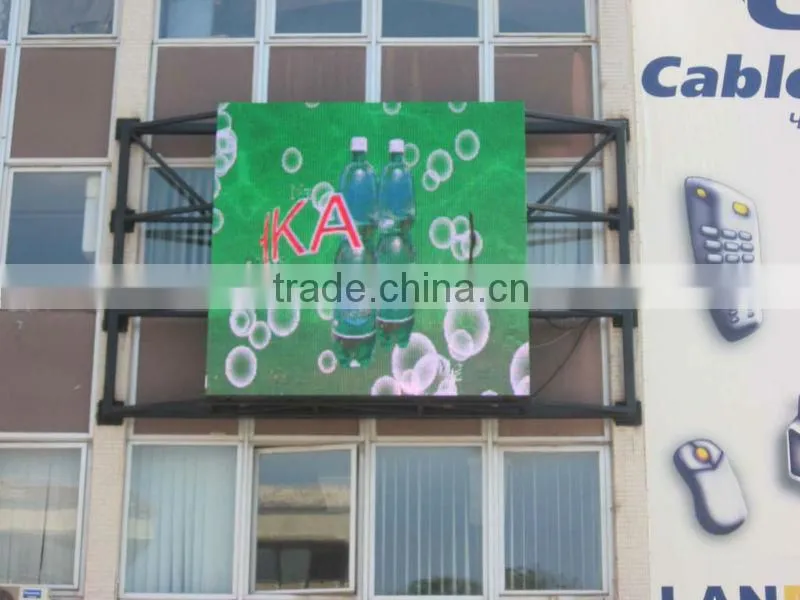

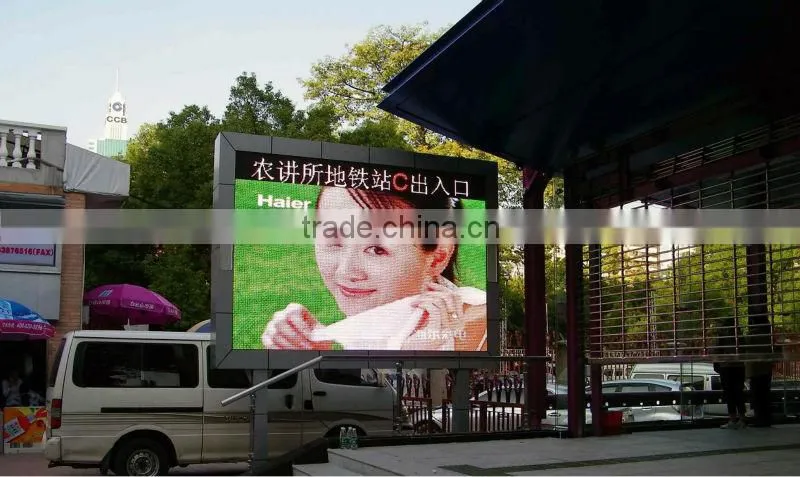

Project show



Pixel pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED modulePixel pitch 6 mm 7.62 mm 10mm 12 mm Led Panel LED module



Applications

Advertising

Retail Businesses

Event Listings

Waiting Areas

Hospitals

Safety Awareness

Fund Raising

Point of Purchase

Entertainment Areas

Financial Information

Corporate Communications

Features

• Display English or European characters as well as graphic symbols.
• kinds of methods of displaying your message (Open to Center, Open from Right, Open from left,Cyclic,etc.)
• Built-in real time clock. Customized time/date format are also available
• 8 programmable display speeds
• Segmented display capability to allow separate control of sections of the display
• Duplex function allows user read data from one sign by a PC and copy it to another sign
• Up to 128 units can network via RS422 communication
• Interface of the managing software can be in multiple languages
• Password protection.
• Low consumption
• Fixing methods: desk, wall or ceiling
• Display Real Temperature (optional)


Specifications
• Pixel pitch:6 mm,7.62 mm,12 mm etc.
• Display Color: full color
• Life span: 50,000 hours
• Communication: PC-USB port, RS232 com port, or Infra-red remote control ,TCP/IP network ,wireless control
• Viewing Angle: 140° for indoor models, 110° for window brightness
• Working Temperature: -30°C ~ +70°C
• Working Humidity: 0% - 95% RH
• Power Input: 100-240VAC , 60Hz/50Hz
• Brightness: 1200-8000 cd/m2 (indoor)
• Memory Retention: One year
• Housing Material: Black Powder Coated Aluminum
