Home > Consumer Electronics > LED Display > Indoor LED Display > Nice!!! Grocery Store Freezer Display Led Lighting

Nice!!! Grocery Store Freezer Display Led Lighting

Name: Nice!!! Grocery Store Freezer Display Led Lighting
Brand: Glareled
SKU: 131631555

Nice!!! Grocery Store Freezer Display Led Lighting thumbnail-1

Nice!!! Grocery Store Freezer Display Led Lighting photo-1

US$ 800 - 8,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Glareled

Model Number:

P10

Contact Supplier Request Quote Chat Now

Shenzhen Glare-LED Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Glareled

Model Number P10

Usage Outdoor

Tube Chip Color Full Color

Display Function Graphics

Pixels Other, 16*16 pixels

Screen Dimension as your option

Specifications

Display Led Lighting
1.Resolutions:16*16
2.Pich:10mm
3.Whole screen resolution:10000pixel/m2
4.Display color:RGB

Nice!!! Grocery Store Freezer Display Led lighting

Applications

LED signs increase sales 15%-150% at 10% of the cost of other advertising.

Store never left unattended.

Grab customers attention.

Help your businesses grow more quickly.

Features

• Display English or European characters as well as graphic symbols.

• kinds of methods of displaying your message (Open to Center, Open from Right, Open from left,Cyclic,etc.)

• Built-in real time clock. Customized time/date format are also available

• 8 programmable display speeds

• Segmented display capability to allow separate control of sections of the display

• Duplex function allows user read data from one sign by a PC and copy it to another sign

• Up to 128 units can network via RS232 communication

• Interface of the managing software can be in multiple languages

• Password protection.

• Low consumption

• Fixing methods: desk, wall or ceiling

• Display Real Temperature (optional)

Specifications

• Pixel pitch: 10mm, 12mm, 16mm, 20mm, 25mm and 31.25mm etc.

• Display Color: full color

• Life span: 50,000 hours

• Communication: PC-USB port, RS232 com port, or Infra-red remote control ,TCP/IP network ,wireless control

• Viewing Angle: 140° for indoor models, 110° for window brightness

• Working Temperature: -30°C ~ +70°C

• Working Humidity: 0% - 95% RH

• Power Input:, 100-, 240VAC , 60Hz/50Hz

• Brightness: 1200-8000 cd/m2 (indoor)

• Memory Retention: One year

• Housing Material: Black Powder Coated Aluminum

Parameter	P10	P12	P16	P20	P25
Pixel Pitch	10mm	12mm	16mm	20mm	25mm
Size Of Module	160mm × 80mm	192mm x 96mm	256mm x 128mm	320mm x 160mm	400mm x 200mm
Pixels In Module	16 x 8	16 x 8	16 x 8	16 x 8	16 x 8
Density Of Pixel	10,000 dots/m²	6,944 dots/m²	3,906 dots/m²	2,500 dots/m²	1,600 dots/m²
Pixel Configuration	1R 1G 1B	2R 1G 1B	2R 1G 1B	2R 1G 1B	2R 1G 1B
Red Wavelength	625 ±2nm	625 ±2nm	625 ±2nm	625 ±2nm	625 ±2nm
Green Wavelength	525 ±2nm	525 ±2nm	525 ±2nm	525 ±2nm	525 ±2nm
Blue Wavelength	427 ±2nm	427 ±2nm	427 ±2nm	427 ±2nm	427 ±2nm
Number Of Colors	16,777,216	16,777,216	16,777,216	16,777,216	16,777,216
Best Viewing Angle	120°	120°	120°	120°	120°
Max Power Consumption	2,000 w/m²	1,500 w/m²	1,200 w/m²	1,100 w/m²	600 w/m²
Brightness	7,000 cd/m²	7,000 cd/m²	6,500 cd/m²	5,500 cd/m²	5,000 cd/m²
Gray Scale	14 bits/color	14 bits/color	14 bits/color	14 bits/color	14 bits/color
Control Method	Synchronization	Synchronization	Synchronization	Synchronization	Synchronization
Driving Method	Constant ½ Scanning	½ Scanning	Constant Static	Constant Static	Constant Static
Frame Frequency	60 Hz	60 Hz	60 Hz	60 Hz	60 Hz
Refresh Frequency	≥300 Hz	≥300 Hz	≥300 Hz	≥300 Hz	≥300 Hz
Working Voltage	AC 220V/110V ±10%	AC 220V/110V ±10%	AC 220V/110V ±10%	AC 220V/110V ±10%	AC 220V/110V ±10%
IP Grade	IP 65	IP 65	IP 65	IP 65	IP 65
Working Temperature	-10°C to +45°C	-10°C to +45°C	-10°C to +45°C	-10°C to +45°C	-10°C to +45°C
MTBF	≥10,000 Hours	≥10,000 Hours	≥10,000 Hours	≥10,000 Hours	≥10,000 Hours
Life Span	100,000 Hours	100,000 Hours	100,000 Hours	100,000 Hours	100,000 Hours

Products list and application area

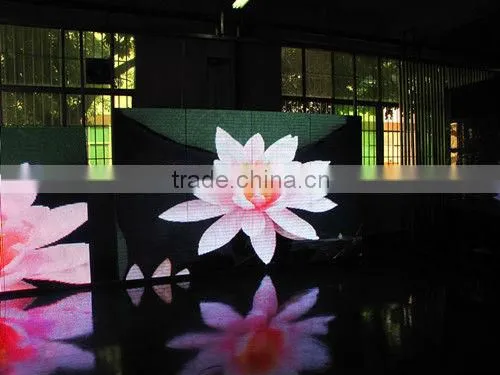

1) Full color LED display: Equally or compactly make the red, green, blue color in one DOT, equally distribute at the panel, so make the whole display

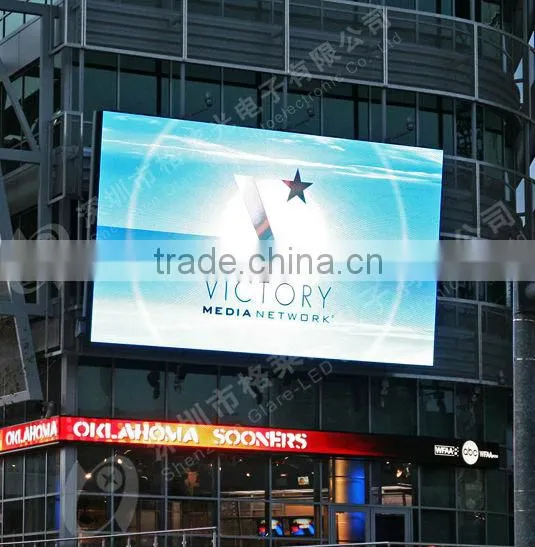

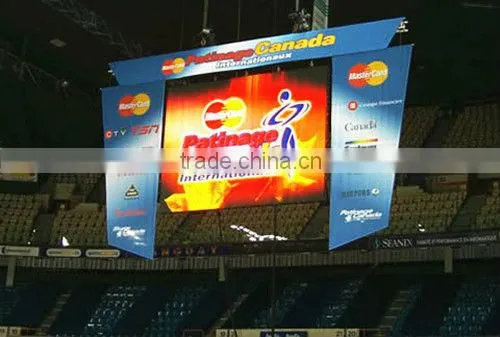

2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment

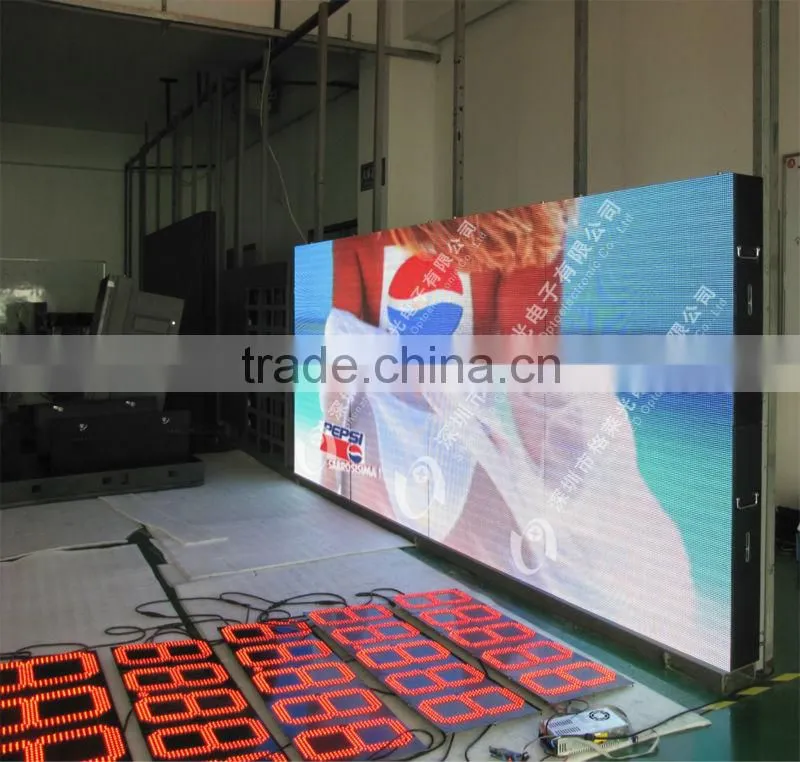

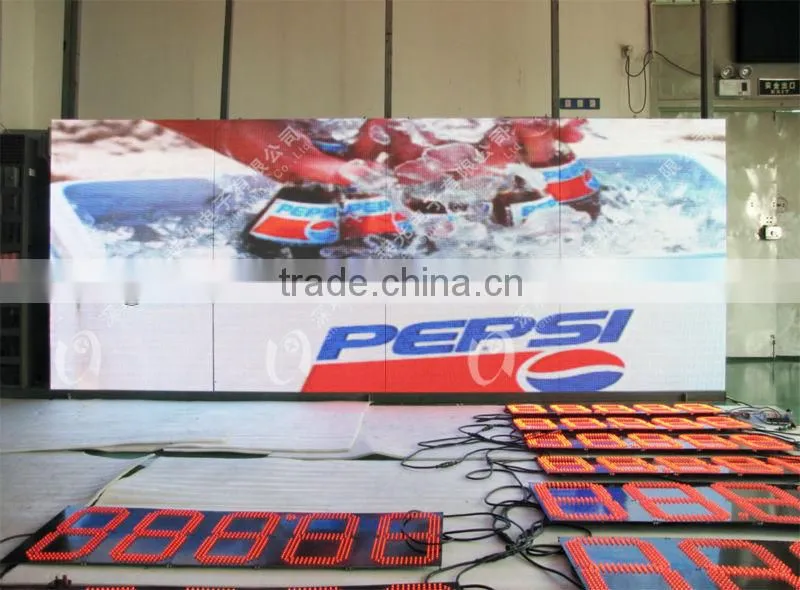

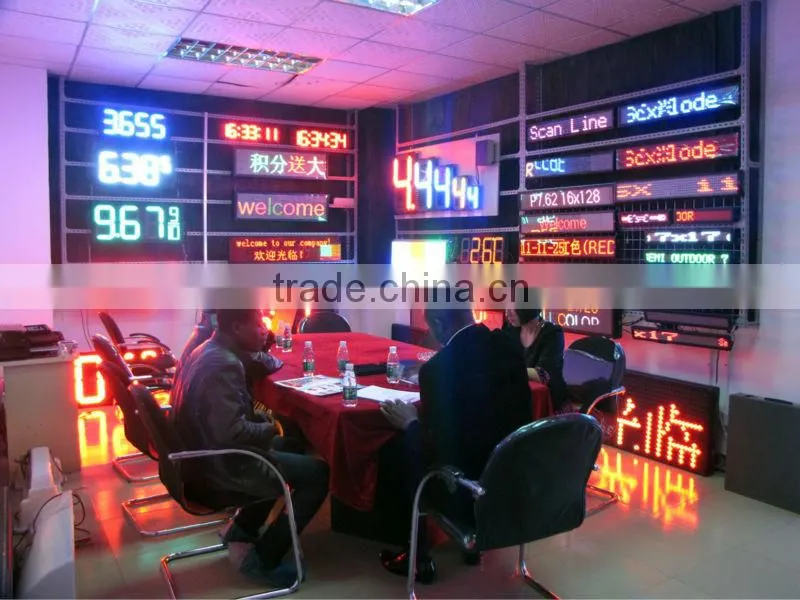

LED Workshop

Certificates

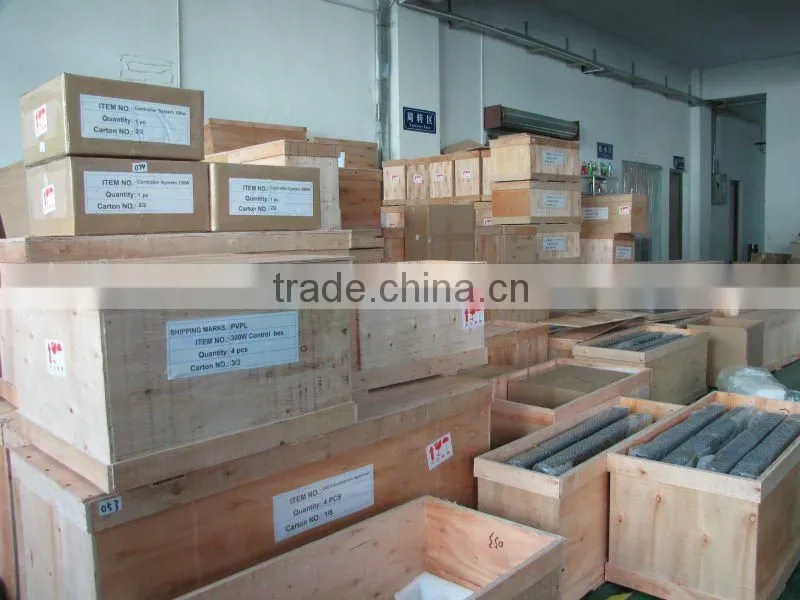

Package
