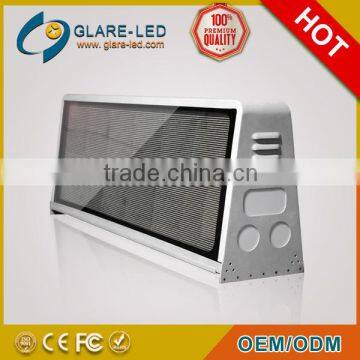

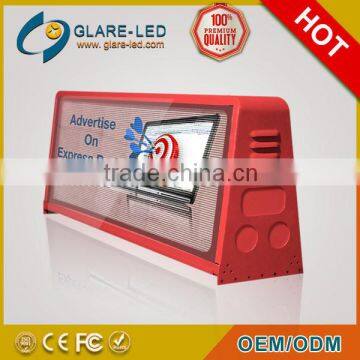

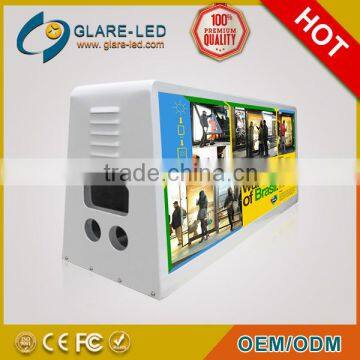

3G led taxi display video sign double sides
Now everywhere is the taxi.If you want to promote the advertising business,so taxi must be need.The 3G advertising led display will bring you much more businss.
Parameter
| Module | ||||||||
| 1 | Pixel pitch | PH5 | ||||||
| 2 | Resolution | 40000 dots/sq.m | ||||||
| 3 | LED composition | 1R 1G 1B | ||||||
| 5 | Module size(mm) | W160*H160 | ||||||
| 6 | Module resolution | W32*H32 | ||||||
| 7 | Module quantity | W6 *H2= 12pcs *2(double side)=24pcs | ||||||
| Cabinet | ||||||||
| 9 | Cabinet size(mm) | W960*H320 (not including the bracket height) | ||||||
| 10 | Cabinet resolution(dots) | W192*H64 | ||||||
| 11 | Cabinet quantity(pc) | 1 | ||||||
| 12 | Cabinet material | Aluminum cabinet | ||||||
| 13 | Cabinet color | black, silvery, custom-made | ||||||
| 14 | Cabinet weight(kg/pc) | 32KG | ||||||
| 15 | power consumption(w) | 750W | ||||||
| Package | ||||||||
| 16 | Packaging Size(m)(per pc): | W1050*H510*T(top190+bottom295) | ||||||
| 17 | Package Material: | ply wooden case | ||||||
| 18 | Wooden Case Quantity(pcs): | 1 | ||||||
| 19 | Inner Pack: | EPE foam | ||||||
| 20 | G.W.(kg): | 45KG | ||||||
| Viewing | ||||||||
| 21 | White Balance Brightness(cdm) | ≥4500 | ||||||
| 22 | Display Color grade | 256 grade, ≥16.7 M colors | ||||||
| 23 | View Angle | Horizontal 140°; Vertical 20° | ||||||
| 24 | Min. viewing distance(m) | 5 | ||||||
| 25 | Max. viewing distance(m) | 50 | ||||||
| Driving method & scan | ||||||||
| 26 | Driving Method | 1/8 scan Constant driving current | ||||||
| 27 | lED lamp | Silan /Opto | ||||||
| 28 | Refresh Frequency (Hz) | ≥500 | ||||||
| Control system & connector | ||||||||
| 29 | display system control method | Asynchronous control | ||||||
| 30 | video format | AVI,WMV,MPG,MOV,DAT,VOB,MP4,FLV.ect | ||||||
| 31 | pictuer format | GIF,SWF,bmp,jpg,gif,wmf,ico,ect | ||||||
| 32 | words format | txt,rtf,ect | ||||||
| 33 | Input signal | Video: PAL/NTSC Option: VGA , Video , DVD,TV, etc | ||||||
| 34 | Software | Window xp /Vista/ win7/win8 | ||||||
| 35 | Communication distance(m) | Internet Wire<100, fiber>100 | ||||||
| 36 | Supported Networking | Through LAN/ WAN, RS232/RS485 | ||||||
| Protect & maintain | ||||||||
| 37 | Protection grades | IP65 | ||||||
| 38 | Working temperature(ºC) | -20~+60 | ||||||
| 39 | Humidity(RH) | Up to 95 | ||||||
| 40 | Display Lifetime(50% brightness, hours) | ≥100,000 | ||||||
| 41 | Out of controlled dot | ≤1/10,000 | ||||||
| 42 | Whole Display Flatness | Less than 1mm Juncture | ||||||
| 43 | Operating Voltage | DC-12V car power supply, or 220°C±10% or 110°C±10% | ||||||
| 44 | Maintenance way | middle, displace module | ||||||
Full Color Taxi Top Video Aderitising LED displays
1. Pitch 5mm full color led displays going outdoor,4000 nits and above, combining both vision quality and excellent visibility even in brigth sunlight.
2. Specially designed power supply, DC 12/24V direct input, tossing inverters aside, reducing hardware failure rate.
3. Easy installation.
4. Environment-friendly, energy-saving and low in power
consumption, 240W per piece.
5. UV-proof mask, slowing aging process.
Back of the led taxi roof sign display back cabinet
1.3g wireless control
2.GPS locate
3.high brightness,bright sensor
4.factory price
wooden box,1 pcs/box,safe shipping to your home
We are the professional led display manufacturer with 15 years experience.3600 m2 non-dust workshop,30 sales man,provide you the professional serivice.CE,FCC,ROHS,ISO certification.
About the 3G taxi led top sign,you may ask:
Q1: Where does the display get power supply from?
It will be connected with the engine of the car by power cable and get power supply from there .
Q2: Will the display fall off when the cab runs at high speed?
It will be fixed by screws to the taxi top so no need to worry.
Q3: 5000 nits? Police might tow my cab away for it's too bright at night.
Tell us about it and we will add a light sensor (charged). Brightness will be adjusted down automatically when it's dark.
Q4: What spare part can you choose ?
Light Sensor / GPS /Temperature Sensor
I am James,glad to help you.
My skype: james-led display
WhatsApp:+86-18320822893
Wechat:1101784501
QQ:1101784501
