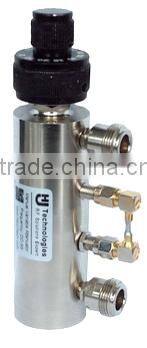

Help Centerrf Variable 0-90dB Step Attenuator Low Price
Related Products
-
RF Variable Pushbutton Attenuator Low PriceNegotiableMOQ: 1 Piece -
Variable Attenuator Model MVA - X - 100 - 10 Manual Variable AttenuatorNegotiableMOQ: 1 Piece
-
Variable Attenuator Model MVA - N - XX - 1/MVA - S - XX - 1 Manual Variable AttenuatorNegotiableMOQ: 1 Piece
-
rf Variable Attenuator Push ButtonNegotiableMOQ: 1 Piece
-
Manual Variable AttenuatorNegotiableMOQ: 1 Piece
Variable Attenuator
http://www.
Specification |
Description |
Nominal Impedance |
50 Ω |
VSWR |
1.3 |
Maximum In put power |
2 W |
Insertion Loss |
0.8dB maximum |
Isolation |
20dB minimun |
Temperature Range |
-55°C to +125°C |
Connectors |
N or SMA |
Number of ports |
1 in put and 1 out put |
Frequency Range |
DC to 3 GHZ |
ATTENUATION ACCURACY | |
Attenuation Range |
Accuracy |
0 - 10 dB |
≤ ±0.2 dB |
11 - 60 dB |
≤ ±0.5 dB |
61 -70 dB |
≤ ±1.2 dB |
71 -100 dB |
≤ ±3 dB |
CONFIGURATIONS | ||
Model |
Attenuation Range( dB) |
Steps ( dB) |
MVA - N - 30 - 1 |
0 - 30 |
1 |
MVA - N - 60 - 1 |
0 - 60 |
1 |
MVA - N - 90 - 1 |
0 - 90 |
1 |
MVA - N - 100 - 1 |
0 - 100 |
1 |
MVA - S - 30 - 1 |
0 - 30 |
1 |
MVA - S - 60 - 1 |
0 - 60 |
1 |
MVA - S - 90 - 1 |
0 - 90 |
1 |
MVA - S - 100 - 1 |
0 - 100 |
1 |

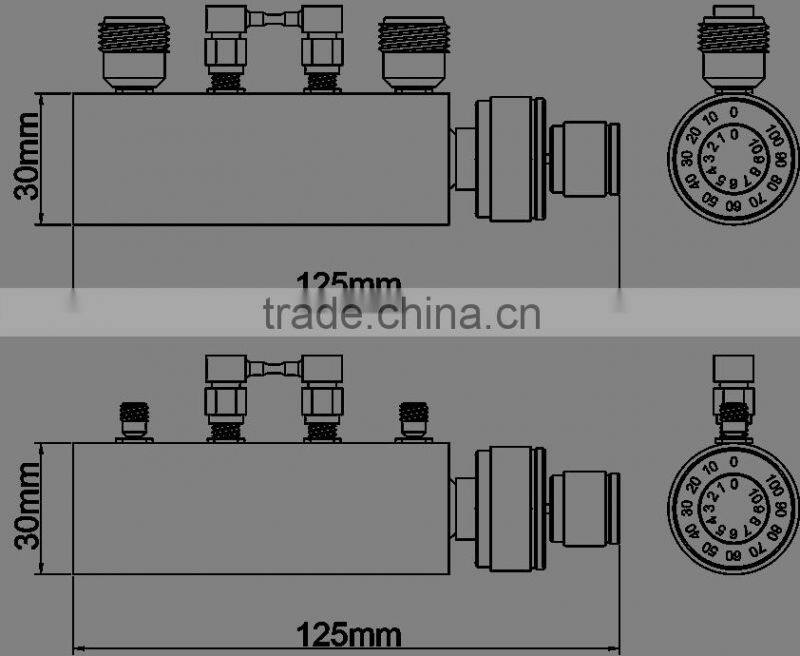

Dimension
Features
- Widest Selection of Attenuation Ranges & Step Sizes
- Available Models
- High quality, cost effective and fast delivery
• Payment: T/T, L/C, Wester Union.
• Delivery Method: DHL, FEDEX, UPS, TNT, EMS and other courier available as required.
• Freight: All freight shall be paid by the buyers.
• Delivery lead time: 1 - 4 weeks.
• Packing: Plastic bag + Carton, Standard Exporting Cartons. logo can be customized.
