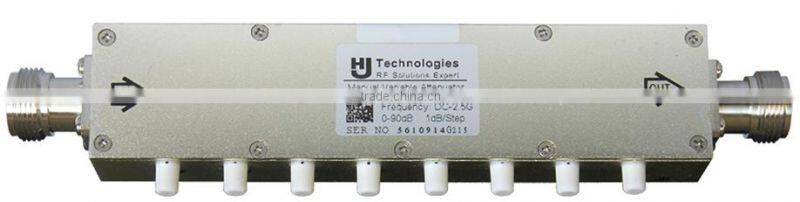

Variable Attenuator( Model PBVA - N - 90 - 1) Push Button
http://www.
Specification |
Description |
Nominal Impedance |
50 Ω |
VSWR |
1.4 |
Maximum In put power |
2 W |
Frequency Range |
700 MHZ to 2.5 GHZ 5 Watts |
Insertion Loss |
3.5 dB maximum |
Isolation |
20dB minimun |
Temperature Range |
- 10°C to +50°C |
Connectors |
N female connectors all ports |
Number of ports |
1 in put and 1 out put |
ATTENUATION ACCURACY (SINGLE KEY) | |
0 - 8 |
≤ ±0.9 dB |
10 - 20 dB |
≤ ±2 dB |
CELL CONFIGURATIONS | ||
Model |
Attenuation Range( dB) |
Steps ( dB) |
PBVA-N-90-1 |
0 - 90 |
1,2,4,8,16,20,20,20 dB |

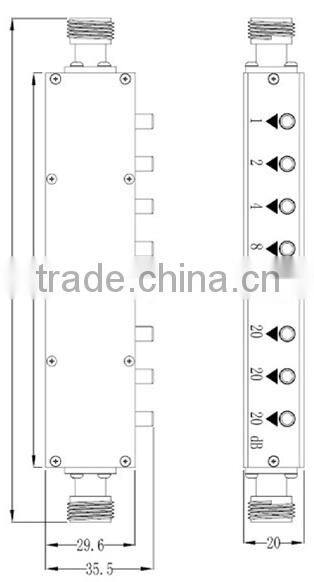

Dimension
Features
- Widest Selection of Attenuation Ranges & Step Sizes
- Available Models
- High quality, cost effective and fast delivery
• Payment: T/T, L/C, Wester Union.
• Delivery Method: DHL, FEDEX, UPS, TNT, EMS and other courier available as required.
• Freight: All freight shall be paid by the buyers.
• Delivery lead time: 1 - 4 weeks.
• Packing: Plastic bag + Carton, Standard Exporting Cartons. logo can be customized.
