rf Power Divider
- 500 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
Place of Origin | Shanghai, China | Brand Name | HJ | |
Model Number | Power Divider |
Product Description

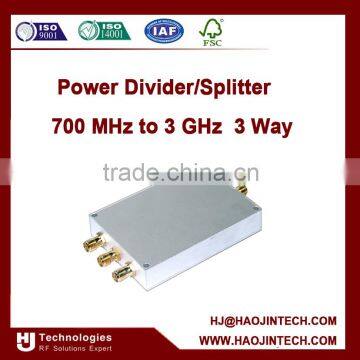

3 Way Micro-Strip Power Divider/Splitter
Specification | Description |
Nominal Impedance | 50 Ω |
Number of Ports | 1 input and3 outputs |
Temperature Range | -40°C to +70°C |
Connectors |

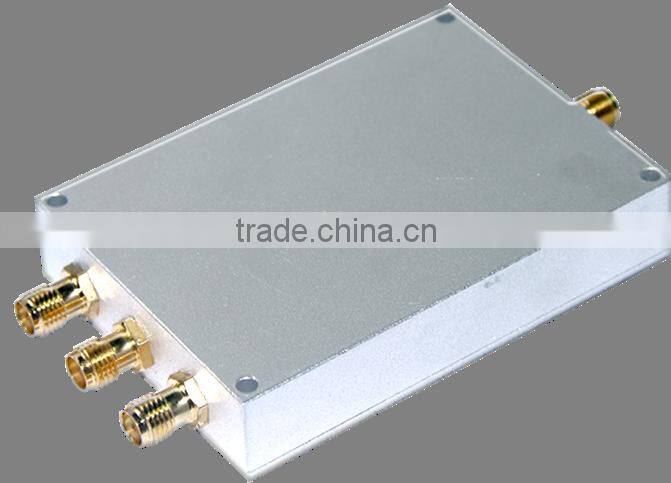

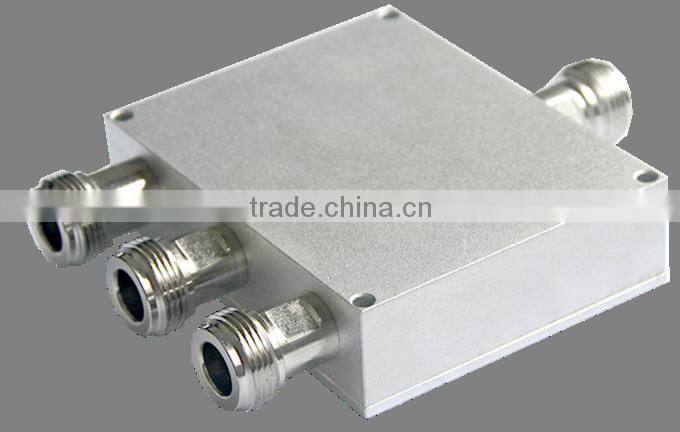

SMA Female or N Female |
Frequency Range | 700 MHz to 3 GHz 700 MHz to 4 GHz 2 GHz to 6 GHz |
Model HJPD - 3X - 1X | |
Freq. GHz | 0.7 - 3 |
Insertion Loss | ≤ 5.6 dB |
Amplitude Balance | ±0.8 dB |
Phase Balance | ±8° |
VSWR | 1.5 |
Max. power | 10W |
Isolation | ≥ 20 dB |
Model HJPD - 3X - 1X - B | |
Freq. GHz | 0.7 - 4 |
Insertion Loss | ≤ 5.6 dB |
Amplitude Balance | ±0.8 dB |
Phase Balance | ±8° |
VSWR | 1.5 |
Max. power | 10W |
Isolation | ≥ 20 dB |
Model HJPD - 3X - 1X - WIFI | |
Freq. GHz | 2 - 6 |
Insertion Loss | ≤ 5.8 dB |
Amplitude Balance | ±0.8 dB |
Phase Balance | ±6° |
VSWR | 1.4 |
Max. power | 10W |
Isolation | ≥ 20 dB |

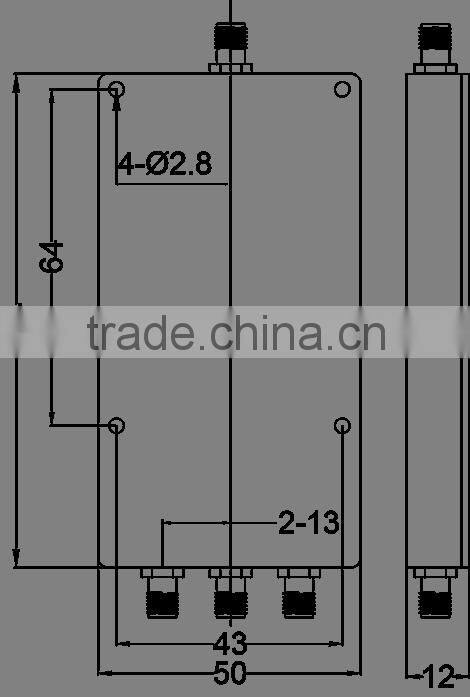

Dimension
Features
- Subminiature size and lightweight
- Low cost
- High quality, cost effective and fast delivery
• Payment: T/T, L/C, Wester Union.
• Delivery Method: DHL, FEDEX, UPS, TNT, EMS and other courier available as required.
• Freight: All freight shall be paid by the buyers.
• Delivery lead time: 1 - 4 weeks.
• Packing: Plastic bag + Carton, Standard Exporting Cartons. logo can be customized.
Thank you for exploring new solutions from HJ Technologies. HJ Technologies is a Chinese based company specializing in testing and optimization solutions for wireless technology.We provide professional expertise, experienced engineers and leading global products to our customers.
The complexities of developing and deploying wireless technology products are ever increasing.
HJ is an experienced and dedicated partner with the skill set and solutions necessary to help you build better networks.
As the world's premier RF production company, we work in close collaboration with engineers and researchers around the globe to exceed the wireless standards.
Our Programmable Attenuator Systems are focused on delivering technology-leading products and cost-effective solutions.
Our RF Test Accessories bring high accuracy, easy operation and user reliability.
