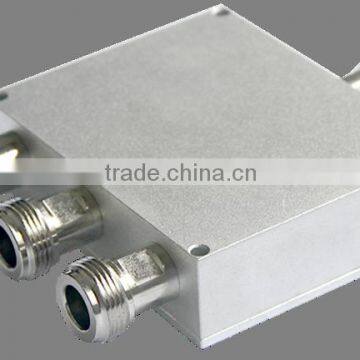

3 Way Micro-Strip Power Divider/Splitter
Specification |
Description |
Nominal Impedance |
50 Ω |
Number of Ports |
1 input and3 outputs |
Temperature Range |
-40°C to +70°C |
Connectors |
SMA Female or N Female |
Frequency Range |
700 MHz to 3 GHz 700 MHz to 4 GHz 2 GHz to 6 GHz |
Model HJPD - 3X - 1X | |
Freq. GHz |
0.7 - 3 |
Insertion Loss |
≤ 5.6 dB |
Amplitude Balance |
±0.8 dB |
Phase Balance |
±8° |
VSWR |
1.5 |
Max. power |
10W |
Isolation |
≥ 20 dB |
Model HJPD - 3X - 1X - B | |
Freq. GHz |
0.7 - 4 |
Insertion Loss |
≤ 5.6 dB |
Amplitude Balance |
±0.8 dB |
Phase Balance |
±8° |
VSWR |
1.5 |
Max. power |
10W |
Isolation |
≥ 20 dB |
Model HJPD - 3X - 1X - WIFI | |
Freq. GHz |
2 - 6 |
Insertion Loss |
≤ 5.8 dB |
Amplitude Balance |
±0.8 dB |
Phase Balance |
±6° |
VSWR |
1.4 |
Max. power |
10W |
Isolation |
≥ 20 dB |
Dimension
Features
- Subminiature size and lightweight
- Low cost
- High quality, cost effective and fast delivery
• Payment: T/T, L/C, Wester Union.
• Delivery Method: DHL, FEDEX, UPS, TNT, EMS and other courier available as required.
• Freight: All freight shall be paid by the buyers.
• Delivery lead time: 1 - 4 weeks.
• Packing: Plastic bag + Carton, Standard Exporting Cartons. logo can be customized.
