Specifications
GSM signal Booster for repeat the signal,GSM Signal Amplifier(ST-GSM980)verage:2500sqm
2.High-gain linear power amplifier
GSM signal Booster for repeat the signal,GSM Signal Amplifier(ST-GSM980)
This GSM980MHz mobile phone signal amplifier significantly improves the performance of any cellular device experiencing weak signal inside of buildings! It provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. it can help reduce drop calls and improve GSM voice communication quality. Using a large external antenna and an indoor repeater, this GSM signal booster boosts signals sent by both your phone and the cell tower.
Features
-High gain, easy installation and operation;
-Full-duplex, single-port design, build-in power supply;
-Use ALC technology, adjust extent automatically;
-LED light working and signal condition indicators;
-Big linear power, control intermodulation and scatteration stably;
-Working Temperature: -10 Degree Celsius to +60 Degree Celsius;
-Humidity: 5% -95;
-CE and RoHs Approved;
Specification
Working system |
GSM |
Frequency range |
Uplink 890-915MHz Downlink 935-960MHz |
Gain |
Uplink≥66dB Downlink 70dB |
Output up |
Uplink 26dBm Downlink 33dBm |
I/O impedance |
50Ω |
Connector |
N connector |
Noise figure |
≤6dB |
Transmission delay |
≤0.5μs |
Power supply |
AC110V-240V DC12V |
Size |
198*148*39 |
Weight |
1.5kg |
Reliability |
To the GB6993-86 standard |
Coverage area |
2000m² |

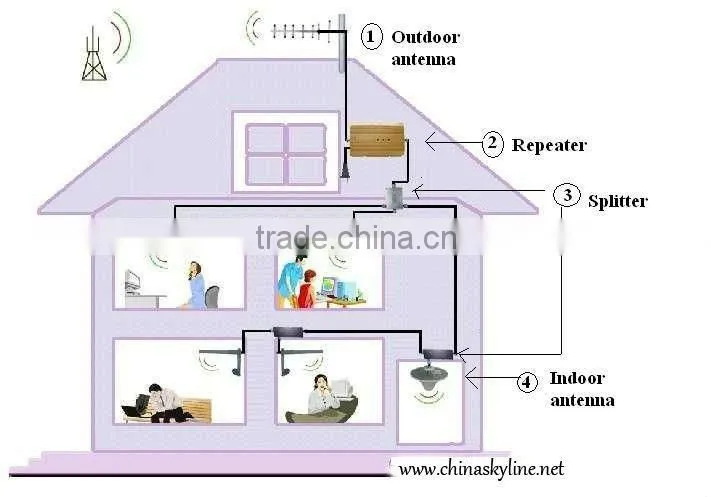

System Installation
Your system should come with at least the following items:
1) Outdoor Antenna (goes outside the building)
2) Signal repeater
3) Indoor Antenna (goes inside the building)!
4) Coaxial Communication Cables
5) Connetor
Where to Use it?
For more information, please contact us.
