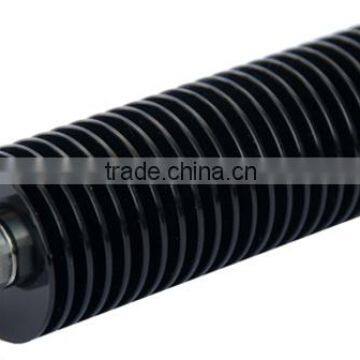

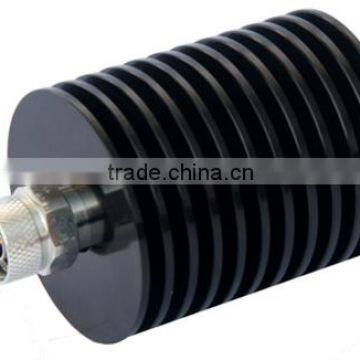

Fixed Attenuator( Model HJA50-XX-XX)
http://www.
Specification |
Description |
Nominal Impedance |
50 Ω |
Power Rating |
50 watts average |
Temperature Range |
-55°C to +125°C |
Connectors |
BNC, N, SMA ,TNC or 7/16 |
Construction |
Stainless steel/ aluminum alloy body |
Frequency Range |
DC to 2,5,4,6GHZ |
MAXIMUM DEVIATION | |||
Nominal ATT |
HJA50-2.5X |
HJA50-4X |
HJA50-6X |
1 - 10 dB |
±0.5 |
±0.5 |
±0.5 |
11 - 20 dB |
±0.7 |
±0.7 |
±0.7 |
21 - 30 dB |
±1.0 |
±1.0 |
±1.0 |
31 - 40 dB |
±1.2 |
±1.2 |
±1.2 |
MAXIMUM VSWR | |||
Model |
HJA50-2.5X |
HJA50-4X |
HJA50-6X |
VSWR |
1.2 |
1.25 |
1.35 |
System Diagram
Model Number Description
• Payment: T/T, L/C, Wester Union.
• Delivery Method: DHL, FEDEX, UPS, TNT, EMS and other courier available as required.
• Freight: All freight shall be paid by the buyers.
• Delivery lead time: 1 - 4 weeks.
• Packing: Plastic bag + Carton, Standard Exporting Cartons. logo can be customized.
