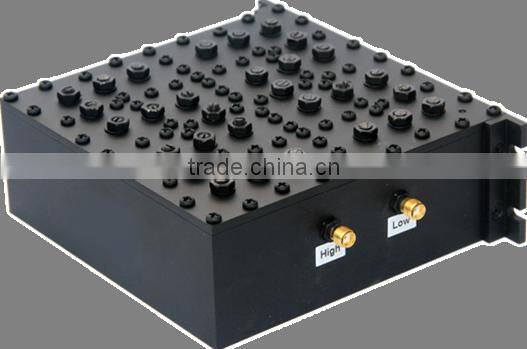

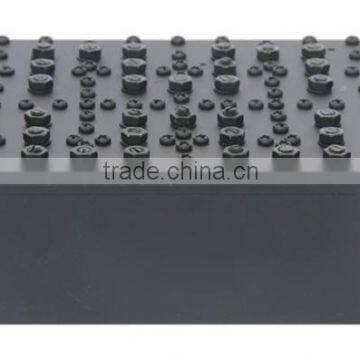

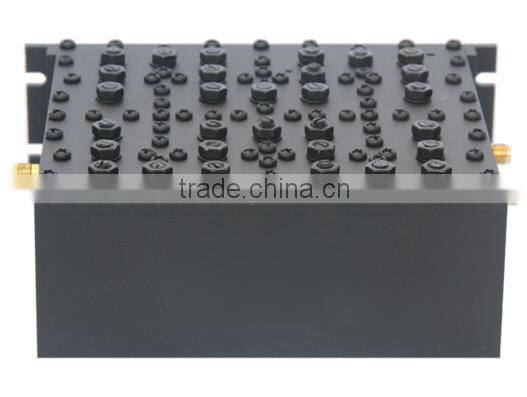

Duplexer Model HJDX - LTE - 01
http://www.
Model HJDX - LTE - 01 | ||
|
RX |
TX |
Freq. MHz |
2500 - 2570 |
2620 - 2690 |
Insertion Loss |
≤ 0.8 dB |
≤ 0.8 dB |
VSWR |
≤ 1.3 |
≤ 1.3 |
Rejection |
≥ 75 dB |
|
Power |
≤ 50CW |
|
Connectors |
SMA Female |
|
Dimensions |
100 x 77 x 25mm |
|
Temperature |
-25°C to +60°C |
|

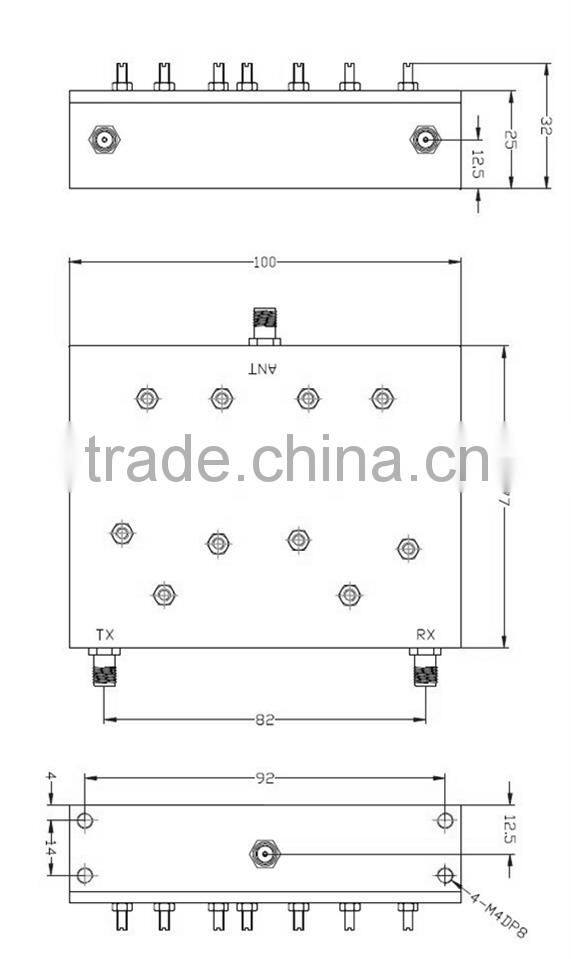

Dimension
Features
- Subminiature size and lightweight
- Low cost
- High quality, cost effective and fast delivery
• Payment: T/T, L/C, Wester Union.
• Delivery Method: DHL, FEDEX, UPS, TNT, EMS and other courier available as required.
• Freight: All freight shall be paid by the buyers.
• Delivery lead time: 1 - 4 weeks.
• Packing: Plastic bag + Carton, Standard Exporting Cartons. logo can be customized.
