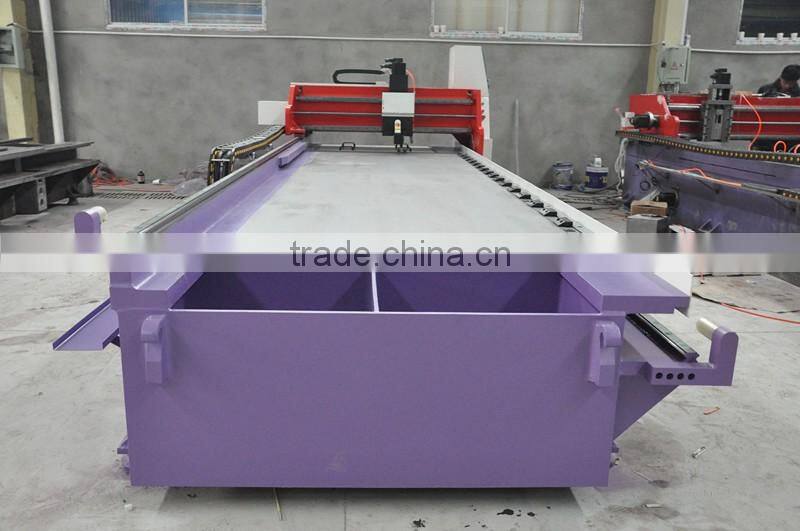

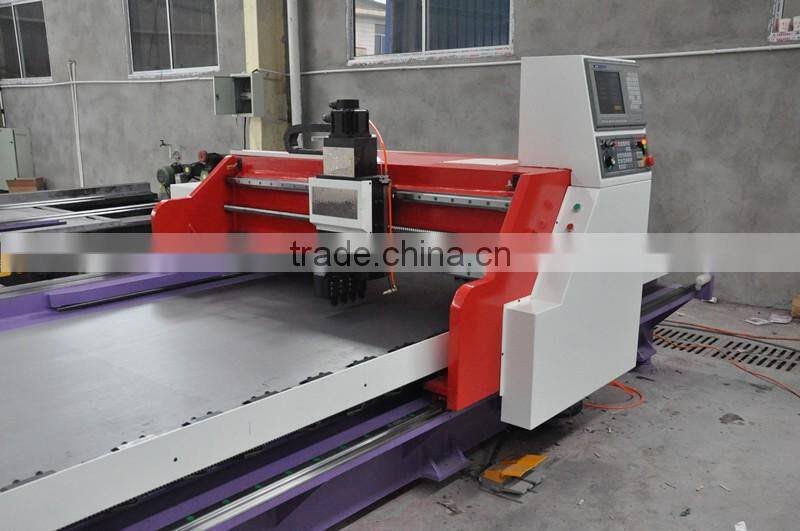

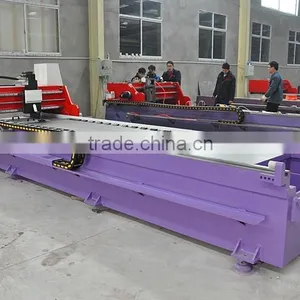

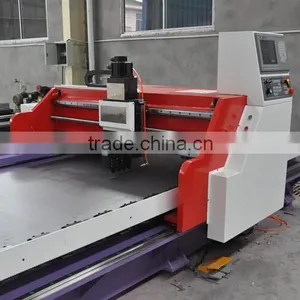

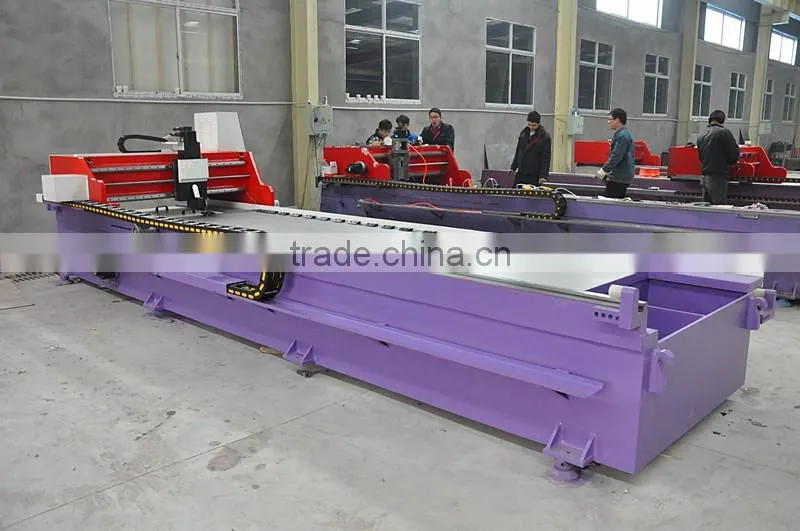

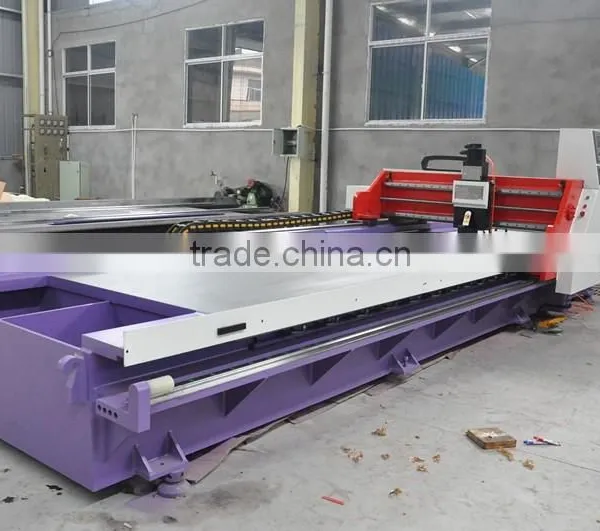

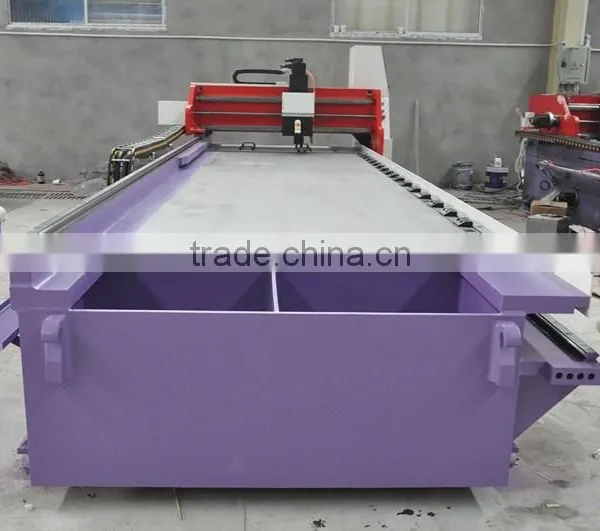

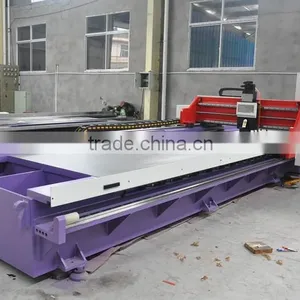

stainless steel v groove bending machine
1.CE,ISO.CQC
2.Digital display,NC,CNC
3.Fast delivery
4.High quality
Main Parameter
No. |
Project |
Parameter |
Unit |
|
1 |
Processing Capacity |
Max. Length |
4000 |
mm |
Max. Width |
1500 |
mm |
||
Max. Grooving Thickness |
4 |
mm |
||
Min. Grooving Thickness |
0.6 |
mm |
||
2 |
X shaft |
Max. Travel |
≥4000 |
mm |
Cutting Speed |
45000 |
mm/min |
||
Returning Speed |
65000 |
mm/min |
||
3 |
Y shaft
|
Max. Travel |
≥1500 |
mm |
Movement Speed |
20000 |
mm/min |
||
4 |
Z shaft |
Max. Travel |
≥100 |
mm |
Movement Speed |
20000 |
mm/min |
||
5 |
X shaft |
Motor Power |
5.5 |
KW |
6 |
Controlled shaft(X,Y1,Y2,Z) |
3+1 |
Pc |
|
7 |
Machine Weight |
8000 |
kg |
|
8 |
Dimension |
Length |
6000 |
mm |
Width |
2000 |
|||
Height |
650 |
|||
1. Warranty: 14 months after delivery the goods.
2. Payment: 30% down payment and 70% paid after receiving the copy of the documents.
3. Delivery: 30 days after receiving 30% down payment.
4. Loading: Plastic cover coat, through containers
5. Technique support and service: support twice operating training, first one is at my factory during the processing time, second one at the buyer’s factory during the re-installation/testing period. We will send our engineers go to buyer’s factory help to re-install this machine if customer required, and the customer need to pay for heir flight tickets(go and back), room and board, local travel cost.
welcome to visit our factory!
