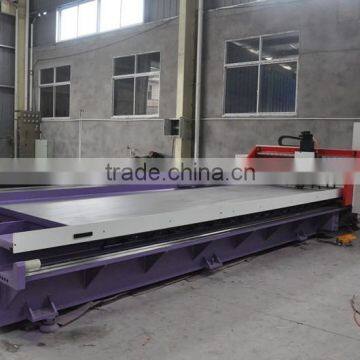

Stainless steel CNC metal v-groove cutting machine
1.CE,ISO.CQC
2.Digital display,NC,CNC
3.Fast delivery
4.High quality
Structure characteristics
This machine is composed of machine base, - beam, turret, CNC system, air pressure feeding system, compressed air blowing system etc., for the gantry-travelling structure.
Frame, beams are made of box type structure, the finite element optimization design, all steel welded prior to milling machine, fully guarantee that no gaps between the board and the board, welding after tempering furnace to eliminate the residual stress, rigidity, good precision, long service life.
The forward-backward knife rest (Y1 shaft) movement, up-down knife rest (Z shaft) movement, forward-backward end pressure (Y2 shaft) movement are controlled by CNC system, AC servo motor, ball screw drive. It has the advantages of high control accuracy, positioning precision.
By air pressure feeding system, according to the different thickness of workpiece surface and adaptive feed side pressure, on board the pollution and effectively guarantee of environment and temperature, is one of the effective measures to ensure the machining accuracy and repeatability and accuracy.
Compressed air blowing material and cooling system, which can prevent the cutting scrap scratch the surface of the workpiece, but also through the tool cooling, improve the service life of cutting tools.
Increase in the pressure feed system of machine at the same side of the many to blowing system, greatly ensure the waste collection.
Performances
Has a stable, solid, features convenient use etc..
Multi parameter - control system has, large memory capacity, convenient operation.
Shafts of control for the 4 shaft, the 3 shaft AC servo motor system, the control precision is high.
With 4 knife cutting structure, which can greatly improve the work efficiency, and can improve the machining quality of the products.
Using motion system of ball screw, linear guide, improve the machine precision and durability.
Pneumatic system
Pneumatic system design, compact structure, strong sealing performance, long service life.
Imported pneumatic components, good sealing performance, low noise, fast response, good environment adaptability.
Electrical control system
Electrical components in line with international standards, safety and reliability, strong anti-interference ability.
Electric control adopts programmable controller, frequency conversion governor, non-contact operation, safety and reliability, long service life.
The main components of world famous brand products.
Before the pressure foot, lateral foot
The presser foot by quenching treatment, not easy to deformation.
Workbench
Adaptive work table, after process and special process, greatly improving the service life, such as improper operation table uneven situation, the machine has the function of self repair table.
welcome to visit our factory!
