Help CenterAA121XL01 12.1 Inch Color TFT Lcd Module
Related Products
-
Medical Grade G151EVN01 V0 AUO PMVA15.1 Inch Full View Angle LcdNegotiableMOQ: 1 Piece -
AUO G057VN01 V2 5.7 Inch Lcd With High Brightness 700nits Rohs CompliantNegotiableMOQ: 1 Piece
-
CMI G070Y3-T01 7" Lcd Screen With ROHS for Medical EquipmentUS$ 60 - 80MOQ: 1 Piece
-
AUO 9 Inch 1280*720 Wide Temperature Lcd for Car Use C090EAN01.1US$ 150 - 300MOQ: 1 Piece
-
G121i1-L01 Lcd Display of 12.1 Inch With High ResolutionUS$ 1 - 100MOQ: 1 Piece
Specifications
12.1 inch LCD screen, AA121XL01sunlight readable
wide temperature
ultra high brightness
RoHS Compliant
1.Feature:
| 1) | wide view angle |
| 2) | sunlight readable |
| 3) | High brightness |
| 4) | backlight life more than 60k hours |
| 5) | Competitive prices; |
| 6) | Original guarantee; |
| 7) | Offer 12 months of warranty; |
| 8) | Original technology support; |
| 9) | RoHS Compliant |
2. Specification:
| Module number | AA121XL01 |
| Resolution | 1024x768 |
| Pixel pitch | 0.240 (H) x 0.240V) |
| Active Area | 245.76(H) x 184.32(V) |
| View angle | R/L/U/D 80/80/60/80(Deg) |
| Pixel Arrangement | RGB vertical stripe |
| Surface Treatment | Anti-glare, and hard-coating 3H |
| Electrical Interface | LVDS(1ch, 6/8-bit) |
| Brightness | 1000(cd/m2) |
| Contrast ratio | 600:1 |
| Outline dimension | 260.5 (H) x 203(V) x 9.7(D) mm |
| Backlight | LED |
| Response time | 6/19(ms) |
| Display mode | TN, Normally white, Transmissive |
| Operate temperature | -30-80(°C) |
| Storage temperature | -30-80(°C) |
| Display Colors | 262K/16.7M |
| Power Supply Voltage | 3.3V(Typ.) |
| Power Consumption | 9.7W(Typ.) |
| Backlight lifetime | 60k(Min.) |
3.The main model of Mitsubishi is as follows:
| AA043MA01 | AA084VF01 | AC121SA02 |
| AA050MG03 | AA084VG01 | AA121XL01 |
| AA050MG04 | AA084SB01 | AA121SU01 |
| AA050MG03-T1 | AA084SB11 | AC121SA01 |
| AA050MG03-T2 | AA084XB11 | AA121XK01 |
| AA050ME01 | AA084VL01 | AA121SM02 |
| AA050ME01-T1 | AA084XB01 | AA150XN01 |
| AA057QD01 | AA090MF01 | AA150XT01 |
| AA057VF02 | AA104VH02 | AA150XT11 |
| AA057VF12 | AA104SH02 | AC150XA01 |
| AA057VG02 | AA104XD02 | AA170EB01 |
| AA065VD01 | AA104XD12 | AA170EC01 |
| AA065VE01 | AA121SP03 | AA190EA01 |
4.The real photo:
According to customers' requests, we can match all accessories which inclusive of driver board, touch-screen, LED backlight & LVDS cables. TFT LCD panel size from 2.2 inch to 24 inch.

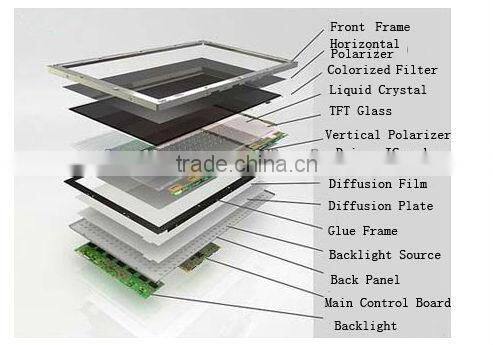

5.LCD Configuration:
| 1.What Brand do you have? |
| Re: AUO/Tianma/Innolux/CMI Mitsubishi |
| 2.What is your delivery method? |
| Re: DHL , UPS , FedEx ,TNT |
| 3.what’s your products condition? |
| Re: Brand New,A grade,Original Package. |
| 4. What is your guarantee time? |
| Re: 1 year |
| 5. What is delivery time? |
| Re: 2-7 days after payment is received. |
| 6. What payment term do you accept? |
| Re: T/T,PAYPAL etc. |
| 7. what’s the certification your products get? |
| Re: Rohs Compliant |
| 8. How long can you supply the industrial grade products? |
| Re: at least 3-5 years |
| 9.what’s your MOQ of your products? |
| Re: NO MOQ |
| 10.How to order |
Hangzhou LEEHON is established in 2009,we are one for the main LCD module suppliers in China,
specialized in providing clients with professional display solutions for 6 years, We focus on the high-end market, industrial application, Our products are widely used in military-industrial, telecommunications, metallurgy, traffic, electric power, railway, aviation, communication, finance, networking, medical, security, industrial field control monitoring equipment, numerical control equipment and other fields.
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service, we are young and full of passion!
*More products' info, welcome to visit our website
