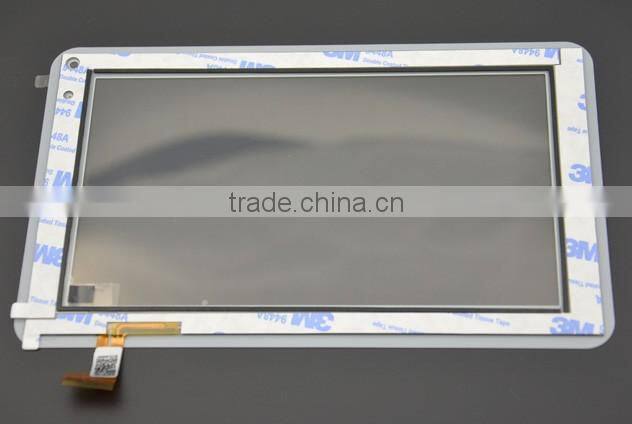

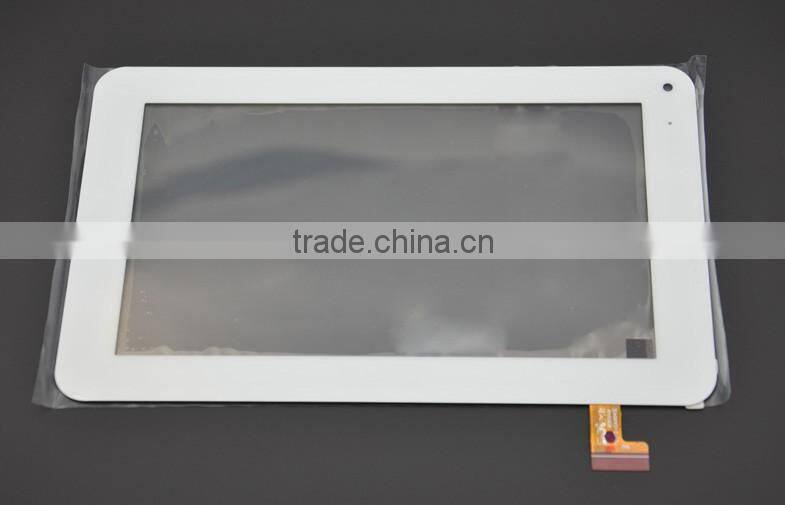

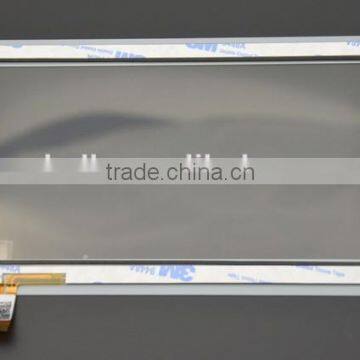

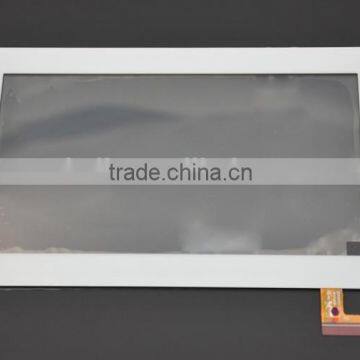

7 inch i2c capacitive touch panel with multi-point
suitable for 7 inch, 15:9 wide screen lcd
| Model | LH070-N4945A |
| name | capacitive touch panel |
| Size | 7'' |
| Resolution (pixel) | 800*480 |
| Surface hardness | 3H |
| Active area size | 154.43*86.22mm |
| View area SIZE | 154.43*86.22mm |
| outline size | 186.9*113.55mm |
| Optical Characteristics | Transmittance:≥87% |
| interface | I2C |
| Supply Voltage (v) | DC 2.8-3.3V |
| Insulation Resistance | > 20M DC25V |
| Working current | 12mA~14.5mA |
| Response time | ≤16ms |
| Cover PET | 0.25mm |
| ITO glass | 1.1mm |
| operating temperature | -20 to +70 °C |
| storage temperature | -30 to +85 °C |
| Certificate | RoHS Compliance |
other 7 inch capacitive touch panels for optional :
| CTP (capacitve touch panel ) | ||||||||
| Dimension | Resolution | P/N | structure | Paste part | thickness | Driver IC | Interface | application |
| 7.0" | WVGA (800*480) |
LHC-S070-05 | G+G | Double-sided adhesive | 1.1+0.175+0.55=1.8mm | FT5406 | I2C | LED |
| LHC-S070-06 | G+G | Double-sided adhesive | 3.0+0.175+0.55=3.75mm | FT5406 | I2C | LED | ||
| LHC-S070-08 | G+G | Double-sided adhesive | 0.7+0.175+0.55=1.4mm | FT5406 | I2C | LED | ||
| LHC-S070-09 | G+G | Double-sided adhesive | 0.7+0.175+0.55=1.4mm | FT5406 | I2C | LED | ||
LEEHON, provide you with professional display solution. Our main brands are AUO,Tianma,CHIMEI,Innolux,Mitsubishi and Panasonic,Etc. product size range is from 2.2’’ to 24’’, widely used in Auotmotive,Medical,Military, Intelligent transportation, finanicial, security and factory automation application,etc.
We have professional team with rich experience to work for you, our goal is to help you to solve all problems on LCD display.
Please contact us to get newest price:
Attn:Susan Wang
Skype: leehon806
QQ: 1217563193
Tel: 0086-571-86684288
MP:0086-13136181392
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are
We have professional support team to provide effective service, we are young and full of passion! in original package from original factory directly, and all the packages have labels and serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service with 24hours, we are young and full of passion!
More products' info, welcome to visit our website: !
