Engine Block Boring Machinemixer Concrete Interlock Brick Making Machine Price
Main Technical Specifications
Production per mould |
8pcs/mould (Hollow block: 400×200×200mm) |
42pcs/mould (Solid block: 240×115×51mm) | |
21pcs/mould (Solid block:240X115X90mm) | |
24pcs/mould (Holland brick: 200×100× 60-80mm) | |
Cycle time |
15-25 seconds(Depending on product type) |
Production per shift |
Hollow block (400×200×200mm): 14400-19200pcs |
Solid block (240×115×53mm): 77760-103680pcs | |
Interlocking block: 240×115×90mm): 31104-38880pcs | |
Holland brick (200×100×60-80mm): 40320-50400pcs. | |
Vibration frequency |
2940 rolls/minute or 50-60 Hz |
Vibrating force |
100kN |
Motors power |
48kw |
Volume of hoppers |
Main material: 900L |
Face material: 750L | |
Pallet size |
1200×870mm |
Gross weight |
9.0 T (without face mix device) |
12T (with face mix device) | |
Total power |
39.85kw |
Raw materials |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial waste. |
Applicable products |
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied fields |
Suitable for buildings, road paving, squares, gardens, landscaping, city constructions, etc. |
Advantages Of YIXIN used block machine for sale
:
1.the QT8-15 used block machine for sale has a shock-proof, heavy duty structure made form high density cost steel.
2.the fully automatic brick PLC conctrol system and a touch screen, the PLC control system have safe logic control and troubleshooting functions.
3.A hydraulic system on the multi-functional concrete block making machine is equipment with double high dynamic proportional valves that can automatically adjust the oil flow and oil pressure, the double-valve hydraulic system works with a 4 rod guiding system and the ling guide bushing quarantees the precise movement between the tamper head and the mould.

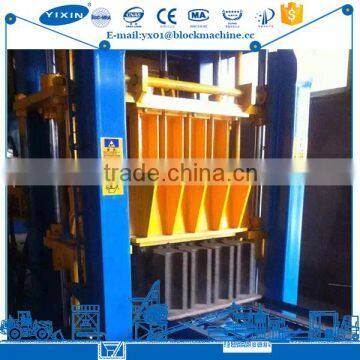

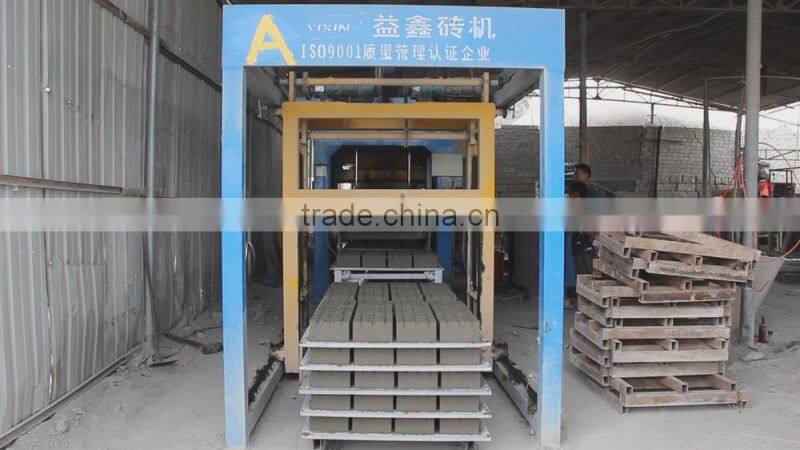

More Picture used block machine for sale

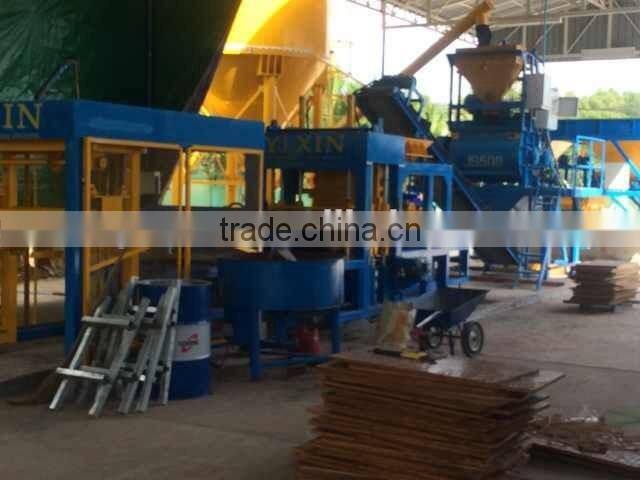

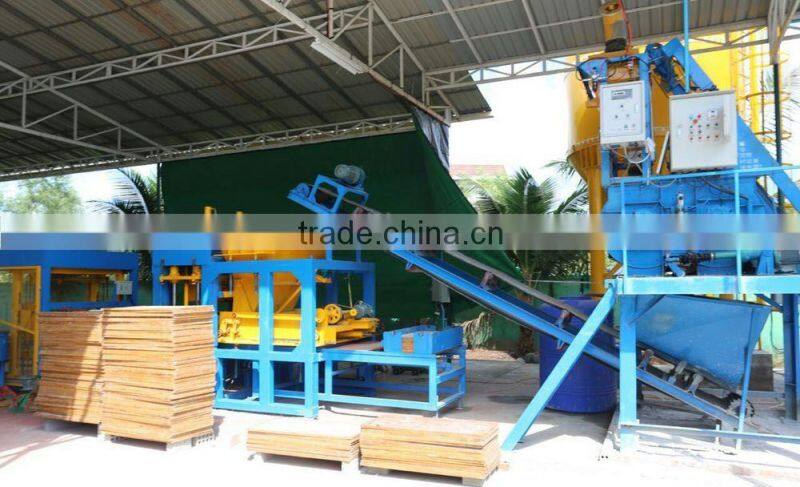

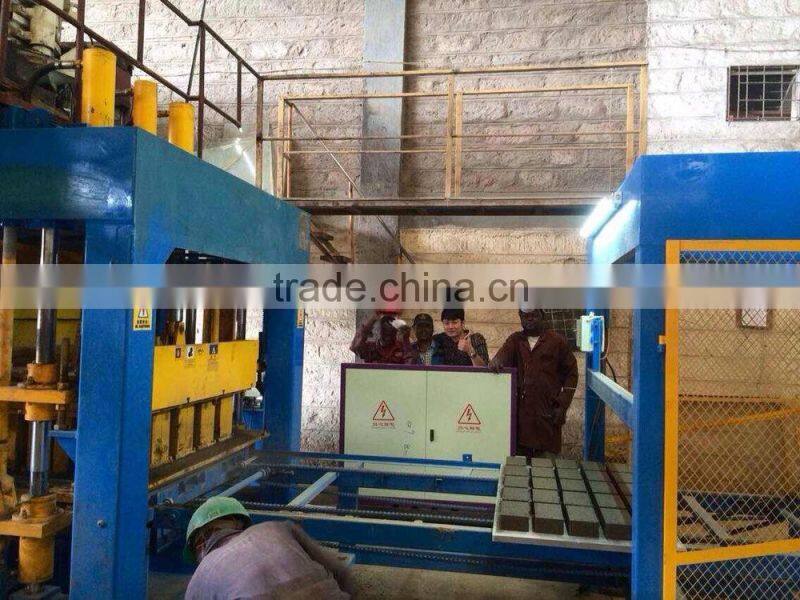

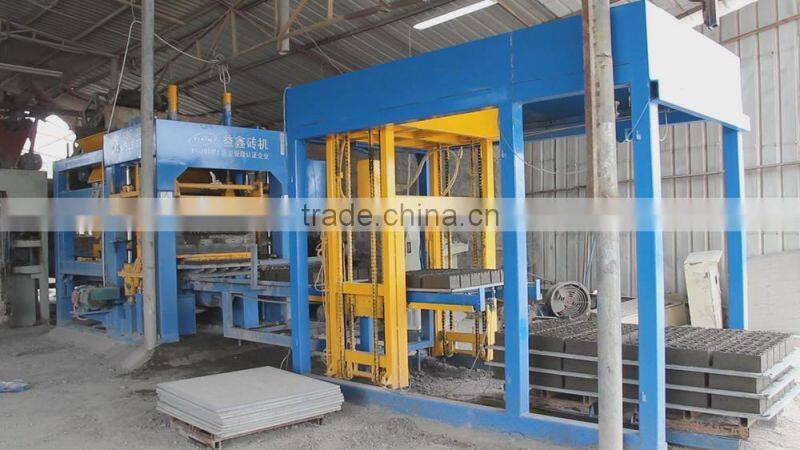

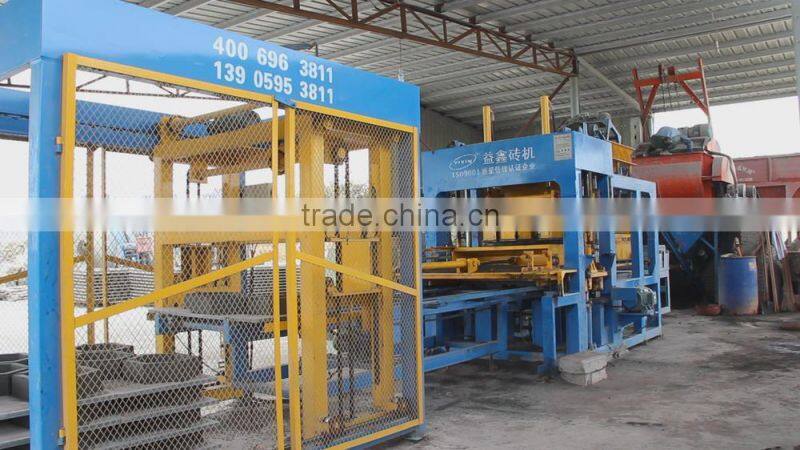

Customer's Plant: used block machine for sale
Shiping Case. used block machine for sale
Certification of used block machine for sale
