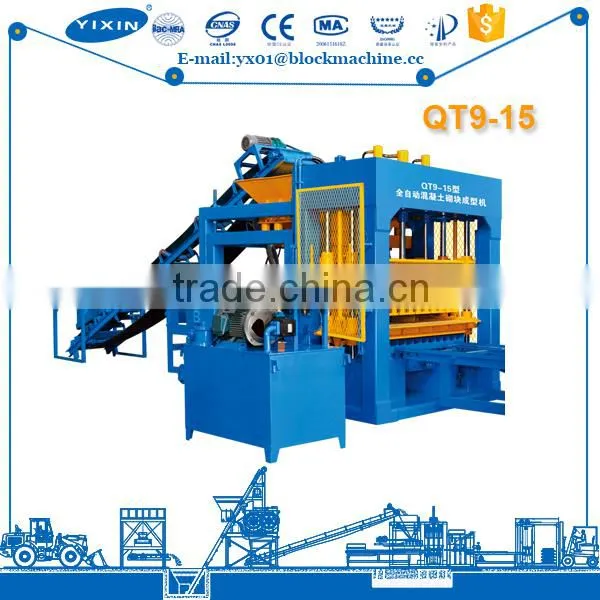

QT9-15 China Top Manufactory Competitive Price Building Block Machine Portable Small Brick Making Machine
1. Introduction of best selling paving brick machine hot sale in China concrete brick machine :
It is suitable to produce a variety of bricks including fixed standard brick, hollow block, solid brick, paver, interlock brick and other concrete bricks. Adopting sub-storage device and independent storage hopper, this machine can overcome the liquefaction of concrete defects in advance, and ensure the quality of the finial products. It can automatically operate the whole set, from material feeding to finish products output.
Model:QT9-15
Vibration Frequency:3800~4500r/min
Molding cycle:15-20s
Power:45.2KW
Weight: 14200KG
Pallet dimension: 1350(L)×720(W)×30(H)mm
Installed sizes:9800*4050*2800 (mm)
2. Requirement of Manual Compressed Earth Block Machine Small Manual Cement Interlock Brick Machine/ Manual Fly Ash Brick Making Machine
2.1. Area: Workshop area: 500sq.m,all factory area 2000-4000sq.m, the bigger, the better.
2.2. Workers : Four-five.
2.3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
2.4.hollow brick weight:
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
2.5. raw material consumption per day:200-340T
2.6. water consumption per day:3%-5% of raw material Weight.
3. Technical Data of China supplier best selling QT9-15 Manual Compressed Earth Block Machine Small Manual Cement Interlock Brick Machine/ Manual Fly Ash Brick Making Machine
Specification of Production |
Blocks/Mould |
Pcs/1 hour |
Pcs/8 hours |
Pcs/300days(1 shift) |
|
Blocks |
390x190x190mm |
4 |
800 |
64,00 |
1920,000 |
Porous Bricks |
240x115x90mm |
16 |
3,200 |
25,600 |
7680,000 |
Paving Bricks |
200x100x60mm |
18 |
3,600 |
28,800 |
8640,000 |
Standard Bricks |
240x115x53mm |
34 |
6,800 |
54,400 |
16,3200,000 |

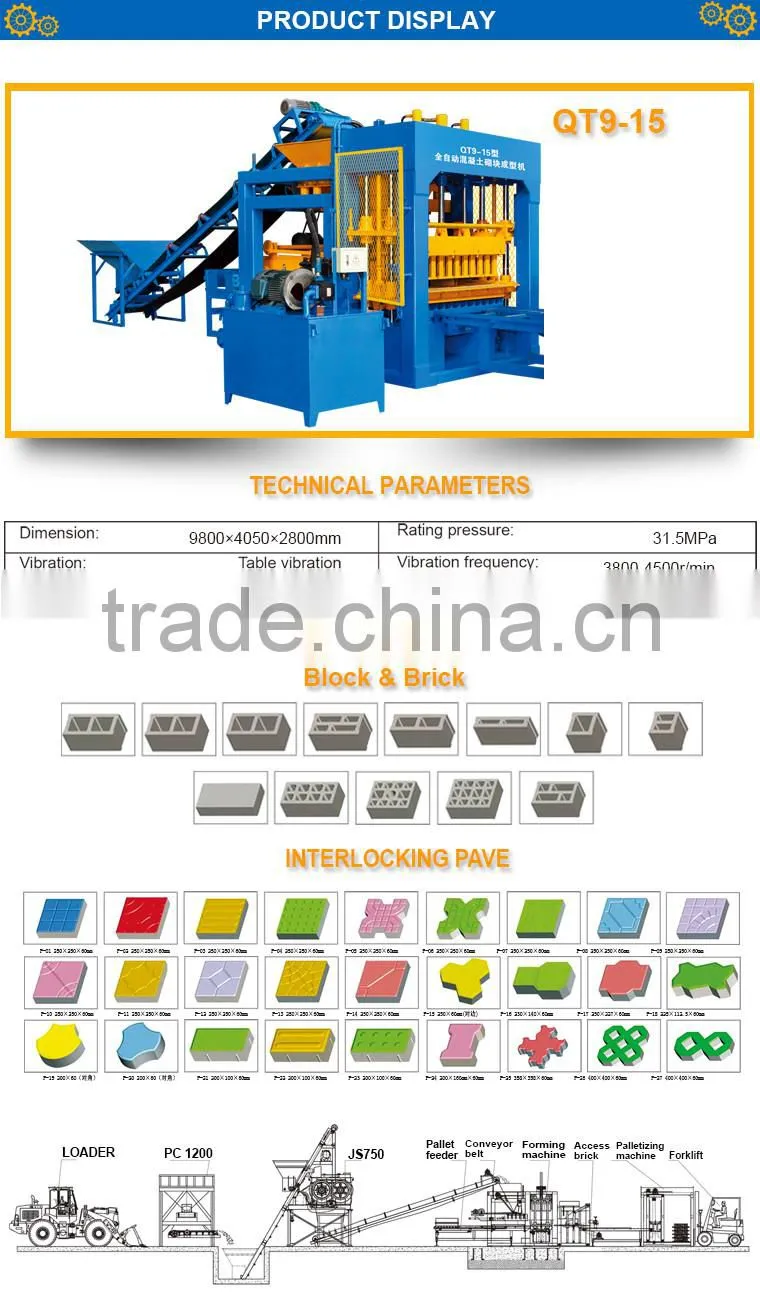

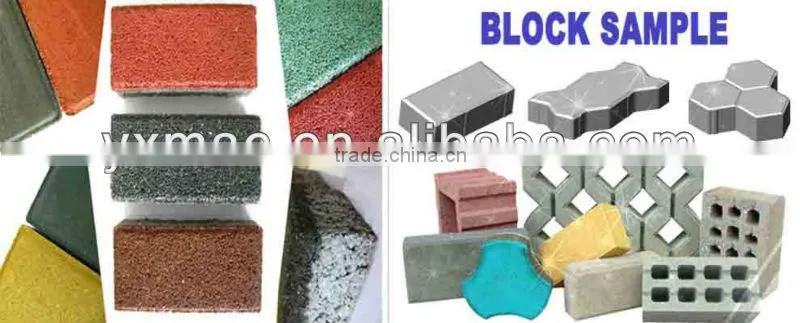

4. Block samples of China supplier best selling QT9-15 Manual Compressed Earth Block Machine Small Manual Cement Interlock Brick Machine/ Manual Fly Ash Brick Making Machine
5. Various models of China supplier Manual Compressed Earth Block Machine Small Manual Cement Interlock Brick Machine/ Manual Fly Ash Brick Making Machine
Note: block dimension can be customerized.

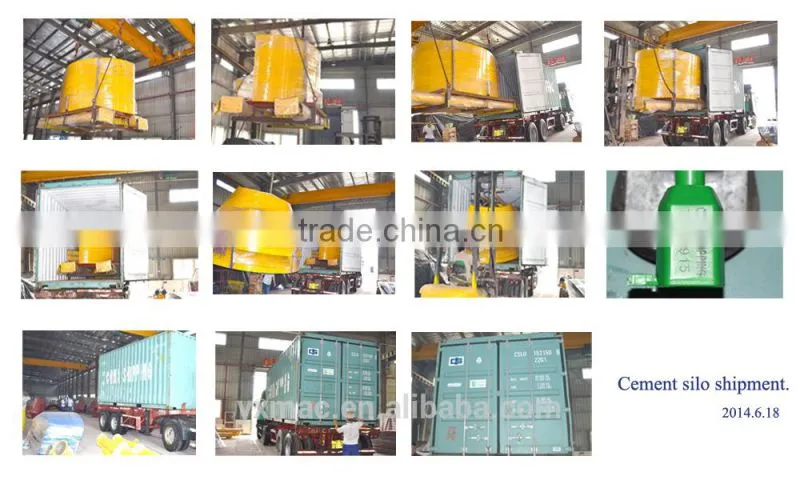

The QT9-15 concret block making machine will be loaded into the container for shipment.
Machinery can wrap PE film when necessary.Following is the loading for the parts from block making machine.
Quanzhou yixin machinery co., Ltd. Is a professional company specialized in manufacturing building materials machinery and equipment. Was founded in 1992, in the industry take the lead in certified by CNAB (including: block industry standard (BIS), European exports certification (CE), the international ISO9001 quality system certification) of the professional company, in the same machinery industry enjoys Good reputation. Quanzhou yixin machinery manufacturing co.,LTD.
Our company's certification.
Pre-sale:
♦ Analyze the customers' needs including the planned factory layout design and scale of operation;
♦ Making the fitting plan;
♦ Draw up the perfect solution to set up a factory.
Sales:
♦ Hollow block machine in China with turn-key project;
♦ Help to set up the factory;
♦ Provide service in installation and commissioning;
♦ Offer professional training for the operator and maintenance person.
After-sale:
♦ Assist customers to establish production craft formula;
♦ Consultation available all the times;
♦ Supply moulds and parts at any time.
Hot Line:
♣ If you need technical help, please call 0086-595-22963811 or after-sales service E-mail for foreign customers:yx03@blockmachinecc. .
♣ If you need more details, please visit our official website:
