China Top Manufactory Competitive Price Best Selling Products Concrete Block Machine For Sale
- 200 Set / Sets per Month
- XIAMEN Port
- T/T L/C D/P D/A PayPal
Product Details
Condition: | New | Type: | Paving Block Making Machine | Brick Raw Material: | Fly Ash |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 15000-50000 Pieces/day | Place of Origin: | Fujian, China | Brand Name: | Yixin Machinery |
Model Number: | QT6-15 | Voltage: | 220V/380V | Power: | 31.4KW |
Dimension(L*W*H): | 9450*3300*2700mm | Certification: | CE/SGS/ISO9001:2000 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

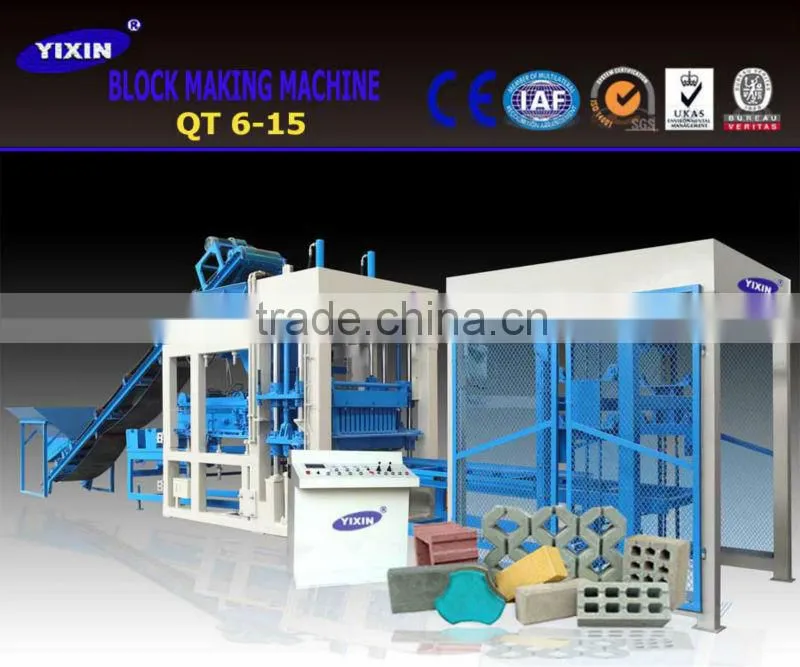

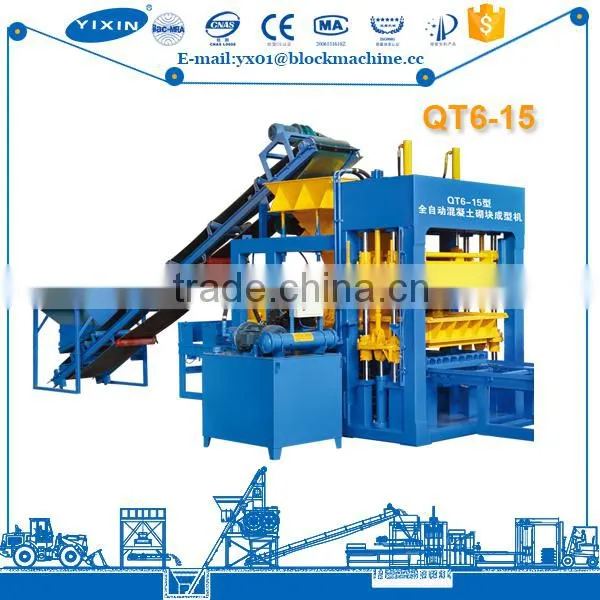

This QT6 automatic block making machine ,as the name shows, can make 6 blocks in dimension of 400*200*200mm with each mold .it is capable of making 9600 blocks or 200 to 120 cubic meters of blocks for one day 8 working hours. In addition this product is able to make a variety of blocks or bricks with the variable molds.
Main Technical Specification
6pcs/Pallet(BLOCK 400*200*200mm) 1200pcs/hr.
Production 8 hrs. 30pcs/Pallet(SOLID 240*115*53mm) 6000 pcs/hr.
Production per Shift 21pcs/pallet(HOLLAND BRICK 200*100*60mm)4200pcs/hr.
15pcs/pallet(RIPPLE SHAPE225*112.5*60mm) 3000pcs/hr.
Cycle Time 15-20 seconds
Vibrating speed 0-6,000rpm (rolls per minute)
Vibrating Force 68KN
Motors Power 31.4KW
Machine Dimensions 9450*3300*2700mm
Pallet Size 880*680*20mm
Gross Weight about 8.5T
Raw Materials crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, g ravel, peril, and other industrial wastes

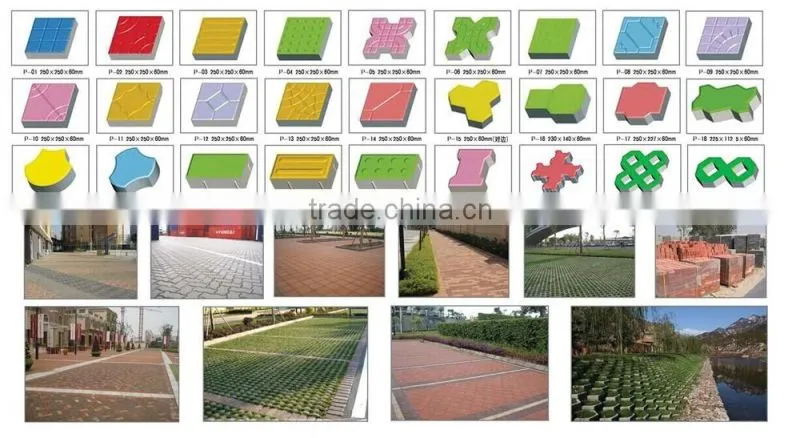

Applied Products concrete blocks .,solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields widely used in buildings, road pavings, squares, gardens, landscaping, city constructing ,etc.
Note; All the production parameters are subject to change, without prior notice.
Main Features
1. This automatic block making machine is installed with the airbag cylinder that is used to absorb the vibration,.
2. Designed with the integrated platform for vibrating and molding, the machine functions light weight and high vibrating efficiency.
3. There are tow motors driving the vibrator through the transmission shaft without the inconsistency of double motors, facilitating the power conservation.
4. The double lined aero vibration resistant system is applied to alleviate the vibrating impact on the mechanical parts. Therefore, this product is able to work fore a longer time with noise reducti.
RAW MATERIAL

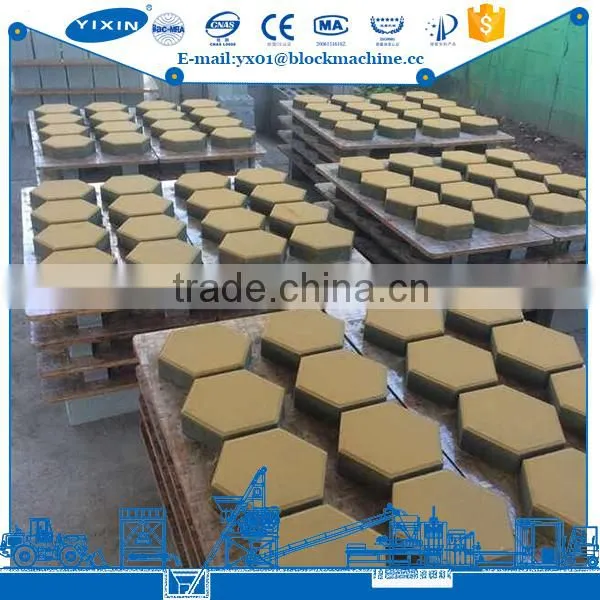

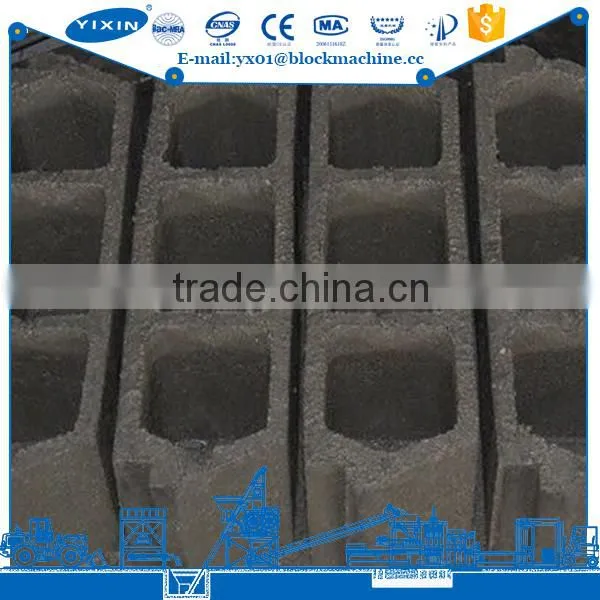

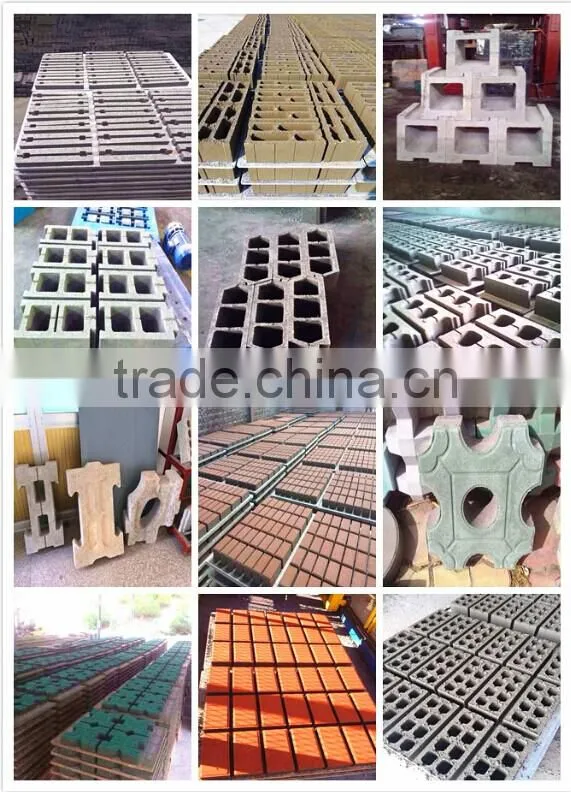

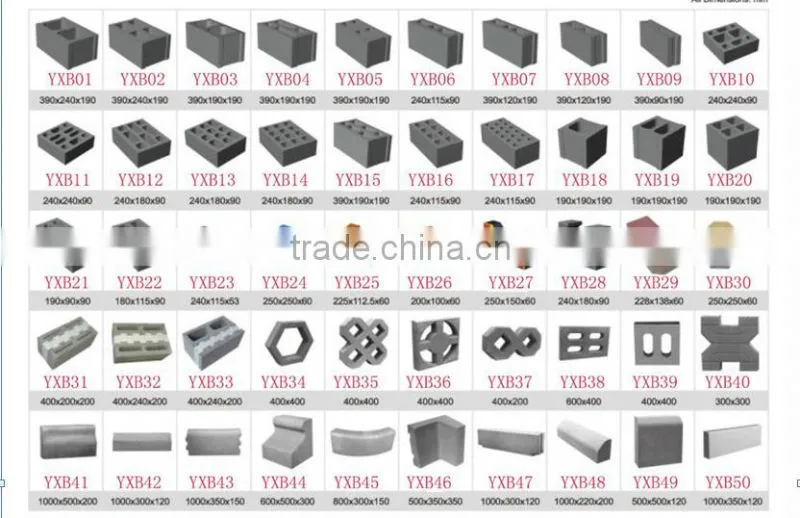

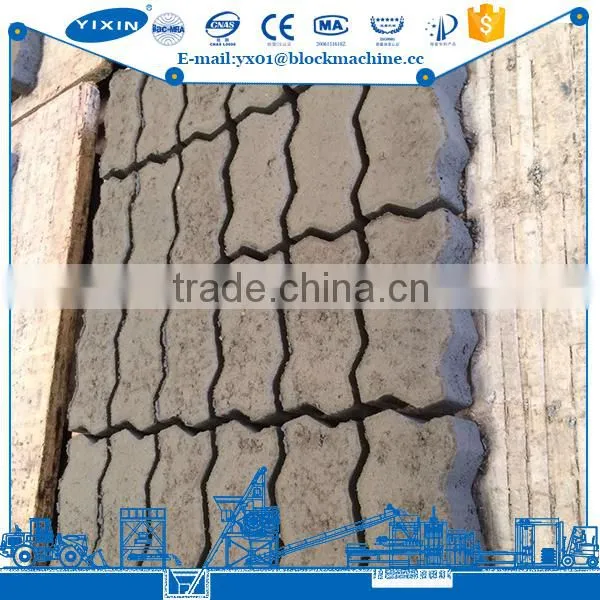

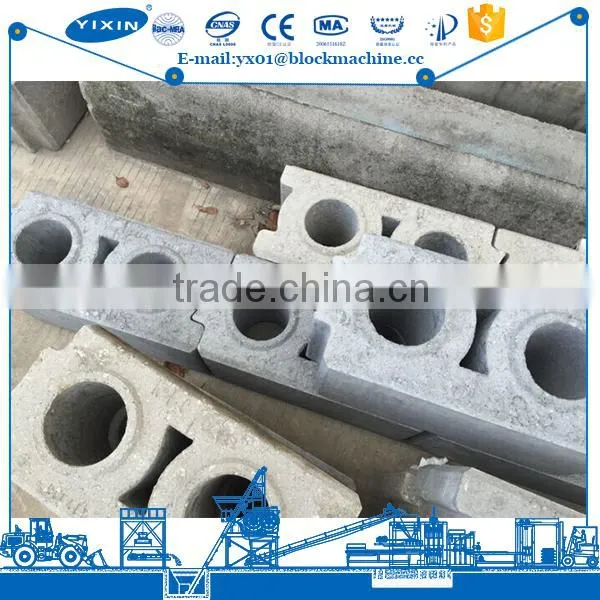

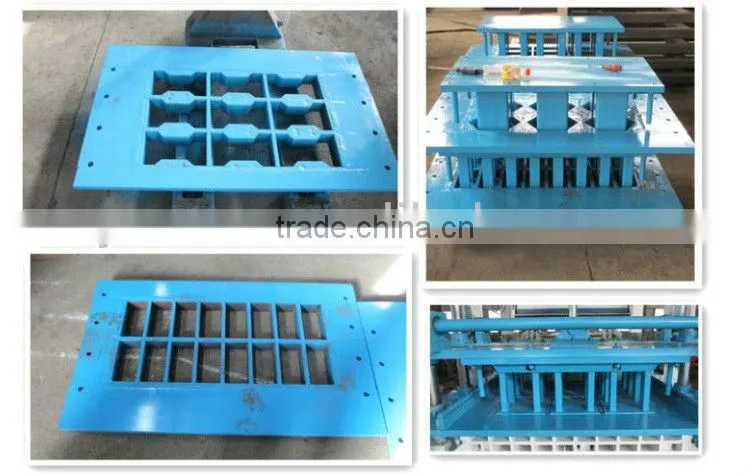

By replacing different mold can produce any block & paver shape
CERTIFICATION
