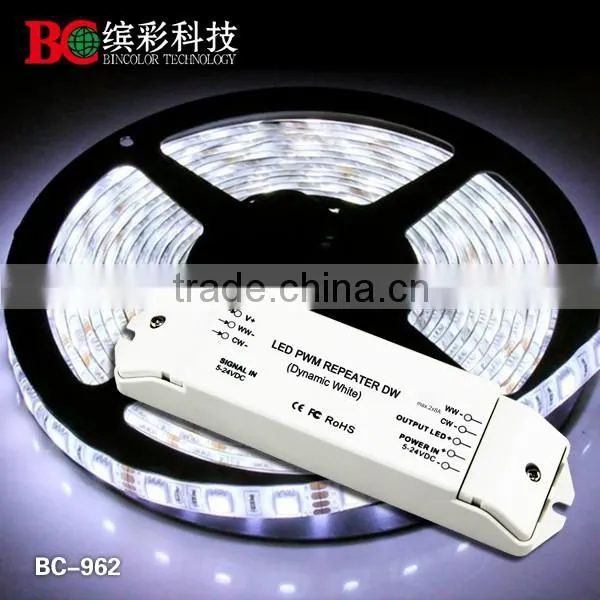

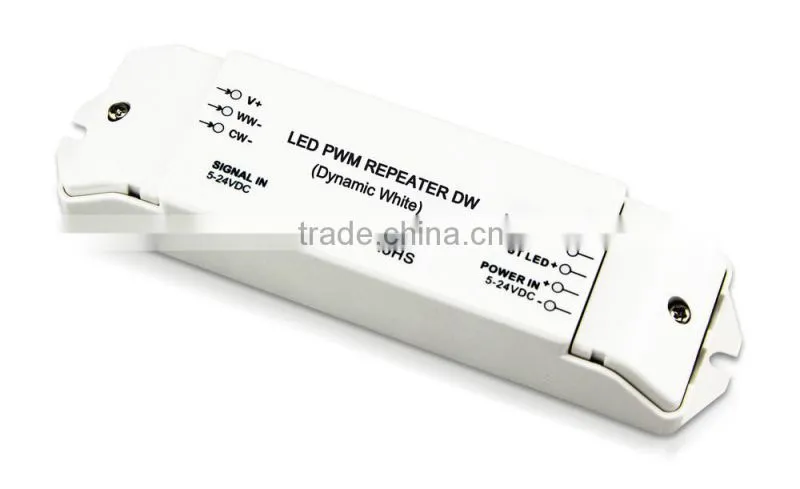

DC5V-24V 2 channel high power led RGB amplifier led power repeater

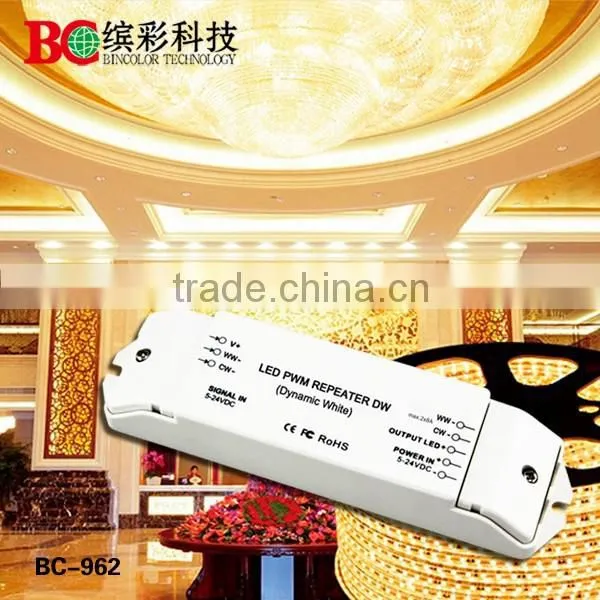

BC-962 LED Power Repeater is suitable for all of our company's power-output style controllers’ power expansion, it accepts PWM control, unlimited quantity of power repeater to be connected theoretically. Also, the power repeater of constant voltage model and constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.
Specification:
Model |
BC-962 |
Input voltage |
DC5V-DC24V |
Max Load Current |
8A/CH×2 |
Output signal |
Constant voltage PWM |
Max output power |
80W(5V)192W(12V)384W(24V) |
Product Dimension |
L175×W44×H30(mm) |
Package Size |
L178×W48×H35(mm) |
Gross Weight |
120g |
Feature:
1. Common anode input and output.
2. Sustain high frequency common anode PWM input signal.
3. Work with RGB controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.
4. Power loss memory function.
5. 3000V optoelectronic isolation.

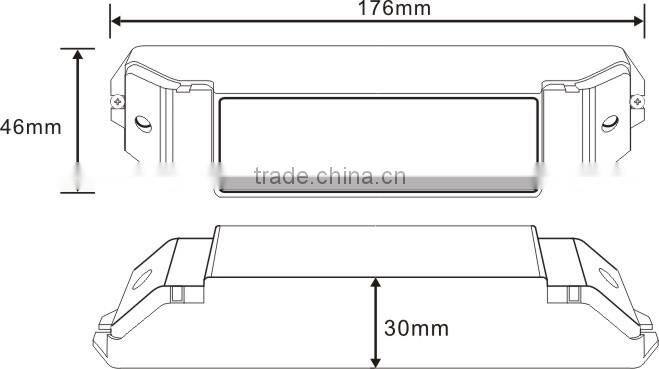

Dimension:

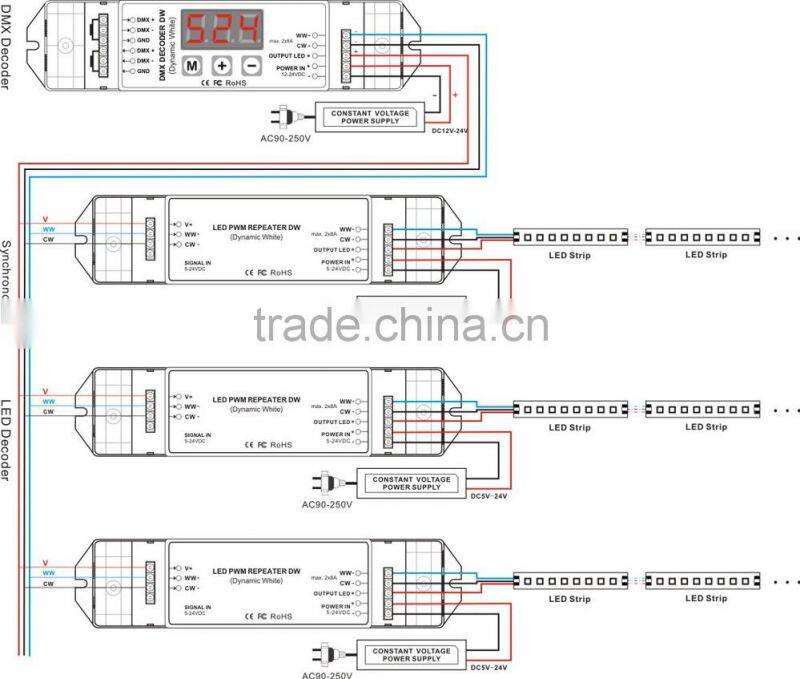

Wiring diagram:
After inspection the goods are packed in white inner box and then carefully packed in cartons.
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price , well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
