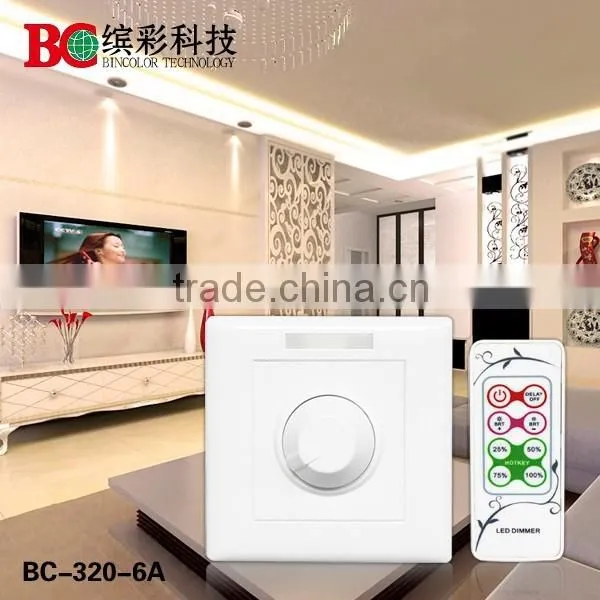

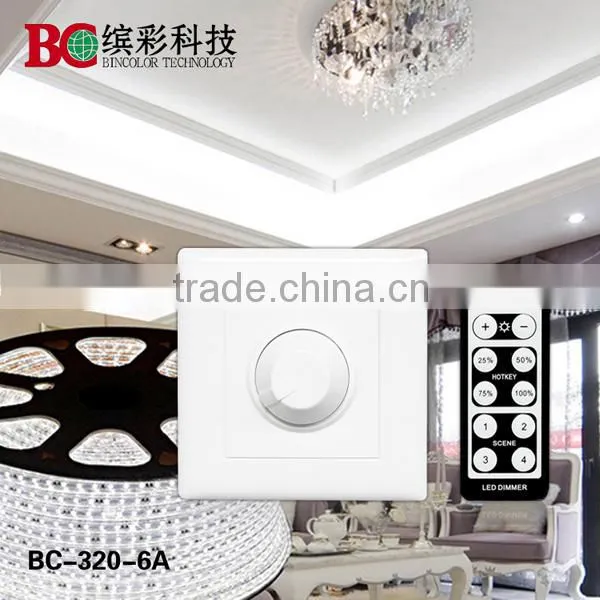

DC12V led dimmer constant voltage 86 socket pwm dimmer switch with IR remote
Feature :
- Standard 86-style socket, easy to install.
- Infinite knob style dimming and wireless IR remote dimming, easy to operate.
- Real 0~100% brightness adjust, 4096 scale levels. Comfort to human eye visual characteristic. Lamplight soft and stable, without flickers,welcome to compare.
- Delay OFF button, fluorescent indicator, users friendly.25%, 50%, 75%, 100%, 4 brightness shortcuts.
- Automatically adapt to DC12-48V working voltage.
- Can be equipped with power repeater to expand power.
- Power loss memory function.
Specification
|
Model
|
BC-320-6A |
|
Input voltage
|
DC12V-DC48V |
|
Max load current
|
6 A |
|
Max output power
|
72w (12v) 144w(24v) 288w(48v) |
|
Output signal
|
constant voltage pwm |
|
Dimming range
|
0-100% |
|
Scale level
|
4096 level |
BC-320-6A it can meet different brightness requirements at different time with the dimmer,
also it can extend the LED life tenure and save energy, suitable to dim hi-power or low-
power LED lamps.

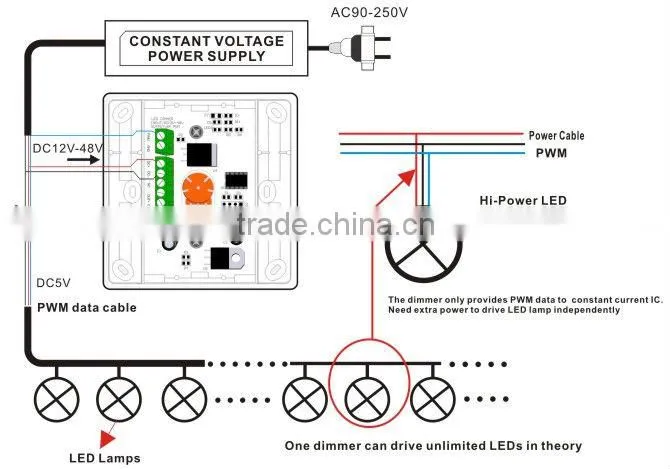

Conjunction diagram

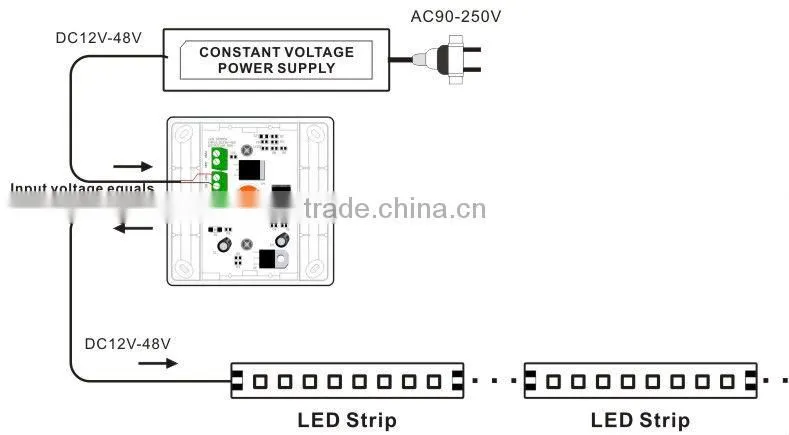

1. Connect with led strip
|
Shipping |
1.EMS/DHL/FEDEX/UPS and so on
2.EXPRESS: around 5-7 working days to arrived
|
Certification |
|
Packing |
After inspection the goods are packed in inner box and then carefully packed in cartons.
|
Services |
- Professional advice according to your needs.
- Instant response to your inquiries.
- Short lead-time, quick delivery.
- Three years warranty for all of our products.
- Samples orders, OEM/ODM orders are also welcomed
|
