DC12-24V 8A*3Channel Single color led dimmer RF remote touch control

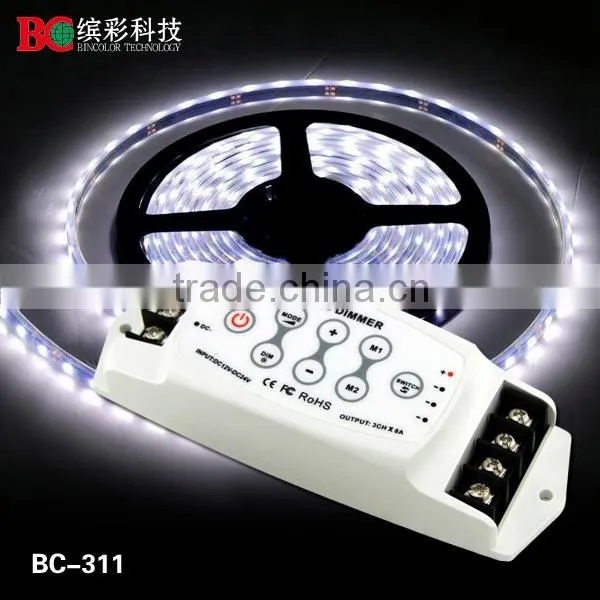

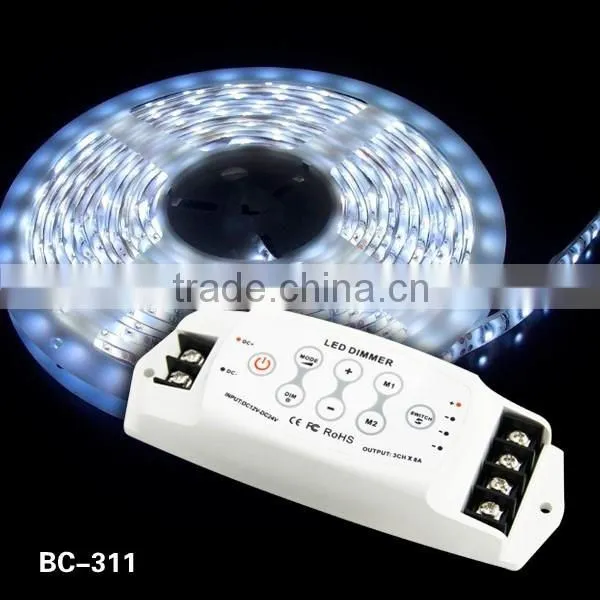

Product picture:
Brief Introduction:
Single color LED controllers model No. BC-311RF ( with RF remote controller ) and BC-311 ( without remote control ) are dedicated to control single color changes.
Product Specification:
Model |
BC-311 |
BC-311RF |
Max current load |
8A/CH×3 |
8A/CH×3 |
Max output power |
120W(5V)/290W(12V)/580W(24V) |
290W(12V)/580W(24V) |
Scale level |
4096 levels |
4096 levels |

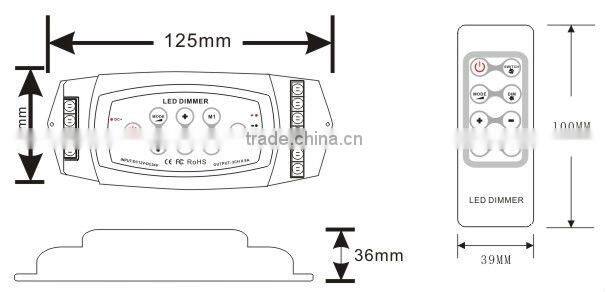

Dimension |
L165×W56×H36(mm) |
L165×W56×H36(mm) |
Package Size |
L170×W60×H40(mm) |
L170×W60×H40(mm) |
Weight (G.W) |
160g |
190g |
Remote Distance |
N/A |
Up to 100M. |

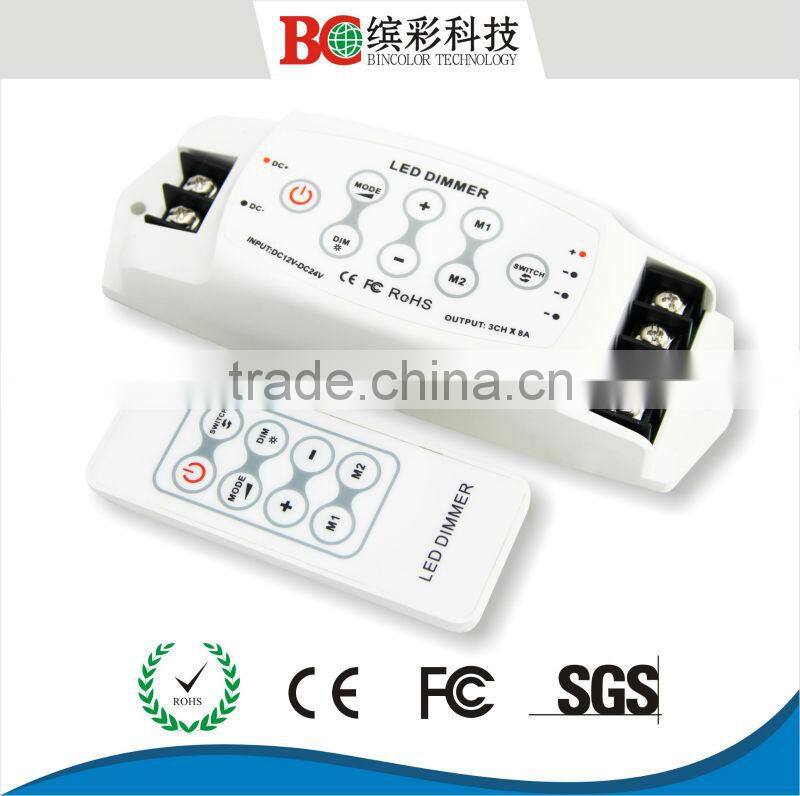

Diagram of the remote and receiver:
Function of the buttons on the receiver:
Product Features:
1. Automatically adapt to operation voltage 12V~24VDC.
2. 8A/CH*3channels (24A Max.)
3. PWM smooth color changing without any flicker.
4. 3 built-in light changing programs and you can adjust the speed of each program.
5. 2 DIY modes allow user to create and save their personalized light changing modes.
6. Can be used stand alone or optionally with RF remote control.
7. Can work with our LED data amplifiers if you need to control longer length and to synchronize the light changing.
Typical Wiring Schematics:

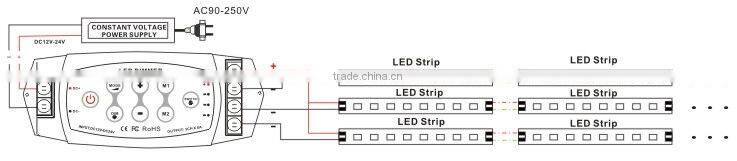

1. Single color LED controller BC-311RF connecting to single color LED strips.
FAQ1: What length of LED strip can this controller drive?
A1: It depends on the type of LED strip you use. Take 12V 5050 LED 60/M for example, the power of each meter is 14.4W.
This LED controller's output power at each channel is: 12V*8A=96W. Then, 96/14.4=6M. So it can drive 6 meters of LED strip at each channel. If you need to control longer LED strip, the amplifier will be the best solution. Please contact us and let us work it out for your project.

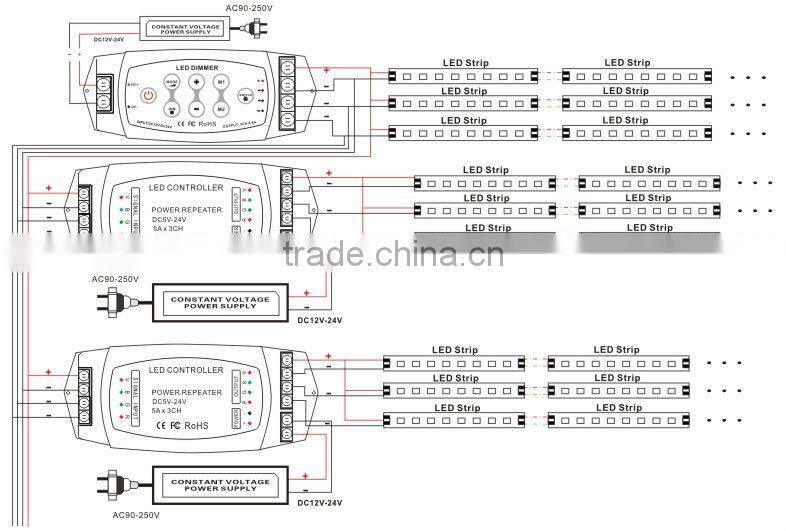

2. Single color LED controller BC-311RF, amplifer BC-960 and single color LED strips
