24v Dc Charging 100-150amps Generator

Name: 24v Dc Charging 100-150amps Generator
Brand: WERNER
Availability: InStock

FOB Price

US$ 1,200 - 2,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

DC generator
GENSET MODEL	Open type model	DW60A
	Soundproof model	DW60A/S
Continuous output(kw/hp)		5KW/6.7
DC Voltage(V)		24V
DIESEL ENGINE MODEL		188FB
Engine Characters		1-cylinder ,vertical 4-stroke,air-cooled,diesel
Rated power/speed (KW/rpm)		8.3/3000
Displacement(cc)		456
Compression ratio		20.5
Max. torque (N.M)		52/2000-2100
Lubricating system		Pressure splashed
Starting system		Eleoctric start
Direction of rotation		Counterclockwise viewed from PTO side
Fuel consumption rate (g/kw.h)Max		295
Lube oil brand		SAE10W-30 or 15W-40
Lube oil capacity (L)		1.65

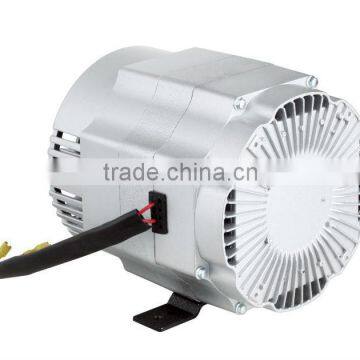

ALTERNATOR MODEL		W60A
Continuous output(kw)		5
Power Efficiency		≥90%
Voltage Regulation		24V+ 5% adjustment
Wave form		DC Wave
Max Current (A)		300
Ripple voltage		≤3mV
Dimension(mmmmmm) silent		800530700

Design and invent patent

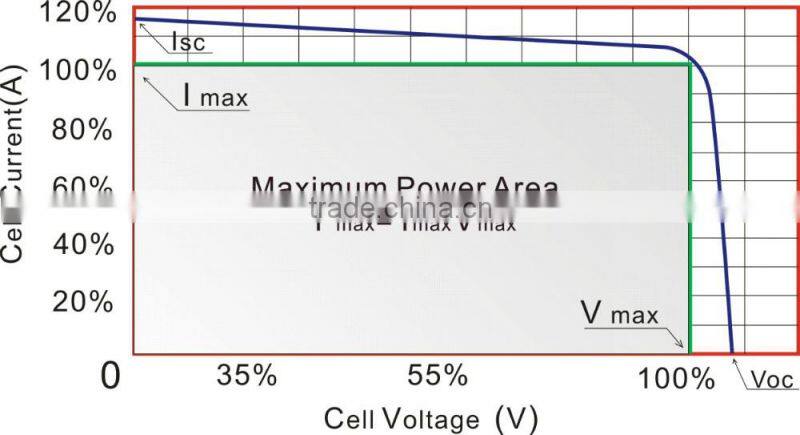

Working curve:
