Home > Products > DC Generator > High quality DC generator for telecom

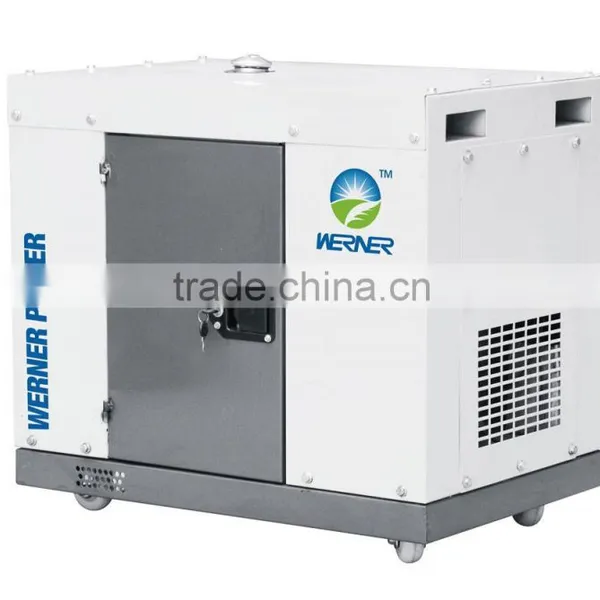

High quality DC generator for telecom
USD $6,000 - $8,000
/ Set
1 Set(Min.Order)
- 800 Set / Sets per Month
- Fuzhou
- T/T
You May Like
Product Details
Place of Origin: | Fujian, China | Brand Name: | WERNER | Model Number: | DW90ADC |
Output Type: | DC | Speed: | 3000RPM | Frequency: | DC |
Rated Power: | 10KW | Rated Voltage: | 48V-57V | Rated Current: | 208A |
Product Description
DC charging generator powered by HL292FE | ||
GENSET MODEL | Open type model | DW90ADC |
Soundproof model | DW90ADC/S | |
Continuous output(kw) | 10 | |
DC Voltage(V) | 48-57 | |
DIESEL ENGINE MODEL | HL292FE | |
Engine Characters | Two-cylinder ,vertical 4-stroke,air-cooled,diesel | |
Rated power/speed (KW/rpm) | 13.5/3000 | |
14.5/3600 | ||
Bore(mm)xStroke(mm) | 92x75 | |
Displacement(cc) | 997 | |
Compression ratio | 20.5 | |
Max. torque (N.M) | 52/2000-2100 | |
Lubricating system | Pressure splashed | |
Cooling system | Forced air-cooled | |
Direction of rotation | Counterclockwise viewed from PTO side | |
Fuel consumption rate (g/kw.h) Min/Max | 247/ 265 | |
Lube oil brand | SAE10W-30 or 15W-40 | |
Lube oil capacity (L) | 2.6 | |
Starting motor | 12V-1.7KW | |
Charging system | 13V-10A | |
Accumulator capacity (V.AH) | Above 12V,45Ah | |

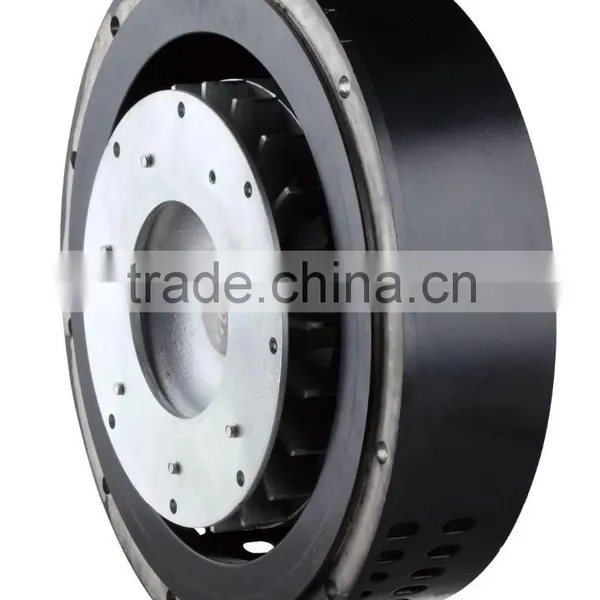

ALTERNATOR MODEL | W90AD | |
Continuous output(kw) | 12 | |
Power Efficiency | ≥90% | |
Voltage Regulation | 48V-57V | |
Wave form | DC Wave | |
Max Current (A) | 208 | |
Ripple voltage | ≤3mV | |
Dimension(mm*mm*mm) | 700*500*820/1100*750*800 | |
Standard features | ||
Standard features | Voltage meter, Current meter, Oil pressure meter, temperature meter | |
Automatic outage protection when there is AC component output | ||
High temperature alarm outage protection | ||
Low fuel level warning | ||
Automatic current adjustment when rectifier module radiator temperature anomaly | ||
