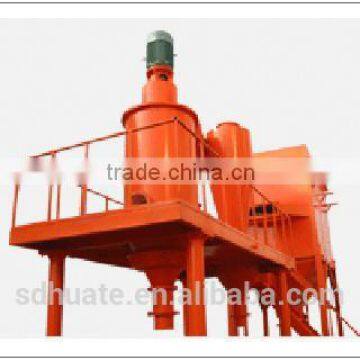

Series HF pneumatic classifier
The claasifing device is composed of pneumatic classifier, cyclone, collector , induced draft fan,comtrol cabinet etc . Equiped with second air inlet and vertical impeller rotor ,the materials are fed in visa the bottem roller under the force generated from the induced draft fan and then mixed with first input air to disperse particle and then brought to classifying zone .
Owing to the high rotary speed of classifying rotor, the particles are under the centrifugal force produced by the rotor and centripetal force generated from induced draft fan . When the centrifugal force is stronger than then centripetal force , the coarse particles fall down along inside roller. the second air is induced to sieve the coarse materials and seperate the fine powder that stick on or mixed with coarse . after the coarse material is discharged from classifier . the over -milled powder are collected by the cyclone and pulse collector .
Characteristics:
1. With special design for classifying structure and its high classifying precision, it can block big granule strictly.
2. To get the required product, you can adjust the classifying wheels rotary speed and air inlet. It features with large classifying scope.
3. Vertical single rotor with low speed, steady run, high efficiency and capacity.
4. With multi-series structure, it can get different size products to meet requirements.

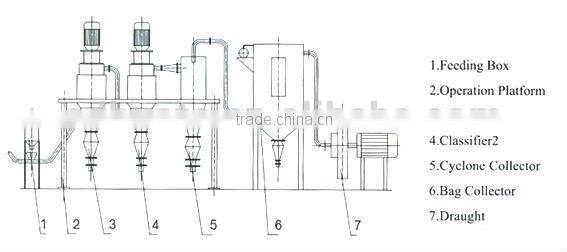

Technological process chart:
1. Hopper 2. Operation Platform 3. Classifier 4. Cyclone Collector 5. Pulse Collector
6. High Pressure Induced Draft Fan 7. Control Cabinet
| Series HF Pneumatic Classifier Technical Parameter | ||||
| model | Capacity(KG) | Classifying Efficiency(%) | product size(um) | power (KW) |
| HF010 | 10-50 | 70-90% | D97=5-50 | 7 |
| HF020 | 50-350 | 15-19 | ||
| HF050 | 100-800 | 25-30 | ||
| HF100 | 300-1500 | 41-48 | ||
| HF200 | 500-4000 | 63-73 | ||
| HF400 | 2000-8000 | 97-120 | ||
| HF500 | 3000-12000 | 140-169 | ||
wooden cases/steel frame,or according to the customer's requirements. Fumigation packaging!
Compang name:Shandong Huate Magnet Technology Co.,Ltd.
Address: Huate Road,Linqu Econonmic Development Area, Weifang City, Shandong Province, China.
Tel:0086-536-3391868 Contact person: Ms.Anna Wu
