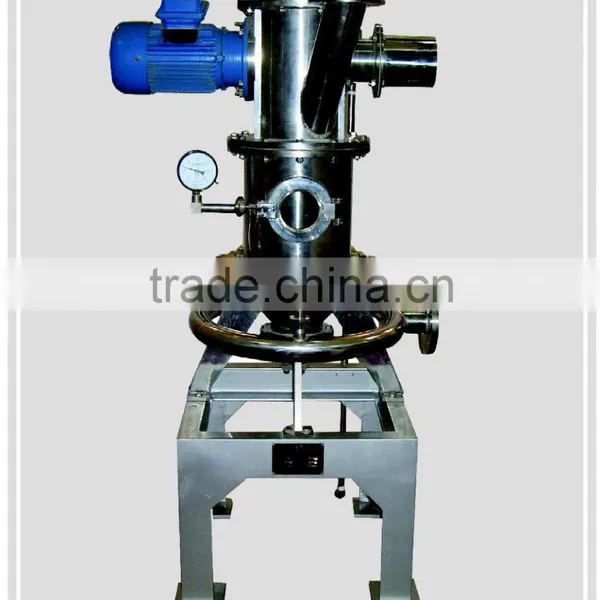

Micronizer air jet mill
Working Principle:

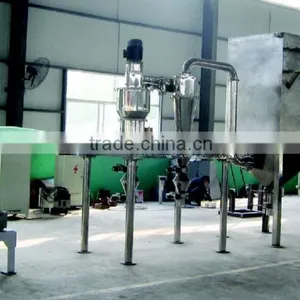

HSW series micronizer air jet mill, with cyclone separator, dust collector and draft fan to constitute a grinding system. Compressed air after being dried is injected into grinding chamber quickly by the injection of valves. At connection points of big amount of high-pressure air currents, feed materials are collided, rubbed and sheared repeatedly to powders. The grinded materials go into classifying chamber with uprising air flow, under the condition of lashing forces of draught. Under strong centrifugal forces of high-speed rotating turbo wheels, coarse and fine materials are separated. Fine materials in line with size requirements go into cyclone separator and dust collector through classifying wheels, while coarse materials fall down to grinding chamber to be grinded continuously.
Application:
Widely used for chemical, minerals, metallurgy, abrasive, ceramics, fire-proof material, medicines, pesticides, food, health supplies, and new materials industries. Micro-jet mill is the necessary tool for the laboratory of research institution.
Features:
1. Suitable for materials with Mush hardness <9, especially, super-hard, super-pure and high extra-value materials.
2. Horizontal classifying installation. Particle size: D97:2-150um, adjustable, good shape and narrow size distribution.
3. Low temperature, no medium rushing, especially for heat-sensitive, low-melting point, sugar-containing and volatilized materials.
4. Feed materials impact by themselves, different from others which use hammer and razor blades. Wear-resistance and high purity.
5. To connect multi-grades classifiers to produce different size distributions.
6. Easy to be dismantled, smooth inside wall.
7. Crushing in tight-air, no dusts, low noise and no pollution.
8. Programmable control system, easy to operate.
Technical specifications:
Model No. |
HSW03 |
HSW06 |
HSW10 |
HSW20 |
HSW40 |
Feed Size (mm) |
< 3 |
< 3 |
< 3 |
< 3 |
< 3 |
Product Size (d97:um) |
2~ 45 |
2~ 45 |
2~ 45 |
3~ 45 |
3~ 45 |
Capacity (kg/h) |
2~ 30 |
30~200 |
50~500 |
100~1000 |
200~2500 |
Air Consumption (m³/min) |
3 |
6 |
10 |
20 |
40 |
Air Pressure (MPa) |
0.7~ 1.0 |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
0.7~1.0 |
General Power (kW) |
21.8 |
42.5 |
85 |
147 |
282 |
For packaging and shipping, we offer wooden cases, standard container or special purpose container according to customers' requirements.
For international trade terms, EXW, FOB, CIF are avaliable, and every sea port in China (mainland) is OK!
Our company offers scientific research, engineering design, manufacture of equipment and after sales service. Our professional staff can help you do the mineral beneficiation experiment for free with your sample ore,and help you design the best processing line to maximize your profits, our professional engineers are available overseas for equipment installation, commissioning and after sales support, even operation training for your native workers by the way. We are committed to building long-term customer cooperation relationship.

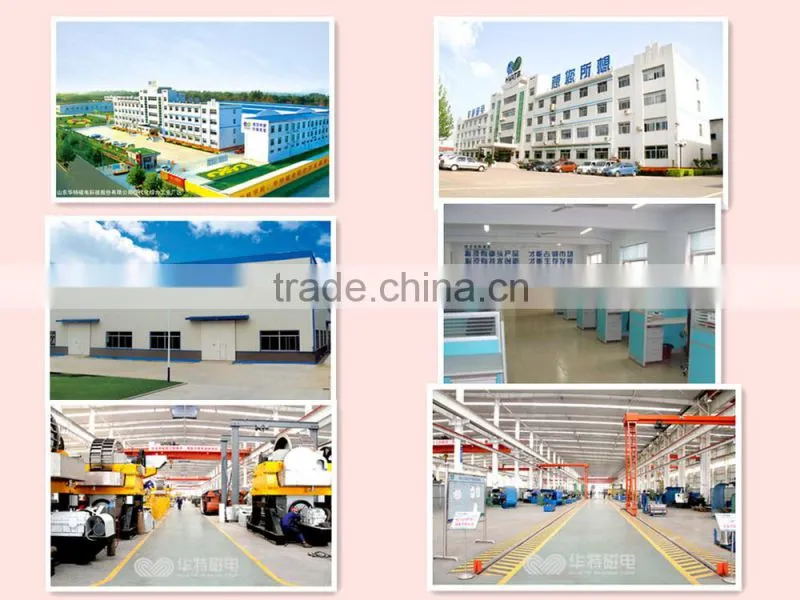

Shandong Huate Magnet Technology Co., Ltd was founded in 1993, with registration capital of 64.75 million RMB. It has three production bases, covering an area of 260,000 square meters, and employs more than 900 staffs. With fixed assets of 350 million RMB, this company achieves the annual productivity of more than 500 million RMB.
Huate, as Chinese famous trade mark, is a national key enterprise specializing in superconducting equipment, magnetic separator and iron separator, the standing director unit of Chinese heavy machinery industry association, national innovative pilot enterprise, national key high-tech enterprise, the technological cooperation enterprise of Chinese academy of science. This company has a post-doctoral scientific research workstation, a workstation of comprehensive academicians, a superconducting magnet engineering research center of China machinery industry, provincial magnet technology and engineering center and provincial key laboratory of magnetic application technologies and equipment. Huate is the largest magnetic separation equipment manufacturing base in China, which specializes in the scientific R&D, engineering design, production, installation, commissioning and services of the magnetic application equipment.
Specializing in manufacturing iron separator, magnetic separator, superconducting magnetic equipment, high gradient magnetic separator, mining processing line, magnetic stirrer, non-ferrous metal separation equipment, non-metallic processing equipment, ocean & lake ecological equipment and so on more than nine categories eighty series and more than seven hundred models. Our service scope involves coal, mine, electricity, building material, metallurgy, port, environmental protection and so on more than 10 fields. With more than 15,000 customers, our equipment are exported to USA, Germany, Japan, Italy, Norway, India, Pakistan and other countries.
Quality is our life. Innovation is our power. In order to guarantee the quality of products and improve the environment, Huate takes the lead to pass through the GB/T19001-ISO9001:2000 quality management system verification, ISO14001-2004 environmental management system verification and GB/T28001-2001 Occupational Health and Safety Management System verification. Huate has fully controlled the entire process of manufacturing and development of 9 categories of products, and has formed a comprehensive, complete set of product R&D, manufacturing, test base.
1. Which kind of material are you going to deal with?
2. What is the particle size of the raw materials?
3. What’s the processing capacity are you going to achieve?
