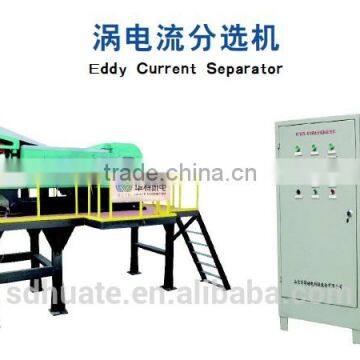

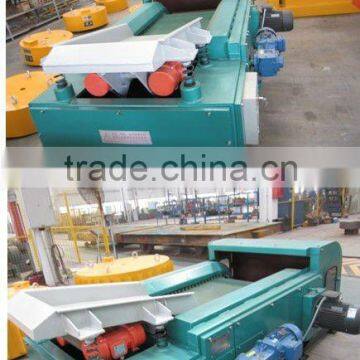

Eddy current separator machine

Specifications

ECS aluminum can recycling/HUATE
cessing capacity
2. particle size
3.strong magnetic intensity

ECS aluminum can recycling/HUATE



Applicatiton:

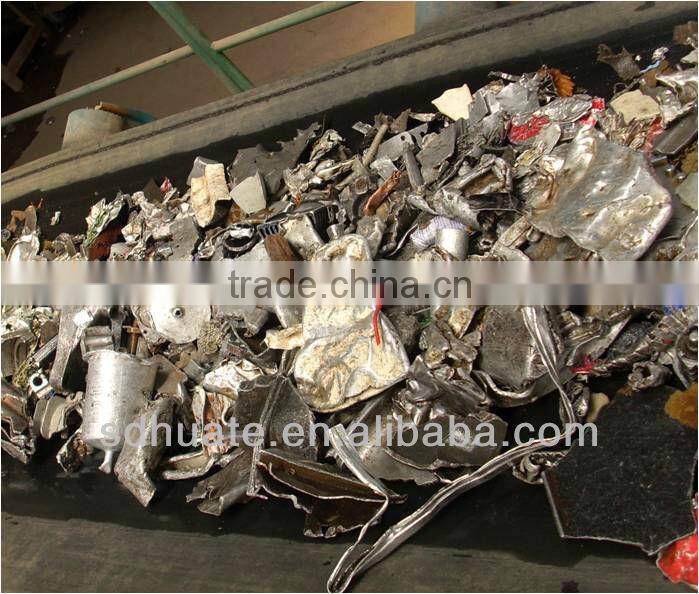

 It mainly used for drawing back non-ferrous metal. Typical material is :wasted copper, aluminum, cable, aluminum stuff, wasted auto spare part ,non-ferrous metal scrap, dross for printing ,broken glass contains non-ferrous .electronic wastes etc.



At present the main application in the following material separation

1. from the city waste recycling aluminum cans

2. Separation aluminum cans and iron

3. The ash from the boiler in the separation of non-ferrous metal

4. From waste car slices sorting aluminum or copper pieces

5. From smelting aluminium recycling aluminum in blast furnace slag

6. In some production line is to separate the iron metal impurity (such as plastic recycling product line)

7. Waste refrigerator processing

8. Electronic waste treatment



Feature:

1. with high efficiency ,stable working structure ,light frame.
2. with high adaptability, great processing capacity
3. It is widely used in environmental-protection area, especially in the non-ferrite recycle field
4. Convenient operation and run for a long time .
5. the speed of belt and the rotation speed of high frequency magnetic roller are both adjustable.

Main technical parameters :

1. Model		Adaptation output (m³/h)	Diameter of the separation roller	Drum speed (r/min)	Speed of the separation roller	Motor power (kw)
   						Separation roller	Transmission belt
   HTECS-3		≤3	320	50-2800	60-150	4	1.1
   	HTECS-4	≤4	320	50-2800	60-150	4	1.1
   	HTECS-6	≤6	320	50-2800	60-150	5.5	1.1
   	HTECS-7.5	≤7.5	320	50-2800	60-150	5.5	1.5
   	HTECS-8	≤8	320	50-2800	60-150	5.5	1.5
   	HTECS-10	≤10	400	50-2800	60-150	7.5	1.5
   	HTECS-12	≤12	400	50-2800	60-150	7.5	1.5
   	HTECS-14	≤14	400	50-2800	60-150	7.5	1.5

































Dear customer,

To choose the best appropriate model, we need to know the following questions:

1. The raw materials ?
2. The materials’ size?
3. The capacity requirements
4. Other special requirements

Any question, you can email to us, and welcome to visit our company!
