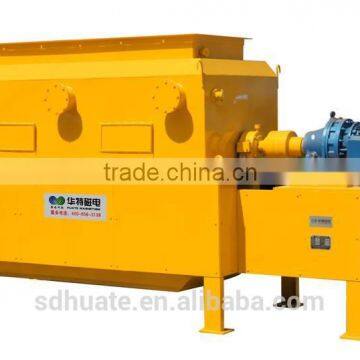

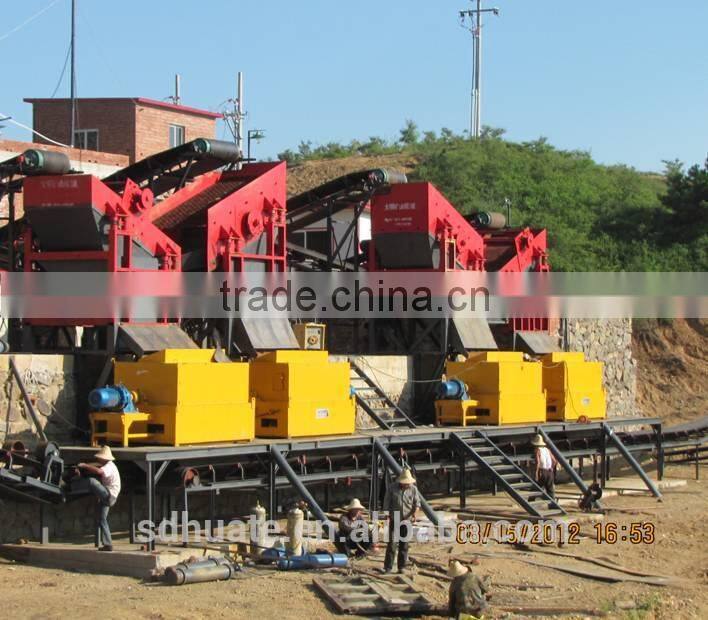

Series CTF Iron Ore Powder Dry Magnetic Separator Mining Machine

Name: Series CTF Iron Ore Powder Dry Magnetic Separator Mining Machine
Brand: Huate
SKU: 131574147
Availability: InStock

Series CTF Iron Ore Powder Dry Magnetic Separator Mining Machine thumbnail-1

Series CTF Iron Ore Powder Dry Magnetic Separator Mining Machine photo-1

US$ 15,000 - 40,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Magnetic Separator

Production Capacity:

as you required

Contact Supplier Request Quote Chat Now

Shandong Huate Magnet Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Magnetic Separator

Production Capacity as you required

Place of Origin Shandong, China

Brand Name Huate

Model Number kind of models

Voltage as you required

Power(W) as you required

Dimension(L*W*H) as you required

Weight as you required

Certification as you required

Warranty one year

After-sales Service Provided Overseas service center available

Specifications

1. Large capacaity
2. For dry separation
3. Size range: 1-30 mm
4. High quality and low price

Product Description

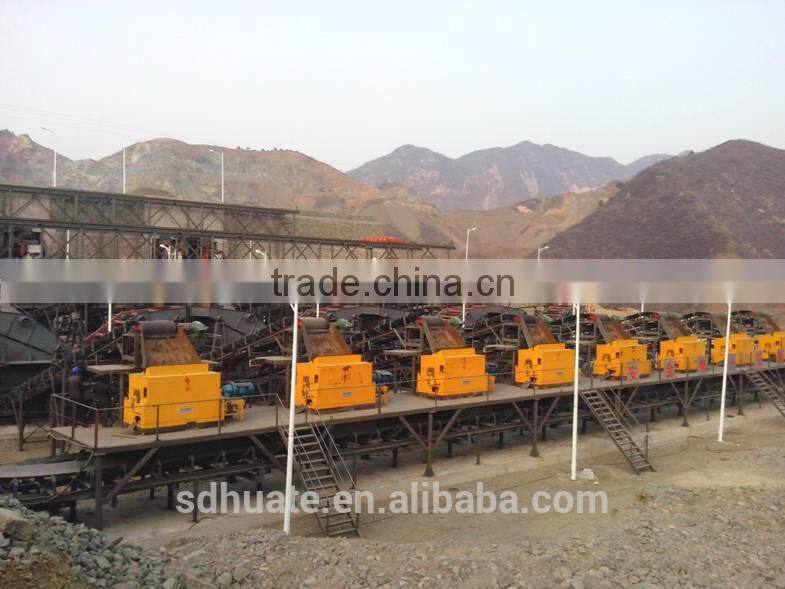

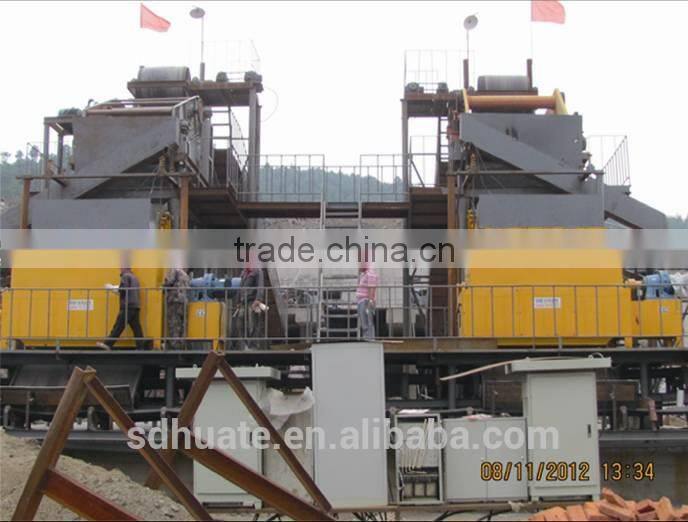

Dry magnetic drum separator

1. Application:

Used to the particle size of 0 ~ 30mm, grade of between 5% to 20% of low-grade magnetite primaries and dry powder ore’s pre-selection, effectively improve the grade into the mill to reduce the processing cost.

2. Working principal:

Using the principal of magnetic materials can be attracted to the permanent magnet, the material flows through the inside of the drum to form a semi-circular magnetic system to design a large magnetic field.When the material flows through this magnetic field, the magnetic materials are attracted by strong magnetic force and adsorbed on the drum’s surface of the semicircularmagnetic system.When the magnetic materials are brought to the region of lower non-magnetic, it will be discharged from the concentrate hole under gravity. Non-magnetic iron ore or lower grade orecan flow freely in the magnetic field and be discharged through the tailings hole under the action of gravity and centrifugal force.

3. Technical Features

*The multi-pole is arranged in the internal magnetic system and can increase the stirring of the magnetic particles.

* 180°broad-angle magnetic system can effectively improve the iron ore of recovery rate.

*Drum surface used in wear-resistant ceramics, the hardness of HRA is ≥85,can reach HRA92 above.

* Simple material distribution structure, and more convenient to control the fine, tailing grade.

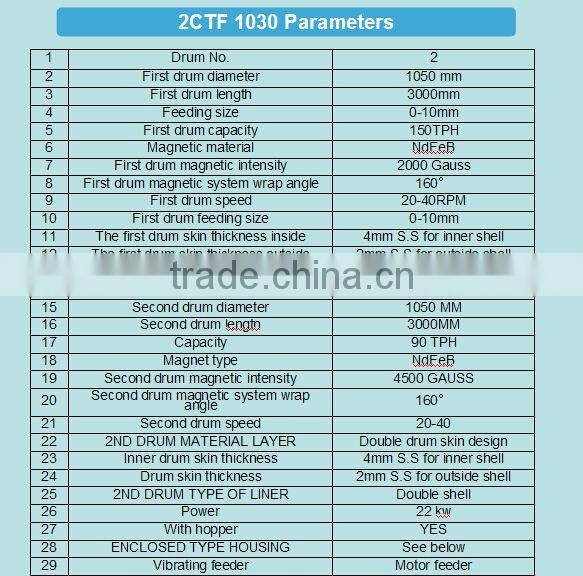

4. The main technical parameters:

Model	specification		Speed(r/min))	Drum surface Magnetic field intensity (mT)	Capacity(T/h))	Dimensions(mm)	Motor power(Kw)	Weight(kg)
Model	Drum diameter(mm)	Drum length(mm)	Speed(r/min))	Drum surface Magnetic field intensity (mT)	Capacity(T/h))	Dimensions(mm)	Motor power(Kw)	Weight(kg)
CTF-0818	800	1800	50	According to the nature of the material	55-70	345511501940	11	3300
CTF-0821	800	2100	50		70-85	375511501940	15	3900
CTF-0824	800	2400	50		85-100	415511501940	18.5	4450
CTF-1021	1000	2100	50		100-130	391513402035	18.5	4800
CTF-1024	1000	2400	50		120-150	421513402035	18.5	5370

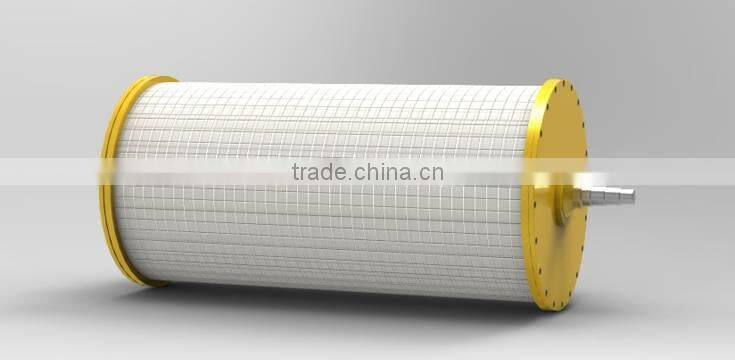

1. Permanent magnetic drum

1.1The drum bearing select domestic famous brand of Wazhou heavy duty spherical roller bearing, improving its abrasion resistance in the operation. It can be reach more 3 years in normal periodic lubrication maintenance.

1.2 The drum skin used high quality 304 stainless steel, and stick resistant ceramic in the tube of skin. Its using life can reach more than 5 years.

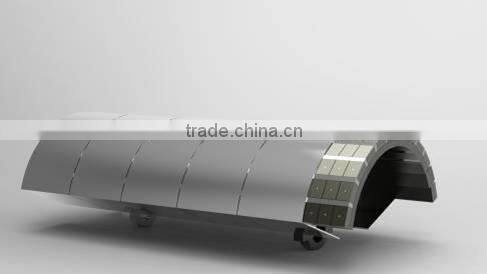

1.3 Magnetic system

This product magnetic system used computer simulation design, large wrap angle, small pole, more material tumbling, can effectively improve the concentrate grade.

The magnet are fixed by stainless steel screws in the pole board and packed with stainless steel skin, double protection to ensure magnet will never fall off. Magnetic system for 10 years demagnetization rate is not more than 3%. The dry magnetic separator’s spindle plate using non-magnetic stainless steel to ensure seamless magnetic conductive magnetic system to the spindle, thus ensuring the smooth operation of the bearing.

2. The housing

2.1 The housing use δ6 steel and the inlet are made of δ10 stainless steel. It is very durable.

2.2 The inlet are welded partakers plate, making the material distribution uniformity.

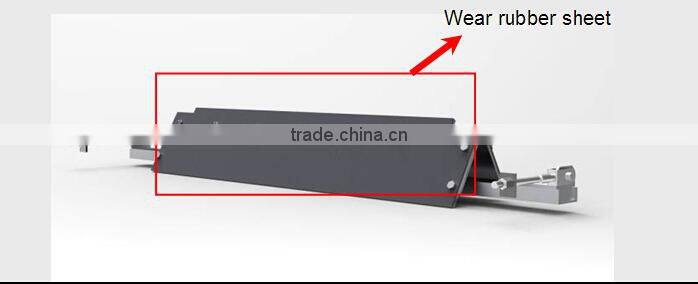

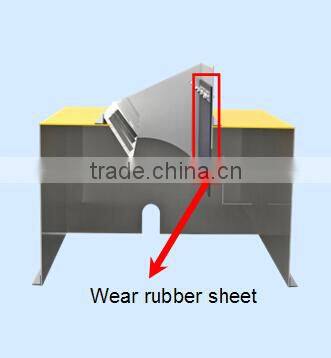

2.3 To prevent the materials splashing when feeding, we add wear rubber sheet before the the inlet hole. So that the material is always in a magnetic drum surface to improve the material sorting effect.

3. Gearing

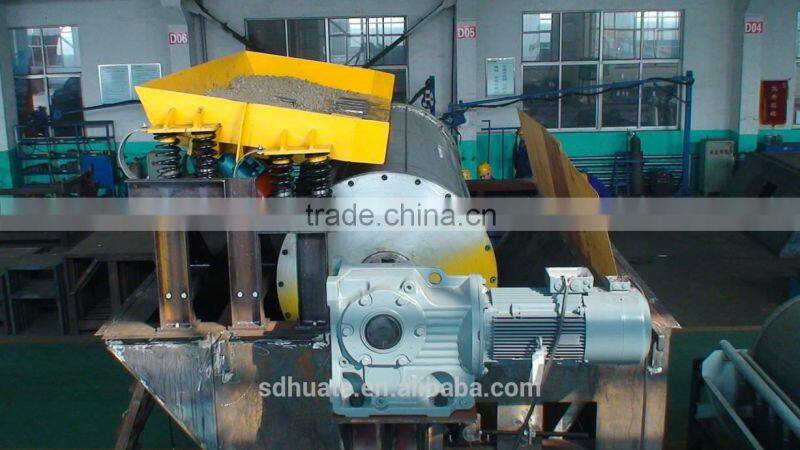

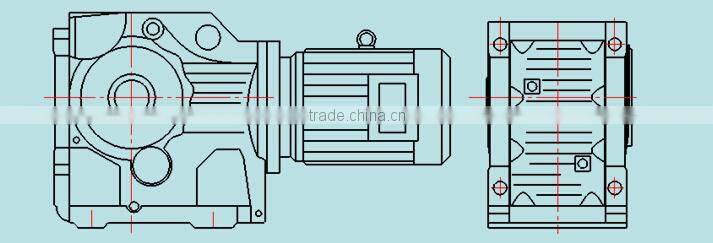

The gearing use SEW helical bevel gear reducer with high stability, compact and small footprint;Control system is equipped with frequency converter, easy to adjust roller speed, suitable for a variety of materials sorting. At the same time my company equipment with the motor current overload protection, the motor can safely operate, not because of the abnormal phenomenon and burned the motor. Life of up to 8 years.

4.Dosing device

This component is used to sorting concentrate and tailings after separating. The dosing device are made of δ10 stainless steel plate. Its surface lined with wear-resistant rubber sheet to enhance its life cycle, can adjust the dosing position through both sides of the adjusting screw and can control the concentrate and tailings grade flexibly.
