Specifications
1. High processing capacity2.Specially designed magnetic system
3.With the over-flow outlet
4.With the through-shaft stainle
1. Application:
This product is specially designed and produced according to requirement of beneficiation plant:
large-size equipment and higher separation efficiency of magnetite. With remarkably enhancing the processing capacity and recovery of magnetite, it can be used before/after grindingor concentrating separation.
2. Technical Features

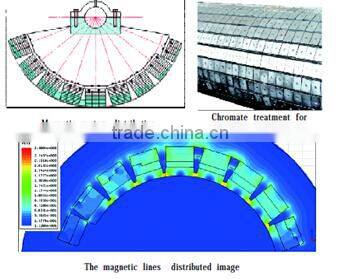

a.Specially designed magnetic system to improve the recovery and grade for mineral.
b.Magnetic wrap angle can be reached to 160 degree to improve the efficiency of equipment.
c.With the over-flow outlet, the slurry level can be controlled by valve to strengthen working efficiency.
d.The compound-sealing could protect the two terminals of drum against the impurities damaging.
e.With the through-shaft stainless steel pipe structure, the drum separator can work stably.
f.High processing capacity

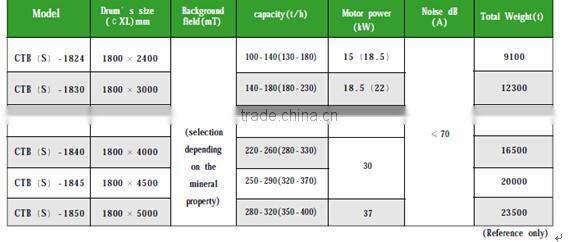

3. The main technical parameters:
wooden cases/steel frame,or according to the customer's requirements. Fumigation packaging!
12 monthes after-sale service. Best quality with easy maintainess.
Compang name:Shandong Huate Magnet Technology Co.,Ltd.
Address: Huate Road,Linqu Econonmic Development Area, Weifang City, Shandong Province, China.
Tel:0086-536-3391868 Contact person: Ms.Anna Wu Mobile:0086 18366351680
