Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Suspension Crossbelt Dry High Intensity Magnetic Separator

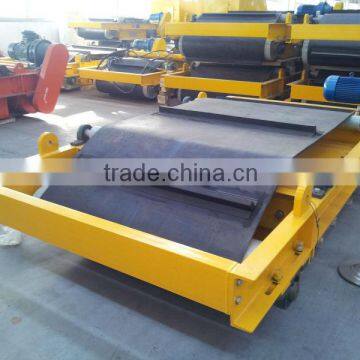

Suspension Crossbelt Dry High Intensity Magnetic Separator

Name: Suspension Crossbelt Dry High Intensity Magnetic Separator
Brand: HUATE
SKU: 131572087
Availability: InStock

Suspension Crossbelt Dry High Intensity Magnetic Separator thumbnail-1

Suspension Crossbelt Dry High Intensity Magnetic Separator photo-1

US$ 5,000 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Magnetic Separator

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Shandong Huate Magnet Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao /Tianjin/Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Magnetic Separator

Place of Origin Shandong, China

Brand Name HUATE

Model Number RCDD-5/6-605/8/10/12/14/16/18

Voltage 380,440,415V

Certification CE

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

suspension crossbelt magnetic separator
1.remove tramp iron from the nonmagnetic material.

suspension crossbelt dry high intensity magnetic separator

Application:

It is used to eliminate the powder or massive waste iron from the nonmagnetic material. The inner adopts the special resin to cast with wholly sealed structure. It features with deep revealed magnetic depth, strong magnetic force, dust-protection and rain-protection, erosion wearing and so on. It can be operated in the harsh environment.

Advantages:

1 By using the computer simulation magnetic circuit design, through magnetic depth, magnetic force is strong.

2 Special duct design, coil heat faster, low temperature.

3 Coil adopts advanced insulation processing technology, with its anti corrosive.

4 Automatic discharging iron. Easy maintenance, belt automatic correction

5 Product good compatibility, complete function.

Major technical parameters:

Model	Belt width mm	Suspension height h mm	Magnetic field intensity >mT	Material depth <mm	Excitation power <kw	Driving power <kw	Belt speed <m/s	Weight Kg	Appearance size mm
Model	Belt width mm	Suspension height h mm	Magnetic field intensity >mT	Material depth <mm	Excitation power <kw	Driving power <kw	Belt speed <m/s	Weight Kg	A	B	C
RCDD-5	500	150	60	100	1	1.5	4.5	950	2020	1040	775
RCDD-6.5	650	200	70	150	2	2.2		1490	2275	1190	820
RCDD-8	800	250		200	3	2.2		1770	2540	1480	865
RCDD-10	1000	300		250	.5	3.0		2380	2750	1635	940
RCDD-12	1200	350		300	5.8	3.0		3170	3000	1800	1010
RCDD-14	1400	400		350	6.7	4.0		4800	3500	2050	1050
RCDD-16	1600	450		400	9.5	5.5		6300	3900	2450	1180
RCDD-18	1800	500		450	12.5	7.5		7800	4400	2850	1290
