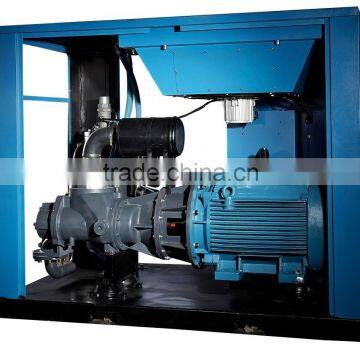

160Kw Variable Frequency High Pressure Air Compressor
US$ 11,000 - 250,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Other, Stationary, ISO9001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Highest Level GHH 180Kw Variable Frequency Screw Air CompressorUS$ 11,000 - 250,000MOQ: 1 Set -
Electric 220Kw Saving Energy Industry Frequency Air CompressorUS$ 11,000 - 250,000MOQ: 1 Set
-
Highest Level GHH 280Kw Frequency Screw Air CompressorUS$ 10 - 70,000MOQ: 1 Set
-
315Kw High Pressure Frequency Screw Air CompressorUS$ 11,000 - 250,000MOQ: 1 Set
-
Large Capacity Frequency Air Compressor ApprovedUS$ 5,300 - 6,500MOQ: 1 Set
Condition
New
Type
Screw
Configuration
Other, Stationary, ISO9001
Power Source
AC Power
Lubrication Style
Oil-less
Mute
No
Place of Origin
Shanghai, China
Brand Name
ZIQI, ZIQI
Model Number
GA-160A/W VFC
Voltage
380,400,415,660,690/3/50 440,460/3/60
Dimension(L*W*H)
2700x1550x1920mm
Weight
3520kg
Certification
ISO9001
Warranty
One Year
After-sales Service Provided
Overseas service center available
160Kw Variable Frequency High Pressure Air Compressor
Product Description
| Production Name | Screw air compressor | |
| Model Number | GA-160A/W VFC | |
| Brand Name | ZIQI | |
| Configuration | Stationary | |
|
Air displacement/ exhaust pressure |
mmm/min/MPA |
2.95-29.5/0.7 2,89-28.9/0.8 2.68-26.8/1.0 2.28-22.8/1.3 |
| Compressor series | single stage | |
| Cooling method | A-air Cooling W-watering Cooling | |
| Exhaust temperature | ℃ |
Air Cooling <Ambient temperature +15℃ Watering Cooling<40℃ |
| Water temperature | ℃ | ≤32 |
| Water pressure | MPa | 0.2-0.6 |
| Noise level | B(A) | 77 2 |
| Transmission | Flexbility direct drive | |
| Electric suppy | V/ph/Hz | 380 400 415 660 690/3/50 440/460/3/60 |
| Motor Power | KW | 160 |
| Lubricant oil | L | 100 |
| Starting method | Frequency start up | |
| Dimension(L*W*H) | mmxmmxmm | 2700X1550X1920 |
| Weight | Kg | 3520 |
| Exit diameter | mm | 65 |
| Cooling water connetor pipe diameter | mm | 50 |
Advantages:
- Using the renowned US Dynisco andapt to the high wearing and corrosion producing environment.
- High quality oil and air separator core,the oil content though profession strict test<3ppm
- Adopt ZIQI unique reverse-lock technology,oil never leak.Italy manuli,life will be five times longer compared to ordinary rubber tube
- German Original twin-screw air end,triple-seal,patent pruducts,air end never leak oil.
- The original allocation with high efficient steady intake valve,more fuelefficient,high reliability.
- high quality,and low price.
- various specification and models for your choice.
- Lower noise
- Good after-sales service
- Superior and compact designing
Frequency inverter air compressor cost comparison
in the wholo cycle of compressor operation,energy saving will far exceed the compressor price
Technical Parameter
Detail Images
Company Information
Shipment&Packaging
Certifications&FAQ
FAQ:
1.Q: Are you a factory or a trading company?
A:Factory.
2.Q: How about the Quality warranty ?
A: 1 year
3.Q: What are your payment terms?
A: 30% T/T in advance, the rest before shipment.
4.Q:How about the packaging:
A:Standard export wooden cases
