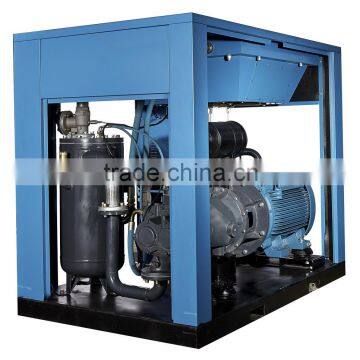

90Kw Saving Energy Industry Frequency Air Compressor For Sale

FOB Price

US$ 11,000 - 250,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Screw
Configuration	Other, Stationary, ISO9001	Power Source	AC Power
Lubrication Style	Oil-less	Mute	No
Place of Origin	Shanghai, China	Brand Name	ZIQI, ZIQI
Model Number	GA-90A/W VFC	Voltage	380,400,415,660,690/3/50 440,460/3/60
Dimension(LWH)	2545x1450x1900mm	Weight	2750KG
Certification	ISO9001	Warranty	One Year
After-sales Service Provided	Overseas service center available

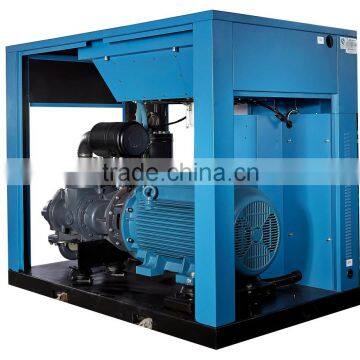

90Kw Saving Energy Industry Frequency Air Compressor For Sale

Product Description

Production Name		Screw air compressor
Model Number		GA-90A/W VFC
Brand Name		ZIQI
Configuration		Stationary
Air displacement/ exhaust pressure	mmm/min/MPA	1.70-17.0/0.7 1.65-16.5/0.8 1.52-15.2/1.0 1.40-14.0/1.3
Compressor series		single stage
Cooling method		A-air Cooling W-watering Cooling
Exhaust temperature	℃	Air Cooling <Ambient temperature +15℃ Watering Cooling<40℃
Water temperature	℃	≤32
Water pressure	MPa	0.2-0.6
Noise level	B(A)	75 2
Transmission		Flexbility direct drive
Electric suppy	V/ph/Hz	380 400 415 660 690/3/50 440/460/3/60
Motor Power	KW	90
Lubricant oil	L	80

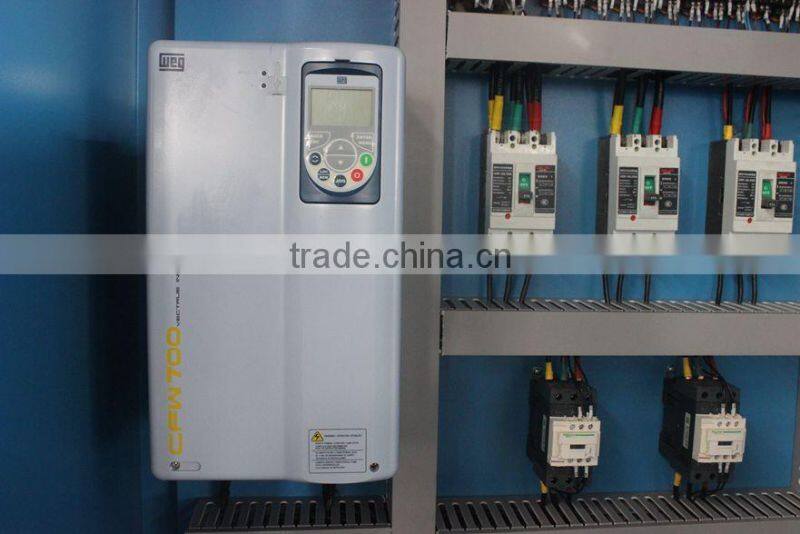

Starting method		Frequency start up
Dimension(LWH)	mmxmmxmm	2545x1450x1900mm
Weight	Kg	2750
Exit diameter	mm	50

Advantages

Using the renowned US Dynisco andapt to the high wearing and corrosion producing environment.
High quality oil and air separator core,the oil content though profession strict test<3ppm
Adopt ZIQI unique reverse-lock technology,oil never leak.Italy manuli,life will be five times longer compared to ordinary rubber tube

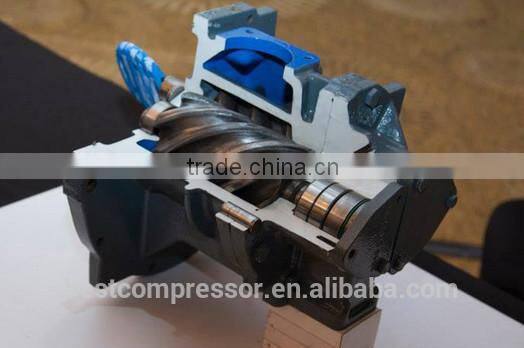

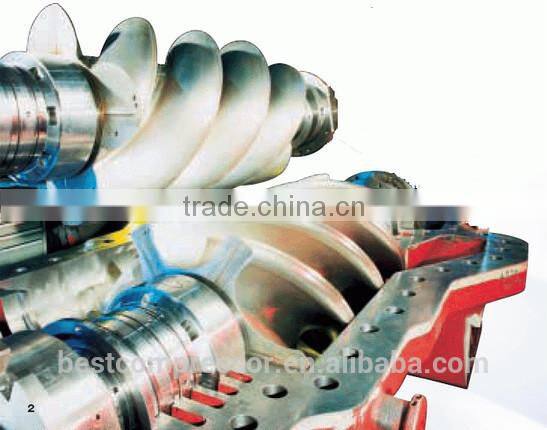

German Original twin-screw air end,triple-seal,patent pruducts,air end never leak oil.
The original allocation with high efficient steady intake valve,more fuelefficient,high reliability.
high quality,and low price.
various specification and models for your choice.
Lower noise
Good after-sales service
Superior and compact designing

Frequency inverter air compressor cost comparison,

in the wholo cycle of compressor operation,energy saving will far exceed the compressor price.

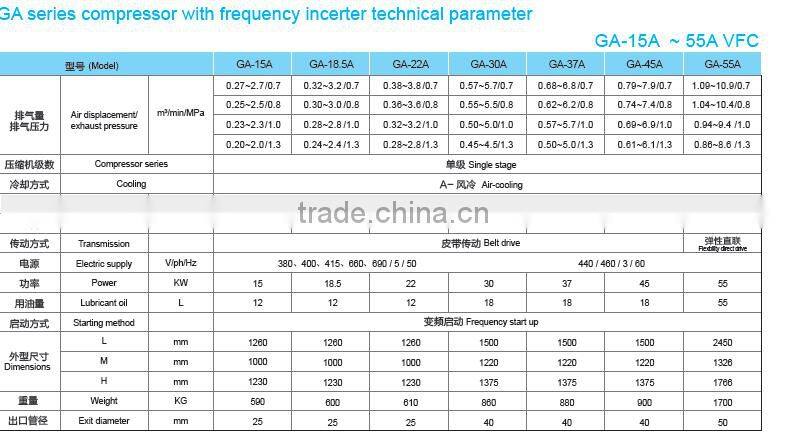

Technical Parameter

Detail Images
