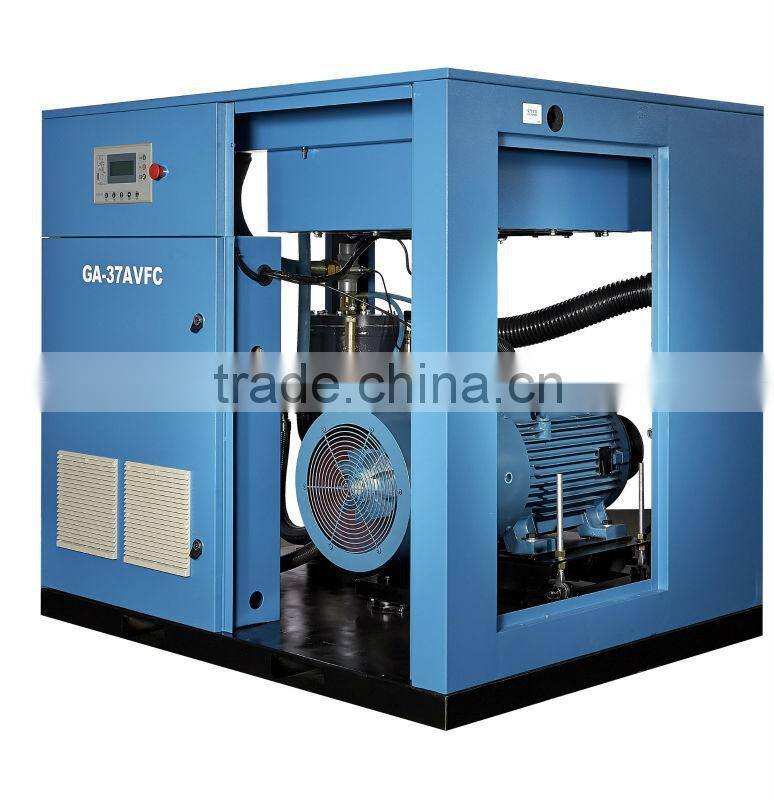

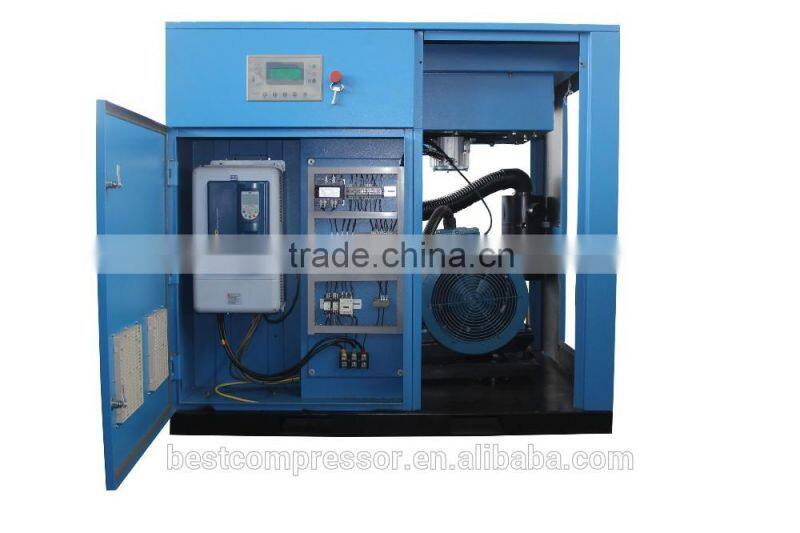

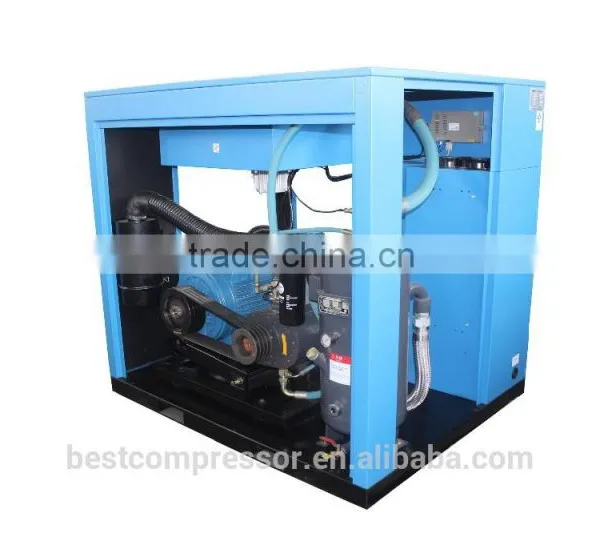

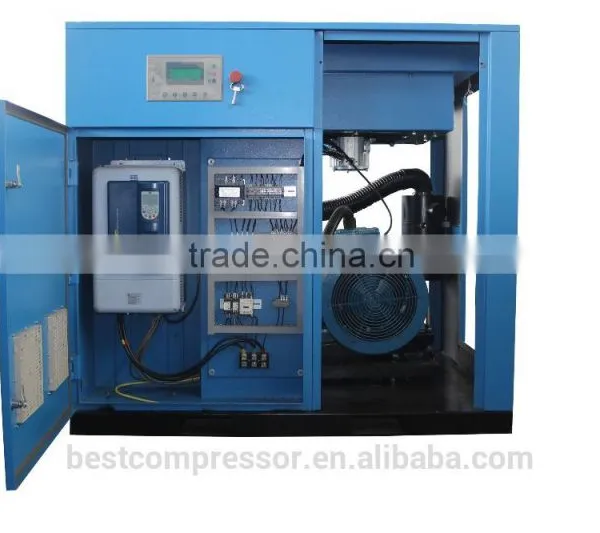

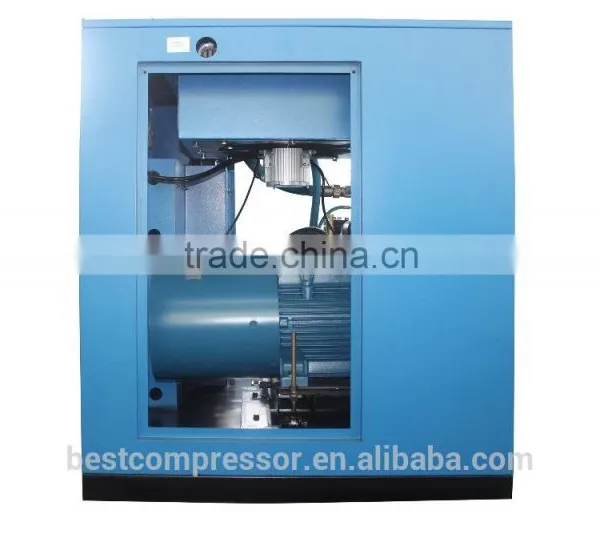

37kw variable oil injected air compressor
ZiQi screw compressor, the technology from Germany and the main configures are imported from Germany to make sure the high performance and working smoothly.
Especially the air end using Germany GHH-RAND
Lower life-cycle costs:
Energy costs taken over the lifetime of any compressor add up to many times that of the initial capital cost, which can make any purchase price difference a false economy. Efficiency and reliability are vital in the production of compressed air and GoodAir achieves these objectives with quality, durable components that are built to last. Energy saving GHH-RAND rotary screw compressors can help businesses enhance their competitive edge and significantly reduce compressed air costs.
5.5KW~30KW Specification
Model |

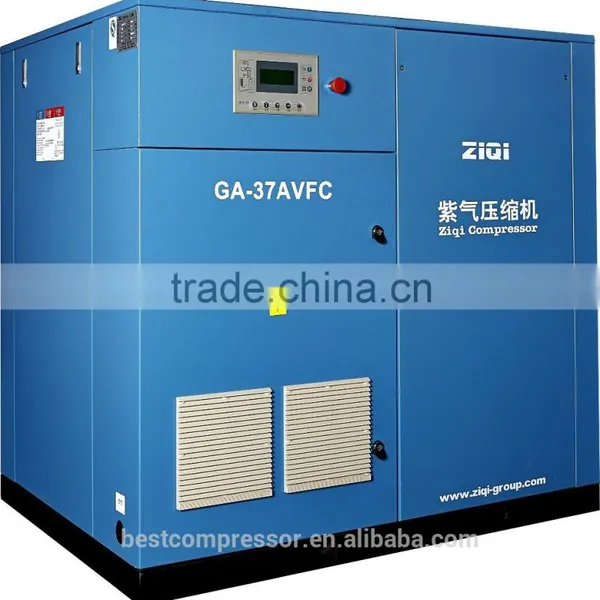

GA-37Avfc |
GA-45A |
GA-55A/W |
GA-75 A/W |
GA-90 A/W |
GA-110 A/W |
GA-132 A/W |
||
|
Air discharge/ Pressure discharge
|
m³/min/Mpa
|
0.68-6.82/0.7 |
7.42/0.7 |
10.83/0.7 |
14.11/0.7 |
16.1/0.7 |
21.0/0.7 |
25.2/0.7 |
|
0.624-6.24/0.8 |
7.11/0.8 |
9.20/0.8 |
13.02/0.8 |
15.0/0.8 |
19.8/0.8 |
24.0/0.8 |
|||
0.574-5.74/1.0 |
6.22/1.0 |
8.61/1.0 |
12.04/1.0 |
13.8/1.0 |
17.9/1.0 |
21.0/1.0 |
|||
0.493-4.93/1.2 |
5.65/1.2 |
7.71/1.2 |
10.06/1.2 |
12.3/1.2 |
15.3/1.2 |
18.3/1.2 |
|||
No of compression stage |
|
Single stage compression |
|||||||
Cooling model |
|
A-Air cooling W-Water cooling |
|||||||
Discharge temperature |
ºC |
≤The environment temperature +15ºC (Air cooling) ≤40ºC (Water cooling) |
|||||||
Noises Level |
dB(A) |
65±2 |
68±2 |
68±2 |
72±2 |
72±2 |
72±2 |
76±2 |
|
Transmission mode |
|
Belt Drive or Direct Drive (Optional) |
|||||||
Power supply |
V/Ph/Hz |
380/3/50 ,custom design is suitable |
|||||||
Motor power |
kw |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
|
Starting model |
|
Y-Δ Start |
|||||||
External dimensions |
L |
mm |
1715 |
1715 |
2045 |
2045 |
2650 |
2650 |
2400 |
W |
mm |
1090 |
1090 |
1230 |
1230 |
1640 |
1750 |
1450 |
|
H |
mm |
1635 |
1635 |
1820 |
1820 |
1850 |
1850 |
1800 |
|
Net Weight |
Kg |
1120 |
1200 |
1750 |
1820 |
2200 |
3000 |
3550 |
|
Air out pipe diameter |
Inch |
G1 1/2” |
G1 1/2” |
G2” |
G2” |
DN65 |
DN65 |
DN65 |
|
Volume Lubricant oil |
L |
22 |
22 |
50 |
50 |
50 |
75 |
75 |
|

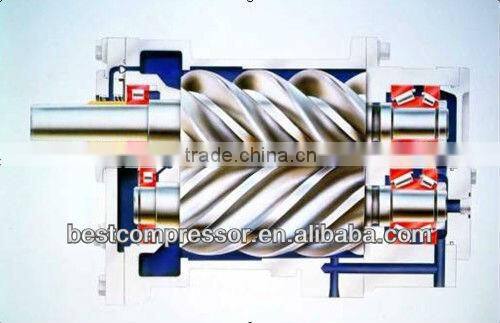

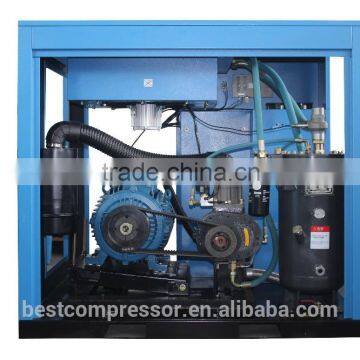

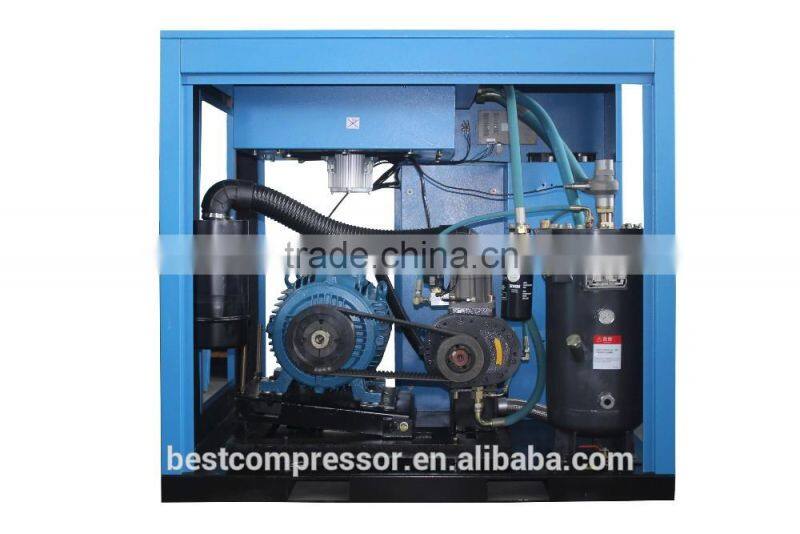

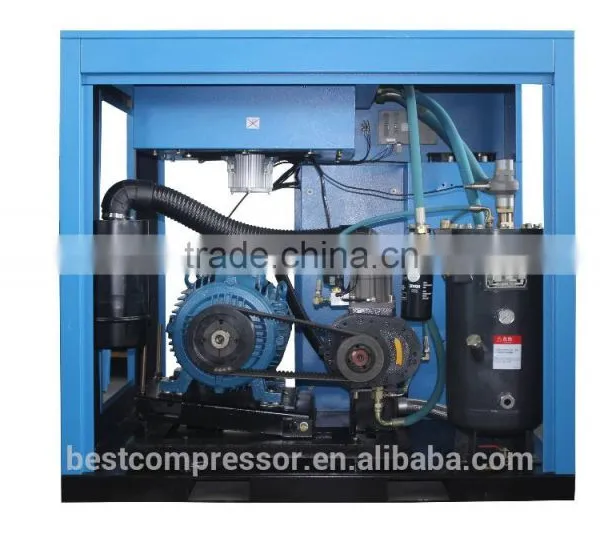

1. Host body ( air end )

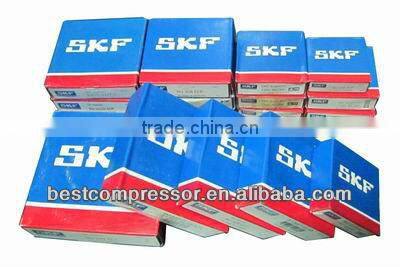

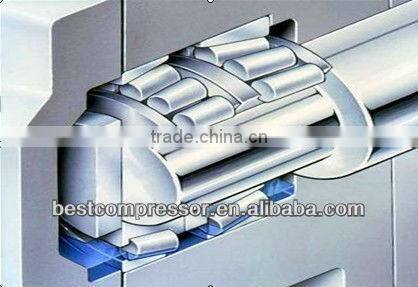

2. Air end discharge terminal adopts SKF company TRB (tapered roller bearing)

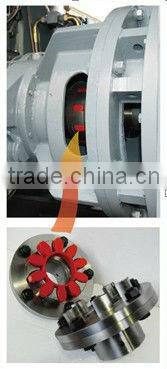

3. Direct driven type -- from 55kw to 355kw
4.The motor is Brazilian WEG brand

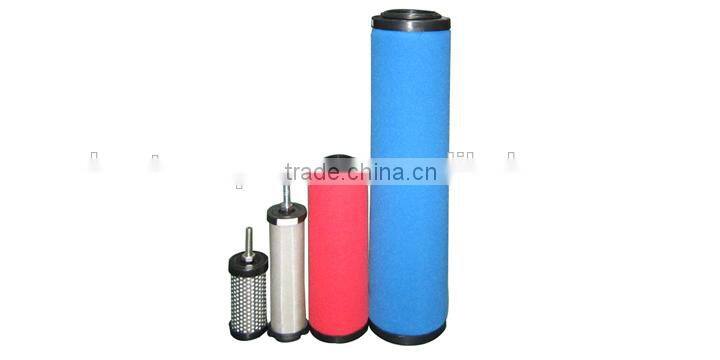

5.High quality Air filtre
6.More informations:

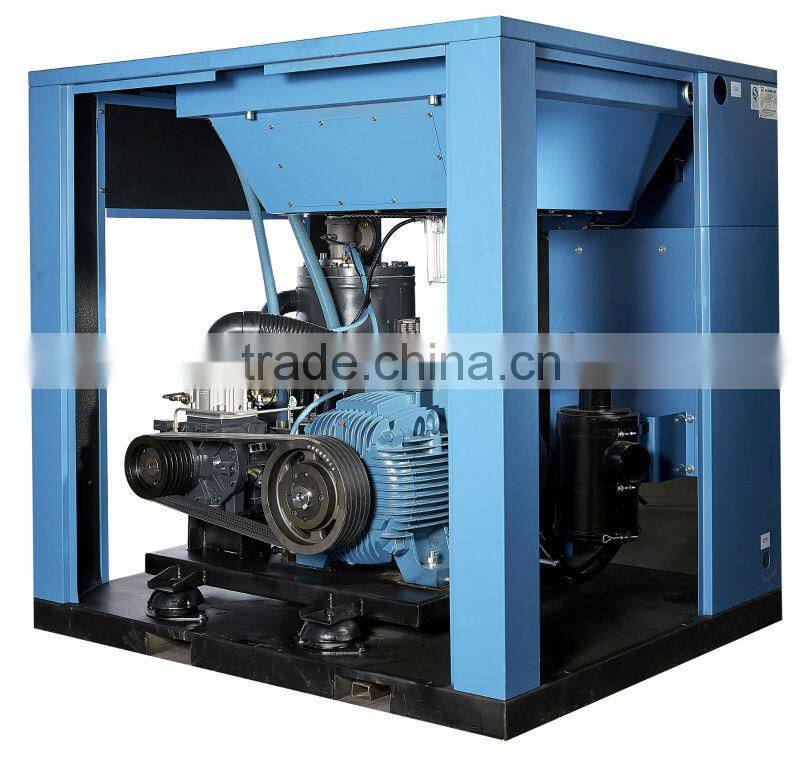

Industrial electric screw air compressor 37kw
If you chose us, you are bound to have the most advance screw technology and the best service of the world.
ziqi provide high quality produces and services for generall industrials , manufacture industrials electricity, architecture, mining, energy, ect, our service network composed of distributors and agencies assigned by local subsidiaries , they are providing perfect services for ZIQI's customers from all over the world.
ZIQI Group:
Provide the best compressed air system to user
Our Products:
High efficient, durable, energy saving, enviroment protection
