Variable Speed 37kw Used Screw Compressor

FOB Price

US$ 7,575 - 8,585 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Screw
Configuration	Stationary	Power Source	AC Power
Lubrication Style	Lubricated	Mute	No
Place of Origin	Shanghai, China	Brand Name	ZiQi atlas copco air compressor
Model Number	GA-37AVFC atlas copco air compressor	Voltage	380v/3p/50hz
Dimension(LWH)	15009701375mm	Weight	800kg
Certification	ISO9001	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

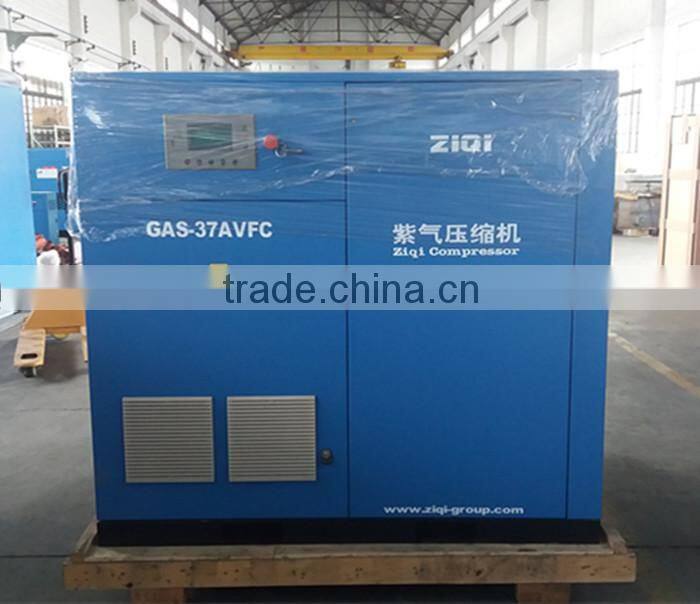

Variable speed 37kw used screw compressor

Product Description

Screw air compressor, the technology from Germany and the main configures are imported from Germany to make sure the high performance and working smoothly.

Especially the air end using Germany GHH

Technical parameter

Model				GA-37AVFC	GA-45A	GA-55A/W	GA-75 A/W	GA-90 A/W	GA-110 A/W	GA-132 A/W
Air discharge/ Pressure discharge		m³/min/Mpa		0.682~6.82/0.7	7.42/0.7	10.83/0.7	14.11/0.7	16.1/0.7	21.0/0.7	25.2/0.7
				0.642~6.24/0.8	7.11/0.8	9.20/0.8	13.02/0.8	15.0/0.8	19.8/0.8	24.0/0.8
				0.574~5.74/1.0	6.22/1.0	8.61/1.0	12.04/1.0	13.8/1.0	17.9/1.0	21.0/1.0
				0.493~4.93/1.2	5.65/1.2	7.71/1.2	10.06/1.2	12.3/1.2	15.3/1.2	18.3/1.2
No of compression stage				Single stage compression
Cooling model				A-Air cooling W-Water cooling
Discharge temperature		ºC		≤The environment temperature +15ºC (Air cooling) ≤40ºC (Water cooling)
Noises Level		dB(A)		65±2	68±2	68±2	72±2	72±2	72±2	76±2
Transmission mode				Belt Drive or Direct Drive (Optional)
Power supply		V/Ph/Hz		380/3/50 ,custom design is suitable
Motor power		kw		37	45	55	75	90	110	132
Starting model			Y-Δ Start
External dimensions	L	mm		1500	1715	2045	2045	2650	2650	2400
	W	mm		1220	1090	1230	1230	1640	1750	1450
	H	mm		1375	1635	1820	1820	1850	1850	1800
Net Weight		Kg		880	1200	1750	1820	2200	3000	3550
Air out pipe diameter		Inch		G1 1/2”	G1 1/2”	G2”	G2”	DN65	DN65	DN65
Volume Lubricant oil		L		18	22	50	50	50	75	75

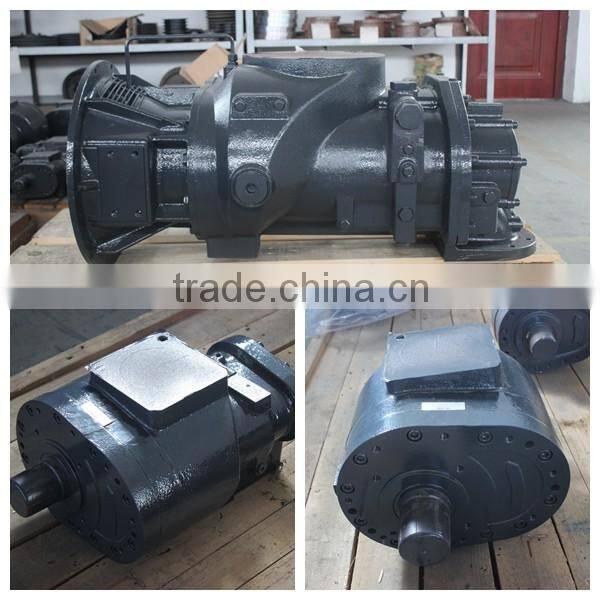

1. Host body ( air end )

2. Air end discharge terminal adopts SKF company TRB (tapered roller bearing)

3.The motor is Brazilian WEG brand

4.Brazil WEG Inverter
