Primary energy consumption top 10 air compressors
screw compressor for sale main configures as follows:
1. Main frame: ZiQi
2. Bearing:100% Sweden SKF (LIFE60000hours )
3. Solenoid valve: CEME Italy
4. Electro motor: ABB WOLONG
5. Thermostat valve : Austria Hoerbiger
6. Pressure sensor: Switzerland Huba imported with original
7. Container: shanghai shenjiang
8. Oil filter: Germany MANN company imported with original
9. Oil and gas separator: Germany MANN company imported with original
10. Lubricating Oil: Sweden Atlas screw air compressor oil imported with original
11. Suction valve: Sweden Atlas imported with original
12. Pressure valve: Hoerbiger Austria company
13. PLC: Schneider Electric France
14. Oil system configuration of the pipeline were chrome-plated brass
More than 80% of imported famous brand accessories!
- Start and run:
The figure shows the comparison of several different start-up mode, we can see that the variable frequency driven compressor accpletely showly to star, is more stable than the soft-star, competely avoid the current peak, start variable frequency running when it comes to the rated pressure. then adapt to the operating environment of lack electricity at the largest extent.
- Cost comparison
ZIQI VFC intelligent serial screw compressor can precisely change the rotation speed of the main motor according to the change of the air consumption, based on stabilizing exhaust pressure, to output the air as user need, and only consume the necessary energy, then reach to energy saving purpose. in the whole cycle of compressor operation, energy savings will far exceed the compressor price
- Constant pressure air supply, production and consumption balance
The figure shows the comparison of running condition between ordinary air compressor and inverter compressor. Frequency compressor work based on air consumption and air production balance, to avoid the machine loading and unloading frequently when the air consumption changing, it saves more than 35%energy compared to traditional compressor. steady pressure output, with the pressure loss control in 0.01Mpa-0.02Mpa, avoid the high load current loss which cased by the 0.05-0.2Mpa large pressure difference of tranditional compressor.

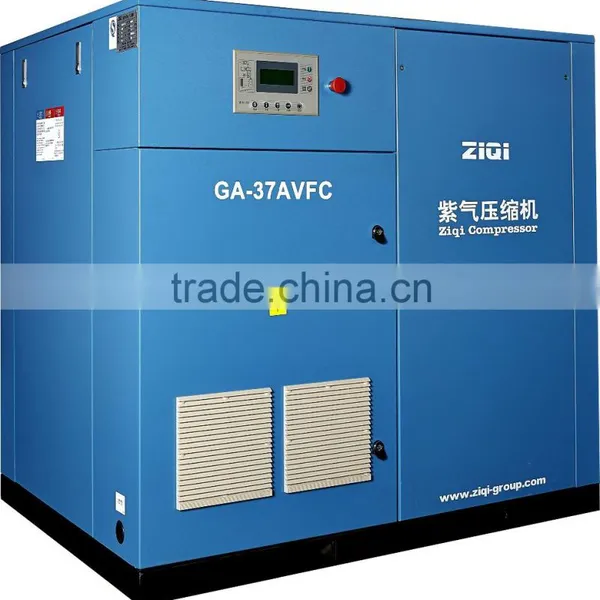

Model |
GA-37A |
GA-45A |
GA-55A/W |
GA-75 A/W |
GA-90 A/W |
GA-110 A/W |
GA-132 A/W |
||
|
Air discharge/ Pressure discharge
|
m³/min/Mpa
|
6.82/0.7 |
7.42/0.7 |
10.83/0.7 |
14.11/0.7 |
16.1/0.7 |
21.0/0.7 |
25.2/0.7 |
|
6.24/0.8 |
7.11/0.8 |
9.20/0.8 |
13.02/0.8 |
15.0/0.8 |
19.8/0.8 |
24.0/0.8 |
|||
5.74/1.0 |
6.22/1.0 |
8.61/1.0 |
12.04/1.0 |
13.8/1.0 |
17.9/1.0 |
21.0/1.0 |
|||
4.93/1.2 |
5.65/1.2 |
7.71/1.2 |
10.06/1.2 |
12.3/1.2 |
15.3/1.2 |
18.3/1.2 |
|||
No of compression stage |
|
Single stage compression |
|||||||
Cooling model |
|
A-Air cooling W-Water cooling |
|||||||
Discharge temperature |
ºC |
≤The environment temperature +15ºC (Air cooling) ≤40ºC (Water cooling) |
|||||||
Noises Level |
dB(A) |
65±2 |
68±2 |
68±2 |
72±2 |
72±2 |
72±2 |
76±2 |
|
Transmission mode |
|
Belt Drive or Direct Drive (Optional) |
|||||||
Power supply |
V/Ph/Hz |
380/3/50 ,custom design is suitable |
|||||||
Motor power |
kw |
37 |
45 |
55 |
75 |
90 |
110 |
132 |
|
Starting model |
|
Y-Δ Start |
|||||||
External dimensions |
L |
mm |
1715 |
1715 |
2045 |
2045 |
2650 |
2650 |
2400 |
W |
mm |
1090 |
1090 |
1230 |
1230 |
1640 |
1750 |
1450 |
|
H |
mm |
1635 |
1635 |
1820 |
1820 |
1850 |
1850 |
1800 |
|
Net Weight |
Kg |
1120 |
1200 |
1750 |
1820 |
2200 |
3000 |
3550 |
|
Air out pipe diameter |
Inch |
G1 1/2” |
G1 1/2” |
G2” |
G2” |
DN65 |
DN65 |
DN65 |
|
Volume Lubricant oil |
L |
22 |
22 |
50 |
50 |
50 |
75 |
75 |
|
1.Host body ( air end )
2. Air end discharge terminal adopts SKF company TRB (tapered roller bearing)

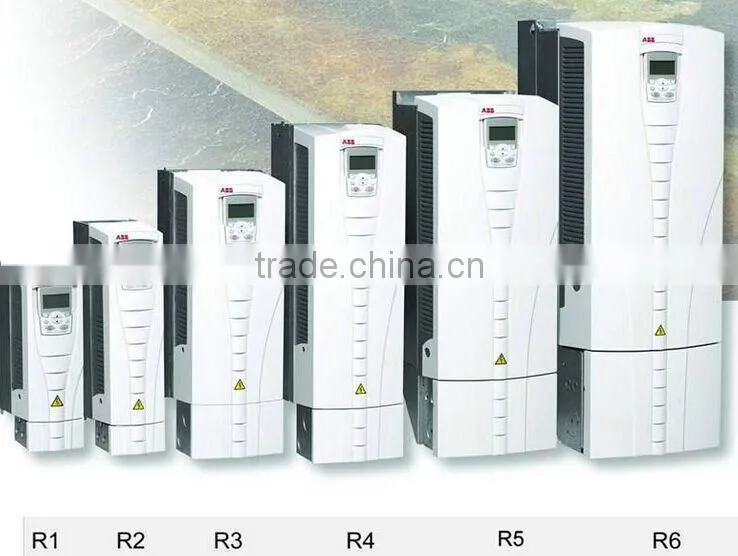

3. ABB Inverter
4.The motor is Brazilian WEG brand

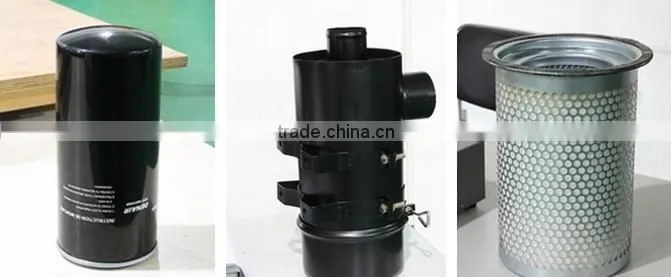

5.High quality Air filtre
