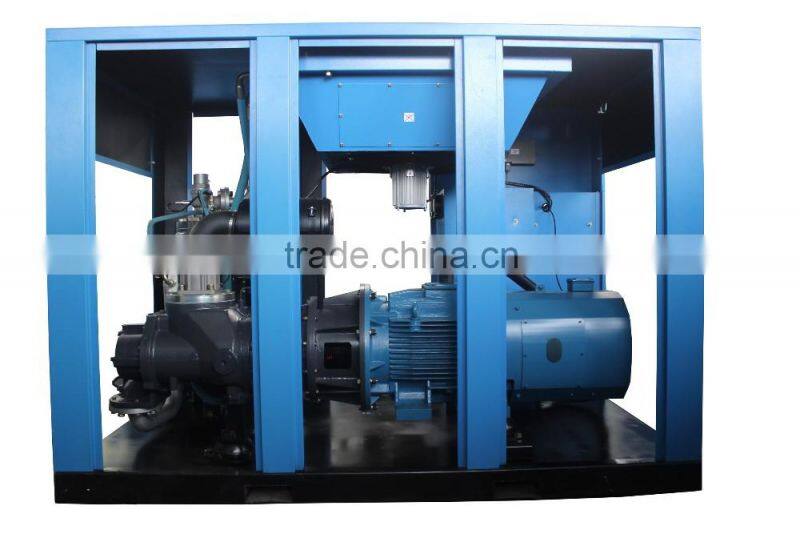

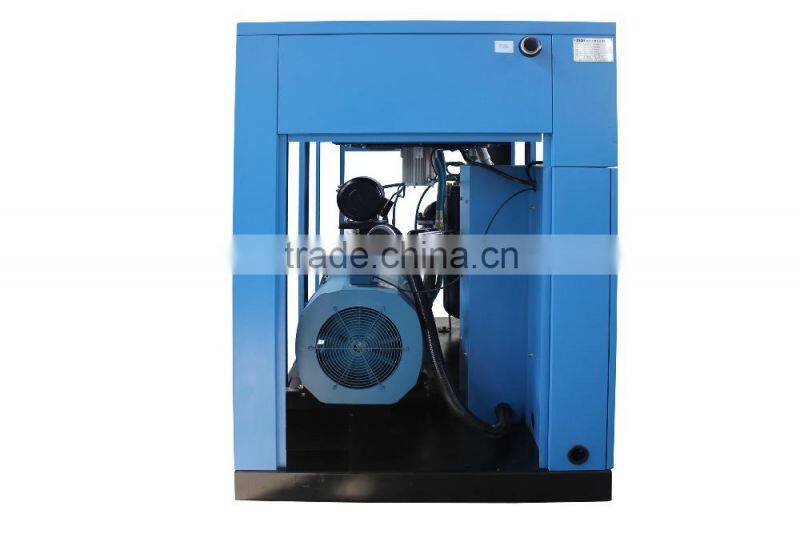

Fast Delivery Screw Drive Air Compressor

FOB Price

US$ 1,000 - 15,723 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Screw
Configuration	Stationary	Power Source	AC Power
Lubrication Style	Lubricated	Mute	Yes
Place of Origin	Shanghai, China	Brand Name	ZiQi screw drive air compressor
Model Number	GA-55AGVFC screw drive air compressor	Voltage	55kw, 380v
Dimension(LWH)	245013261766mm	Weight	840kg, 840kg
Certification	ISO9001	Warranty	1
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

fast delivery screw drive air compressor

Product Description

The screw air compressor main configures as follows:

1. Main frame: ZiQi

2. Bearing:100% Sweden SKF (LIFE60000hours )

3. Solenoid valve: CEME Italy

4. Electro motor: ABB WOLONG

5. Thermostat valve : Austria Hoerbiger

6. Pressure sensor: Switzerland Huba imported with original

7. Container: shanghai shenjiang

8. Oil filter: Germany MANN company imported with original

9. Oil and gas separator: Germany MANN company imported with original

10. Lubricating Oil: Sweden Atlas screw air compressor oil imported with original

11. Suction valve: Sweden Atlas imported with original

12. Pressure valve: Hoerbiger Austria company

13. PLC: Schneider Electric France

14. Oil system configuration of the pipeline were chrome-plated brass

More than 80% of imported famous brand accessories!

Technical parameter

Model			GA-37A	GA-45A	GA-55A/W	GA-75 A/W	GA-90 A/W	GA-110 A/W	GA-132 A/W
Air discharge/ Pressure discharge		m³/min/Mpa	6.82/0.7	7.42/0.7	10.83/0.7	14.11/0.7	16.1/0.7	21.0/0.7	25.2/0.7
			6.24/0.8	7.11/0.8	9.20/0.8	13.02/0.8	15.0/0.8	19.8/0.8	24.0/0.8
			5.74/1.0	6.22/1.0	8.61/1.0	12.04/1.0	13.8/1.0	17.9/1.0	21.0/1.0
			4.93/1.2	5.65/1.2	7.71/1.2	10.06/1.2	12.3/1.2	15.3/1.2	18.3/1.2
No of compression stage			Single stage compression
Cooling model			A-Air cooling W-Water cooling
Discharge temperature		ºC	≤The environment temperature +15ºC (Air cooling) ≤40ºC (Water cooling)
Noises Level		dB(A)	65±2	68±2	68±2	72±2	72±2	72±2	76±2
Transmission mode			Belt Drive or Direct Drive (Optional)
Power supply		V/Ph/Hz	380/3/50 ,custom design is suitable
Motor power		kw	37	45	55	75	90	110	132
Starting model			Y-Δ Start
External dimensions	L	mm	1715	1715	2045	2045	2650	2650	2400
	W	mm	1090	1090	1230	1230	1640	1750	1450
	H	mm	1635	1635	1820	1820	1850	1850	1800
Net Weight		Kg	1120	1200	1750	1820	2200	3000	3550
Air out pipe diameter		Inch	G1 1/2”	G1 1/2”	G2”	G2”	DN65	DN65	DN65
Volume Lubricant oil		L	22	22	50	50	50	75	75

1. Host body ( air end )

2. Air end discharge terminal adopts SKF company TRB (tapered roller bearing)

3. Direct driven type -- from 55kw to 355kw

4.The motor is Brazilian WEG brand

5.High quality Air filtre

6.More informations:
