Home > Products > Variable frequency screw compressor > Frequency Inverter Silent Air Compressor Prices
Frequency Inverter Silent Air Compressor Prices
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Screw | |
| Configuration | Stationary | Power Source | AC Power | |
| Lubrication Style | Lubricated | Mute | Yes | |
| Place of Origin | Shanghai, China | Brand Name | ZiQi air compressor prices | |
| Model Number | GA-37AVFC air compressor prices | Voltage | 37kw | |
| Dimension(L*W*H) | 1500*1220*1375mm | Weight | 840kg | |
| Certification | ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
frequency inverter silent air compressor prices
ZiQi screw compressor, the technology from Germany and the main configures are imported from Germany to make sure the high performance and working smoothly.
The screw air compressor main configures as follows:

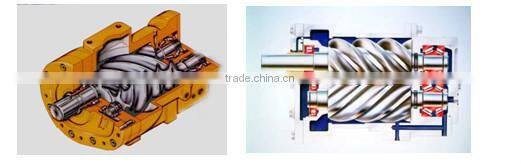

1. Main frame: ZiQi

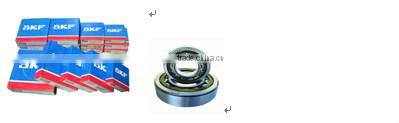

2. Bearing:100% Sweden SKF (LIFE60000hours )
3. Solenoid valve: CEME Italy
4. Electro motor: ABB WOLONG
5. Thermostat valve : Austria Hoerbiger
6. Pressure sensor: Switzerland Huba imported with original
7. Container: shanghai shenjiang

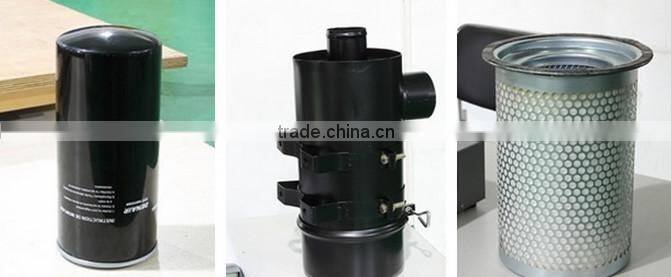

8. Oil filter: Germany MANN company imported with original
9. Oil and gas separator: Germany MANN company imported with original
10. Lubricating Oil: Sweden Atlas screw air compressor oil imported with original
11. Suction valve: Sweden Atlas imported with original
12. Pressure valve: Hoerbiger Austria company
13. PLC: Schneider Electric France
14. Oil system configuration of the pipeline were chrome-plated brass
More than 80% of imported famous brand accessories!
Model | GA-37AVFC | GA-45A | GA-55A/W | GA-75 A/W | GA-90 A/W | GA-110 A/W | GA-132 A/W | ||
Air discharge/ Pressure discharge
|
m³/min/Mpa
| 0.66-6.8/0.7 | 7.42/0.7 | 10.83/0.7 | 14.11/0.7 | 16.1/0.7 | 21.0/0.7 | 25.2/0.7 | |
0.62-6.24/0.8 | 7.11/0.8 | 9.20/0.8 | 13.02/0.8 | 15.0/0.8 | 19.8/0.8 | 24.0/0.8 | |||
0.57-5.74/1.0 | 6.22/1.0 | 8.61/1.0 | 12.04/1.0 | 13.8/1.0 | 17.9/1.0 | 21.0/1.0 | |||
0.50-5.0 /1.2 | 5.65/1.2 | 7.71/1.2 | 10.06/1.2 | 12.3/1.2 | 15.3/1.2 | 18.3/1.2 | |||
No of compression stage |
| Single stage compression | |||||||
Cooling model |
| A-Air cooling W-Water cooling | |||||||
Discharge temperature | ºC | ≤The environment temperature +15ºC (Air cooling) ≤40ºC (Water cooling) | |||||||
Noises Level | dB(A) | 65±2 | 68±2 | 68±2 | 72±2 | 72±2 | 72±2 | 76±2 | |
Transmission mode |
| Belt Drive or Direct Drive (Optional) | |||||||
Power supply | V/Ph/Hz | 380/3/50 ,custom design is suitable | |||||||
Motor power | kw | 37 | 45 | 55 | 75 | 90 | 110 | 132 | |
Starting model |
| Y-Δ Start | |||||||
External dimensions | L | mm | 1500 | 1715 | 2045 | 2045 | 2650 | 2650 | 2400 |
W | mm | 1220 | 1090 | 1230 | 1230 | 1640 | 1750 | 1450 | |
H | mm | 1375 | 1635 | 1820 | 1820 | 1850 | 1850 | 1800 | |
Net Weight | Kg | 840 | 1200 | 1750 | 1820 | 2200 | 3000 | 3550 | |
Air out pipe diameter | Inch | 40 | G1 1/2” | G2” | G2” | DN65 | DN65 | DN65 | |
Volume Lubricant oil | L | 17 | 22 | 50 | 50 | 50 | 75 | 75 | |
1.The host machine of the compressor is German GHH-Rand
2. The motor is Brazilian WEG brand
3.The bearing is Swedish SKF brand
4.The motor is Brazilian WEG brand

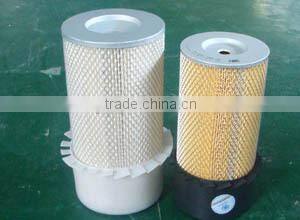

5.High quality Air filtre
