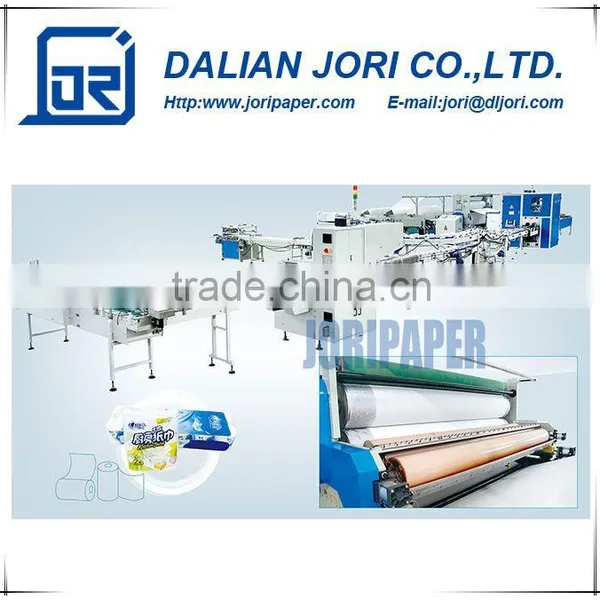

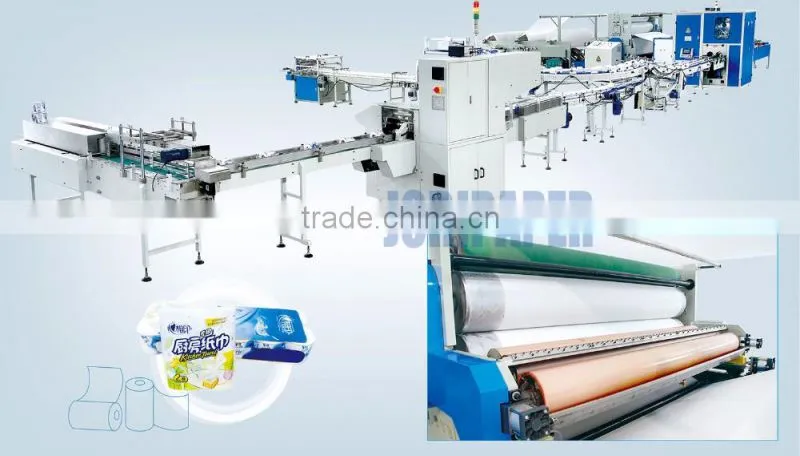

Fully Automatic Toilet Paper and Kitchen Towel Production Line with Colorful Lamination
Introduction:
1. This production line are consist of the following FOUR machines:
– Fully Automatic Toilet Paper Rewinding Machine,
– Automatic Log Saw Cutting Machine,
– Automatic Single Toilet Roll Packing Machine.
– Semi-Automatic Multi Toilet Rolls Packing Machine.
2. It can automatic loading material to finish cutting and packing output.
3. The whole production line are driven automatically by mechanical, It can realize cooperate smoothly and stable performance.
4. This production line will help you save lobor cost and reduce labor intensity and improve production efficiency.
Specification:
1. FULLY AUTOMATIC TOILET PAPER REWINDING MACHINE MODEL:1575B
| MACHINE MODEL | 1575B (OTHER SIZE TO BE SPECIFIED) |
| Raw Material Width | 1750mm (Other size to be specified) |
| Finished Roll Diameter | φ90- φ140mm (Other size to be specified) |
| Finished Roll Core Diameter | φ38- φ48mm |
| Raw Material Diameter | ≤ 1100mm (Other size to be specified) |
| Raw Material Core Diameter | φ76mm (Other size to be specified) |
| Perforation Pitch | 4 pieces of Anvil blades(115mm,230mm) Other size to be specified |
| Machine Speed | 0-180m/min |
| Programming Controller | PLC (Delta) |
| Unwinding Unit | 1-3ply (Other size to be specified) |
| Air-System | 0.5-0.8MPA (provide by user themselves) |
| Power | 18kw |
| Dimensions | 10000x3000x2000mm (LxWxH) |
| Machine Weight | 12 Tons ( All machine 40mm Wallboard type insititutions) |
| Basis Weight | 1-3ply, 14-30gsm |
| Edge Embossing Unit | Steel to steel, Independent pneumatic control |
| Embossing Unit | Big roll steel to steel embossing |
| Voltage | 380V,50Hz |
2. AUTOMATIC LOG SAW CUTTING MACHINE
|
MODEL
|
150 LOG SAW MACHINE (DOUBLE CHANNEL) |
| Jumbo Roll Max Width | 1750mm(Other size can be specified) |
| Jumbo Roll Diameter | φ100- φ115mm (Other size to be specified) |
| Design Speed | 150 cut/min |
| Stable Speed | 100 cut/min |
| Grinding System | Pneumatic Sharpen, grinding time can be set |
| Driving System | Delta Servo Motor |
| Power | 11kw |
| Dimension | 6500x2500x2000mm(Other size to be specified) |
| Blade Diameter | φ610x4.7mm |
| Voltage | 380V,50Hz |
| Weight | about 4.5 Tons |

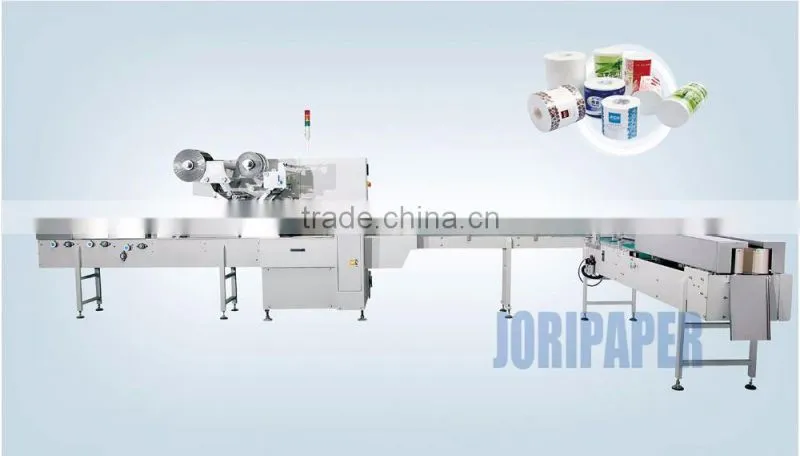

3. AUTOMATIC SINGLE TOILET ROLL PACKING MACHINE
|
MODEL
|
QWZ450 |
| Packing speed | 50-80bags/min |
| Film width range | 300 -400mm |
| Dia. of paper roll (Finished bag size) | 100 -130mm |
| Bag length (Finished bag size) | 70 -400mm (adjustable) |
| General power | 3.75kw |
| Motor power | 1.0;0.75kw |
| Machine weight | 1200kg |
| Outer dimensions | 6400x965 x 1700mm |
| Power supply type | 220V 50Hz |
| Packing film | CPP, OPP,etc. |
|
MODEL
|
SEMI-AUTO MUILTI ROLLS PACKING MACHINE |
| Power | 380V 50HZ |
| Main circuit power | 0.74KW |
| Sealing Sealing transformer power | 0.45KW |
| Total Power | 1.19KW |
| Pressure | 0.4 --- 0.5MPA |
| Machine size | 6.5X1.2X1.2M |
Toilet Paper Roll Sample
Our professional Work Team who will be available waiting for you at 24 hours per day, 7 days per weeks.
Our Mission:
To provide a More Cost Efficient Solution for our customers. Suitable is the Best Way, Best for customers, for local market and even for our future. We treat it as our responsibilty in every business.
Our Goal:
To get Trust from every customers who contacted with us. To show our sincerely in communication and our professional skills in business, and even to provide the most suitable machines for them to satisfy with their special need. We hope we can get the comments like: Best Machines, Best Service and Best Person which we met, after customers received our machines in their local side.
Our Culture:
To be Professional and Progress together. We treat every staffs as a family member, We learned, We shared and We worked together to reach our goals. We will be better and better as long as we ALL progress together every minutes. A little change everyday makes a big difference someday.
DALIAN JORI CO.,LTD will be your Best Choice for business cooperation of ALL kinds of Engine Rebuilding & Auto Maintenance Machines in China. Contact Us Now !
1. One-stop Service for our customers. After you find us on Internet or Exhibition and want to engage in Engine Rebuilding Machine field, Any questions can be solved by our professional Sales Managers and skilled Engineers promptly.
2. At the beginning of business, Considering customer specially situation and demands, Our Sales Manager will select and introduce some suitable machines for customers after discussing with our engineers. Customers can select the RIGHT one which they prefer to purchase and then go on further understanding until placing orders with us.
3. When we start to manufacturing your machines according to Sales Contracts, We will Keep tracking production plan and posting to customers every weeks. Exact Delivery Time will be informed ONE week beofore delivery.
4. ALL of our machines will be tested and had trial production in our factory before leaving our factory and they are shipped out only after customers are satisfied with them. Customers can send your technicians or the Third party inspection agency to our factory to check and accept machines before delivery.
5. Fast and security shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.
6. Upon receiving our machines, JORI will start to supply our promptly After-sales service for you. Any questions can be solved as soon as possible by our Customer Service Representative.
7. All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period. Standard spare parts and accessories with our machine will be supplied together in wooden case when shipment.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
