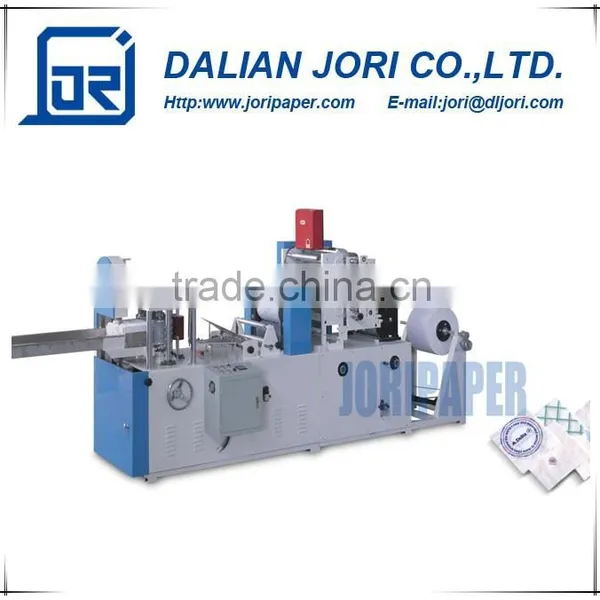

For Small Business 330x330 Napkin Tissue Paper Folding Machine
Features:
140-600 Automatic Napkin Paper Folding Machine is the newly equipment which absorb high technology and advance system, fully automa tization inspect system, with the high produc tivity, correct printing and easy operation. Which is the ideal equipment for production of top grade napkins.
The main characteristics:
1. Adopt flexible printing unit, high precession ceramic anilox roll, making the water ink equally
spread and print out extract and stereo pattern.
2. Equipped with imported heated tube, high power drying system, improving the drying speed.
3. Infeeding part adopt imported automa-tic tension control.
4. Equipped with steel to paper rolls, which can keep constant temperature. The embossing pattern
is according to the customer's requirement,choosing steel to rubber rolls or steel to steel rolls. (Option)
5. Varied frequency speed controller, PLC system, Automatic protection for paper break.
6. It can add web guilding system , automatic Microcomputer chromatically System and Image
Inspect System according to the requirements (Option)
7. It can add close type automatic printing ink circulator system according to the requirements.
Specification:
140-600 | ||
Model |
I |
II |
Capacity |
80-100M |
150-180M |
Finished Products unfolded Size(mm) |
(230x230)-(460x460) |
|
Folded Size(mm) |
(115x115)-(230x230)±2 |
|
Raw Material Diametere(mm) |
1200 (Other sizes are available) |
|
Raw material Core Diameter(mm) |
76.2(Other sizes are available) |
|
Programmable controller |
MITSUBSHI Programmable Controller (PLC) |
|
Counter |
Electronic counting |
|
Driving Unit |
Frequency conversion speed regulator |
|
Color printing |
Flexographic printing |
|
Printing unit driving type |
Gear-box driving(printing) |
|
Tension regulation |
Imported automatic constant paper tension controller |
|
Printing system A |
Machine stop and automatic using ink |
|
Anilox roll |
Ceramic anilox roll 200-500line |
|
Embossing Unit |
Steel to Felt. Steel to Rubber. Steel to Paper, Steel to Steel |
|
Calendering |
Steel to Rubber, Steel to Steel |
|
Printing system B |
Automatic Ink Circulator System (Option) |
|
Color Matching |
Automatic Microcomputer color printing matching System (Option) |
|
Monitor System |
Image detecting System,automatic stop when paper break(Option) |
|
Web Guiding System |
Option |
|
Power |
4~7.5kw |
|
Dryer |
hot wind drying system 10-15kw |
|
Dimension(L×W×H) |
5900x1600x2290 |
|
Weight |
5000-6500kg |
|
Option |
|
|
Color printing |
4-6colors |
|
Printing system B |
Automatic Ink Circulation System |
|
Color Matching |
Automatic Microcomputer color printing matching System |
|
Monitor system |
Image detecting System |
|
Anilox roll |
Ceramic anilox roll 200-500line |
|
Calendering |
Steel to Rubber, Steel to Steel |
|
Web Guiding System |
Option |
|
Our professional Work Team who will be available waiting for you at 24 hours per day, 7 days per weeks.
Our Mission:
To provide a More Cost Efficient Solution for our customers. Suitable is the Best Way, Best for customers, for local market and even for our future. We treat it as our responsibilty in every business.
Our Goal:
To get Trust from every customers who contacted with us. To show our sincerely in communication and our professional skills in business, and even to provide the most suitable machines for them to satisfy with their special need. We hope we can get the comments like: Best Machines, Best Service and Best Person which we met, after customers received our machines in their local side.
Our Culture:
To be Professional and Progress together. We treat every staffs as a family member, We learned, We shared and We worked together to reach our goals. We will be better and better as long as we ALL progress together every minutes. A little change everyday makes a big difference someday.
DALIAN JORI CO.,LTD will be your Best Choice for business cooperation of ALL kinds of Engine Rebuilding & Auto Maintenance Machines in China. Contact Us Now !
1. When we start to manufacturing your machines according to Sales Contracts, We will Keep tracking production plan and posting to customers every weeks. Exact Delivery Time will be informed ONE week beofore delivery.
2. ALL of our machines will be tested and had trial production in our factory before leaving our factory and they are shipped out only after customers are satisfied with them. Customers can send your technicians or the Third party inspection agency to our factory to check and accept machines before delivery.
3. Fast and security shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.
4. All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period. Standard spare parts and accessories with our machine will be supplied together in wooden case when shipment.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
