Shanghai Wanshen continuous automatic Cartoning Machine
- Shanghai or other ports to be confirmed
- T/T
You May Like
-
Wanshen Functional Automatic Encasing machinery for Tubes
-
Wanshen Cartoning Machine, Machine Manufacturer, Cartoner machine
-
Shanghai Wanshen HDZ 100P Bottle Automatic Cartoning Machinery
-
Wanshen HDZ 100P Face Cream Automatic Cartoning Machine
-
Shanghai Wanshen Cartoning Machine for bottle, Automatic Packing Machine
-
Shanghai Wanshen HDZ 100D Face Mask Automatic Cartoning Machine
Product Details
Condition | New | Function | Other, cartoning, pack tube, bottle or blister into a carton automatically | |
Application | Chemical, Commodity, Food, Medical, Other, Chemical, Commodity, Food, Medical, Cartoning machine for soft tube, blister or bottle | Packaging Type | Bottles, Capsule, Foil | |
Packaging Material | Glass, Plastic | Automatic Grade | Automatic | |
Driven Type | Electric | Voltage | 380V.50HZ | |
Power | 3.7KW | Place of Origin | Shanghai, China | |
Brand Name | Wanshen high speed cartoning machine | Model Number | WS 260 | |
Dimension(L*W*H) | 3800mm x 1200mm x 1500mm | Certification | ISO9001 | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

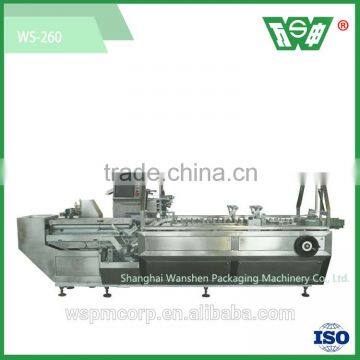

Multifunction High Speed Automatic Cartoning Machine for Soft tubes, Blisters or Bottles.
Main applications
The machine is mainly used for high-speed automatic cartoning of soft tubes, boards or bottle types.
Characteristics and Specifications
1. Using PLC and the closed-loop servofrequencycircuit automatic control system.
2. The machine adopts human-computer interface airlines operating system, automatically display box speed, quantity and other performance parameters such as the fault causes, and also display methods of operation and maintenance.
3.Adopts self-lubricating system and makes running more smoothly.
4.The body adopts whole-exposure patented technology; it can make repair and regulation more convenient.
5.It can be implemented that adjust and use of more specifications at the specific confine on the same machine.
6.Manual and automatic conversion
7.It can simultaneously complete the folding and cartoning of the instructions.
8.It can print three batch numbers on the box, in additional, it also has the functions of print serial numbers.
9.Incorporates automatic inspection system and has the functions of automatic suspension and removal of non-conforming products.
10. It can be installed with hot melt adhesive machine.(optional)
11.It is adjusted through dial and uses friendly mechanical memory device, and this can quickly and easily adjust the location of the relative devices, replacement of the products size.
Main technical parameters
Speed | Specifications of the paper carton: | Specifications of the manual: |
150-260boxes/min | (70mm-220mm)*(18mm-140mm)*(18mm-85mm) | (110mm-160mm)*(90mm-250mm) |
Power | Total Power | Equipment dimensions |
380V.50HZ | 3.7KW | 3800mm*1200mm*1500mm |
Compressed air pressure | Compressed tolerance | Weight |
0.6Mpa | 6M3/hour | 2200kg |
1. The 19th China International Pharmaceutical Industry Exhibiton
Date: 28th-31th Oct, 2014
Address: 1 Hall, Shenzhen Convention and Exhibition Center , Shenzhen
Booth No.: G117
2. 48th(2014 Autumn)China International Pharmaceutical Machinery Exposition
Date: Nov.07 (Fri.) - 10(Mon.), 2014
Venue: Chongqing International Expo Center
Shanghai Wanshen Packaging Machinery Co., Ltd. was fully invested in 1997 by Jiangxi Wanshen Head
office. Our company is the one with the combination of researching, designing, manufacturing, marketing, trading
and servicing, which is a member of National Pharmaceutical Equipment Industry Association and also is a
member of Chinese Packaging Federation. The company has passed on ISO9001 international product quality
attestation, and has a strong research and design capability.
Our company develops and manufactures the HDZ-60B bubble-cap plate cut automatic cartoning machine,
which is ranked the country’s leading level, filling the domestic blank and obtains Chinese national patent
certificate. On the basis of the HDZ-60B, we successively explore five series of HDZ-100 and HDZ-150
multifunctional packaging machine and other machines of more than 40 specifications. Our machines, which apply
to cartoning automatically for pharmaceutical, food, cosmetic, health care products and light industrial goods, meet
requirement of GMP, and have been sold to hundreds of manufacturer at home and abroad.
Our multifunctional packaging machines has been awarded as “national new product” by the State Economic
and Trade Commission, and the manufacturing project has been listed as “the promoting project of national high
technology industrialization” by SDPC and has achieved the innovation fund for STF. Meanwhile our company
has gained many honors, such as “excellent enterprise”, “provincial private science and technology enterprise”,
etc.
Our ability to develop technology is mature, and we can design detail project and regulate relevant device
according to customer’s needs. We warmly welcome friends from all walks of life to visit our company and enjoy
the high quality products, reasonable price, excellent service and creative spirit we offer.
