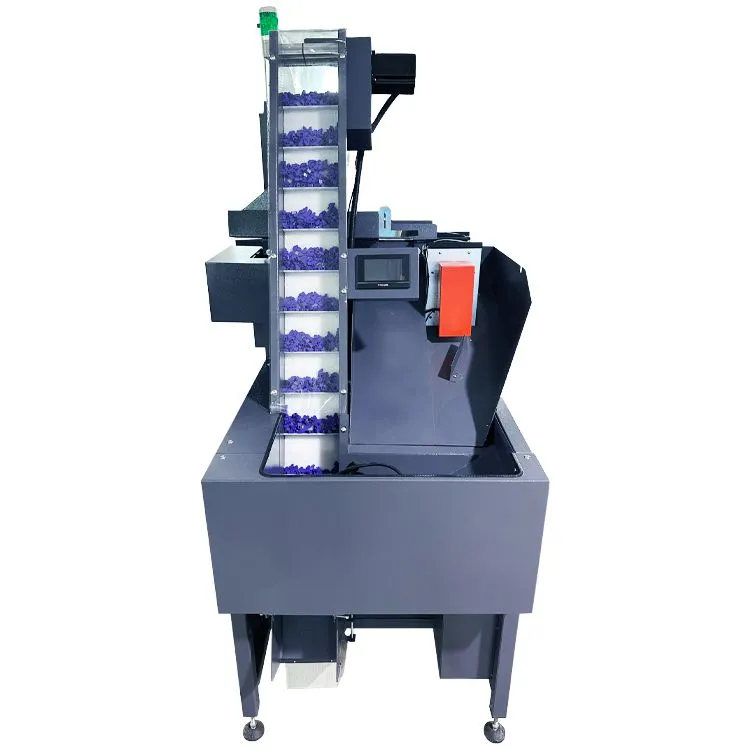

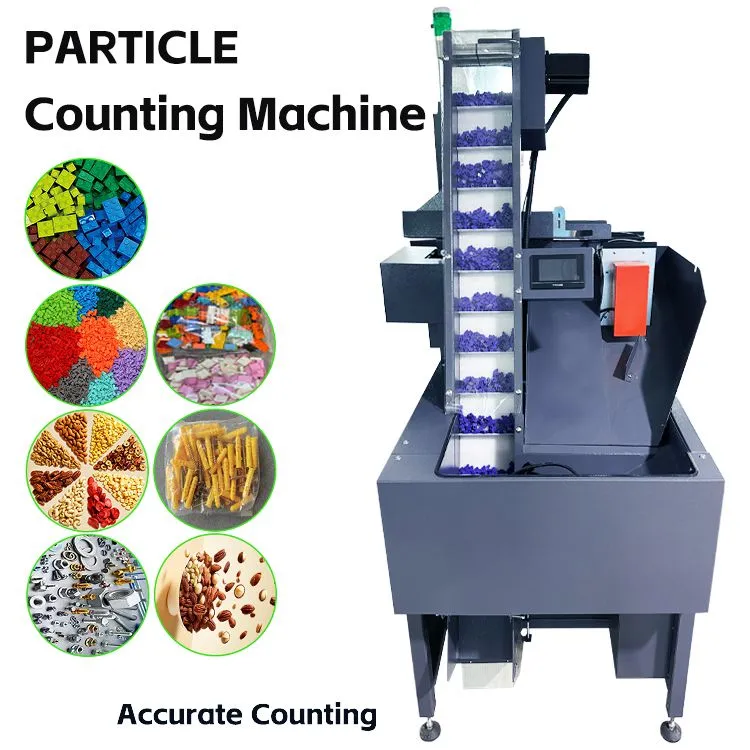

Vertical Packaging Machine Particle Counting Machine
Negotiable
MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Counting packing machine
Packaging:
Bag
Application:
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Other, hardware machinery, toy building blocks, food nuts
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
30 days
Related Products
-
Particle Packaging Machine Counting Packaging MachineNegotiableMOQ: 1 Combo -
Particle Packaging Machine Counting Packaging MachineNegotiableMOQ: 1 Combo
-
High Accuracy Linear Weigher 4 Head Linear Weigher Machine Automatic Weighing and Dispensing MachineNegotiableMOQ: 1 Combo
-
High Accuracy Linear Weigher 4 Head Linear Weigher Machine Automatic Weighing and Dispensing MachineNegotiableMOQ: 1 Combo
-
High Accuracy Linear Weigher 4 Head Linear Weigher Machine Automatic Weighing and Dispensing MachineNegotiableMOQ: 1 Combo
Type
Other, Counting packing machine
Packaging
Bag
Application
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Other, hardware machinery, toy building blocks, food nuts
Automatic Grade
Automatic
Packaging Material
Other, Film, plastic, composite material
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal, Other, accurate counting
Driven Type
Electric
Material Type
Other, Particles, hardware accessories, screws, food particles
Origin
Guangdong, China

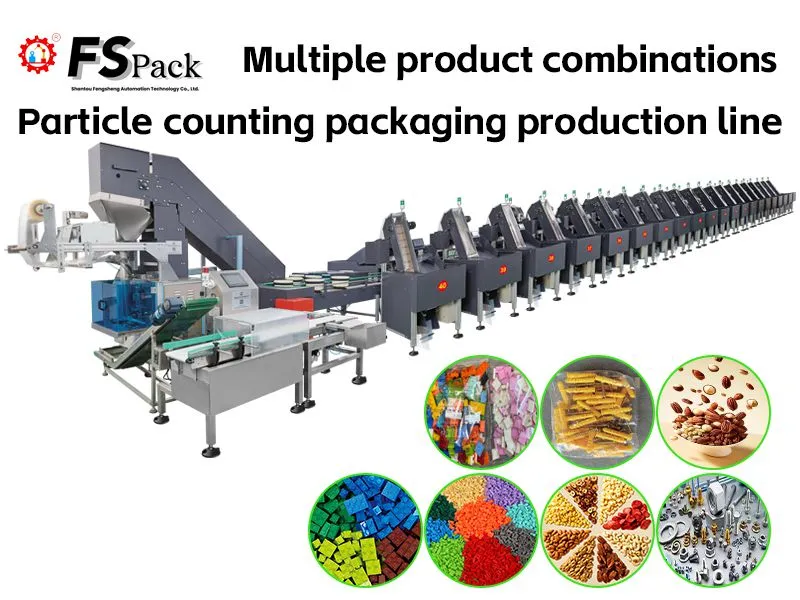

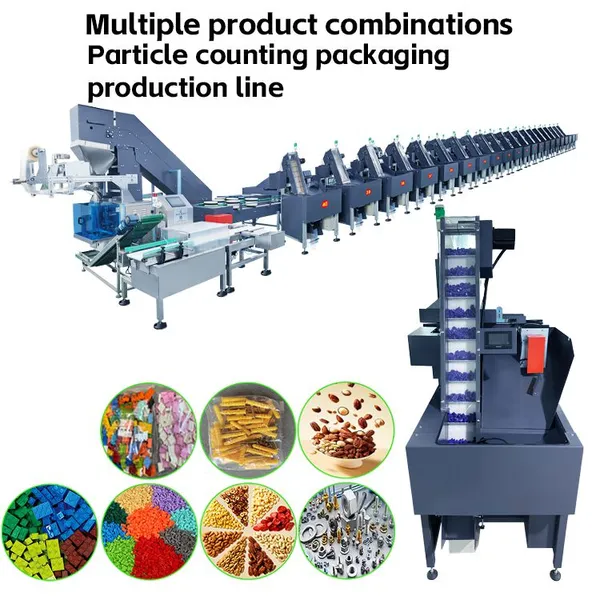

Combined production line
Product introduction
| Product Specifications: | Device Model FS-A501 |
| Dimensions: | 26.5X2.4X2.2M (take 40 stations as an example), the length of the model is determined according to the configuration |
| MACHINE WEIGHT: | ≈1500KG~3500KG (Model weight depends on configuration) |
| Maximum production capacity: | 0--35 bags/min |
| Power(V/W): | AC380V 45Kw 50H2 |
| BAG SIZE WIDTH (MM): | WIDTH: 80~230 (ADJUSTABLE), LENGTH: 50~250 (ADJUSTABLE) MM |
| Packaging film material: | plastic or aluminum composite film |
| Maximum size of packaging film: | width: 480mm, thickness: 0.03-0.08mm |
| Sealing form: | Lapel bag |
| Equipment features: | 1. This equipment adopts all-electric drive, imported PLC control system, man-machine operation interface, hoist feeding system, which can be compatible with the intelligent counting of a variety of materials and the finished packaging of a variety of film formers, so as to achieve high efficiency, high precision, high energy saving, low loss, less labor, small land occupation, high reliability and other characteristics; It has easy operation, intelligent rejection, intelligent one-key clearing, low noise, simple replacement, easy feeding, large capacity, and reduces the workload and operation errors of frequent feeding. |
| 2. The production line can configure the number of counting units according to customer requirements, with high flexibility, and the number of units can be increased at any time in the later stage. | |
| Scope of application: | suitable for food, medicine, cosmetics, hardware parts, toy building blocks, electronic accessories and various material packaging. |
