Specifications
pharma packing machine.Insert bottle into box with leaflet automatically.
Crital unit in medical packing line.

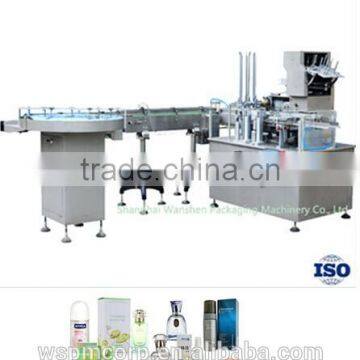

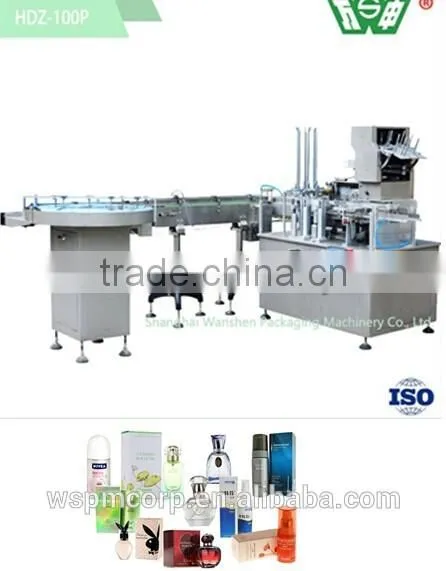

Shanghai wanshen HDZ 100P automatic pharma packing machine for bottles
Main function & application

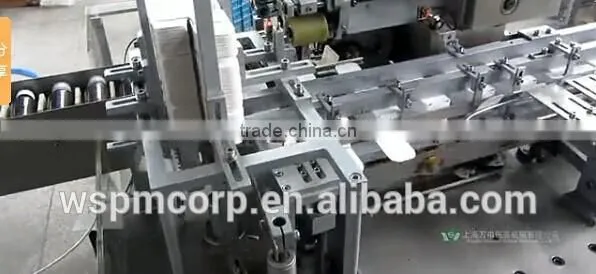

The machine can insert bottles( round and square, flat or special shaped) with the manual into a box automatically. It is widely used in medical industry and it can be connected with the front-end equipment like labeling machine.
Shanghai Wanshen HDZ 100P automatic pharma packing machine for bottles.
Main Characteristics
1.Speed-regulated with variable frequency and adopt PLC automatic control system.
2.Adopt man-machine interface operating system with automatic indication of packaging speed and counting.
3.Box packaging of different specifications may be conducted on the same machine.
4.Automatically folded description sheets can be prepared and 3-line lot numbers in steel seal can be printed at the same time.
5.Switchover between manual and automatic operation.
6.Automatic inspection system for alarm and machine switch-off in case of non-conforming products.
7.Can be connected with hot melt adhesive machine.(optional)
Main Parameters
| Speed | Specifications of Paper box(Length*Width*Height) | Specifications of manual(Width*Length) |
| 80-150boxes/min | Size: (50mm-120mm)*(25mm-50mm)*(25mm-50mm) | unfolded size:(110mm-160mm)*(90mm-250mm) |
| Quality: 250~400g/m2 | Quality:40~80g/m2 | |
| Power | Total Power | Equipment dimensions |
| 380V.50HZ | 1.1kw | 2300mm*1200mm*1500mm |
| Compressed air pressure | Compressed air consumption | Weight |
| 0.6Mpa | 30-90l/min | 850kg |
Remark: 1.For size of box beyond the specified, we can customize accordingly.
2.Different packaging material and different number of items to be boxed will affect the packing speed
Shanghai Wanshen Packaging Machinery Co., Ltd. was fully invested in 1997 by Jiangxi Wanshen Head
office. Our company is the one with the combination of researching, designing, manufacturing, marketing, trading
and servicing, which is a member of National Pharmaceutical Equipment Industry Association and also is a
member of Chinese Packaging Federation. The company has passed on ISO9001 international product quality
attestation, and has a strong research and design capability.
Our company develops and manufactures the HDZ-60B bubble-cap plate cut automatic cartoning machine,
which is ranked the country’s leading level, filling the domestic blank and obtains Chinese national patent
certificate. On the basis of the HDZ-60B, we successively explore five series of HDZ-100 and HDZ-150
multifunctional packaging machine and other machines of more than 40 specifications. Our machines, which apply
to cartoning automatically for pharmaceutical, food, cosmetic, health care products and light industrial goods, meet
requirement of GMP, and have been sold to hundreds of manufacturer at home and abroad.
Our multifunctional packaging machines has been awarded as “national new product” by the State Economic
and Trade Commission, and the manufacturing project has been listed as “the promoting project of national high
technology industrialization” by SDPC and has achieved the innovation fund for STF. Meanwhile our company
has gained many honors, such as “excellent enterprise”, “provincial private science and technology enterprise”,
etc.
Our ability to develop technology is mature, and we can design detail project and regulate relevant device
according to customer’s needs. We warmly welcome friends from all walks of life to visit our company and enjoy
the high quality products, reasonable price, excellent service and creative spirit we offer.
Engineers are available to service machinery overseas.
If the engineer is requested to be on site to provide the service, then the user shall be responsible for the resonable fees such as accommodation, transportation, visa, flight ticket(back and forth), salary and allowance and etc.
We have rich and very good experience in cooperating with more than 1500 customers like famous pharmaceuticals and cosmetics manufacturers at home and abroad. We keep offering our customers by high quality, reasonable price and excellent service.
