Help Center2ton Hand Air Winch With Two Way Ratchet
Related Products
-
5ton Durable Air Winch Coal or Mine WinchUS$ 3,500 - 6,800MOQ: 1 Set -
10T Mining Air Winch Used forNegotiableMOQ: 1 Set
-
10T Air Winch Used for Lift and Drag Heavy Cargo ,drilling Platform,marine,minnings,engineeringNegotiableMOQ: 1 Set
-
2 Ton Gear Air WinchNegotiableMOQ: 1 Set
-
Remote Contral 1 Ton Boat Anchor Air WinchUS$ 3,600 - 5,600MOQ: 1 Set
Specifications
1.CCS,API certification2.high quality with competitve price
3.anti-explosive under extremely work

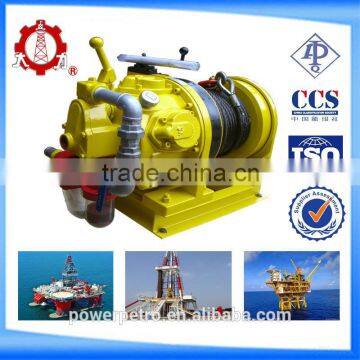

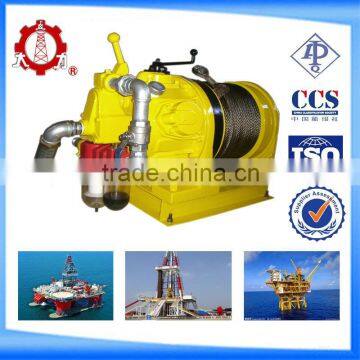

JQH20 air winch is a kind of manual operated single drum type air winch. It adopts compressed air as its power to drive air motor to drive air motor, driving drum via two grades gears ( to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo. This winch is widely used for drilling, marines, minings, engineering sites, etc to pull heavy cargo.
ⅡSecurity
Considering security,it is specially designed with disc air brake for fear of unexpected accidents.
Ⅲ Application Places
Owing to its simple operation,high starting torque and low-maintenance under any extremely conditions,the JQH20 Air Winch is widely used for drilling platform,marines,minings,engineering sites, construction sites, the second platforms of oilfield off-sea and inland to pull,haul ,lift heavy cargo and other work, and especially fit for dragging drill pipes and casing pipes.
Why choose us:
1,Small in size, light in weight,high in mobility.
2,Flexible to perform clockwise ans anti-clockwise rotation.
3,High practicability with anti-explosive function,especially stable ans reliable in inflammable,explosive,wet,damp,and other extremely working enviroments.
4,High starting torque anables start with load.
5,Anti-overload function.
6,Equipped with disc air brake function, which enables the winch automatically in brake when stops.
Technical Prarmeters:
Name |
Parameters |
|
Pressure of Compressed Air |
0.6-0.8 MPa |
|
Rated Pull Force |
2 Tons |
|
Rated Cable Speed |
25m/min |
|
Wire Rope Diameter |
13 mm |
|
Cable Storage |
50 M |
|
Piston Air Motor |
Max. Power |
12 kW |
Cylinder Number |
5 pcs |
|
Stroke of Piston |
64 mm |
|
Air Consumption |
135 L/S |
|
Drum |
Inner Diameter |
200 mm |
Width |
219 mm |
|
Wheel Rim Diameter |
400 mm |
|
Configuration |
Length |
940 mm |
Width |
410 mm |
|
Height |
750 mm |
|
Weight |
310 kg |
|
Company Introduction:
Established in 1970, Yantai Petroleum Machinery Co., Ltd is High and New-tech Enterprise in Shandong Province, with an area of 39,300 square kilometers, capital assets up to RMB403, 638,000.00, and 320 staff in all, of which 89 are technicians.
Our main products cover: JQH Air Winches, JQHSY Remote-control Air Winches, TMY,TMW,TMH series Air Motors, Drilling Rod Kelly Spinners and Tap Kelly Spinners, and pre-supply oil pumps, of over 10 series and totally more than 30 varieties, which are all widely used in oilfields, mining, shipbuilding, engineering machinery, combustion engine, etc.
Our company is equipped with first-rate automatic Performance-testing System, gaining the Certificate of ISO: 9001-2008, American Petroleum Institute (API), CCS certification and other security certificates. Thanks to our 40 years matured techniques, advanced equipment, precise testing instruments and modern management system, we possess good reputation from domestic and abroad.
