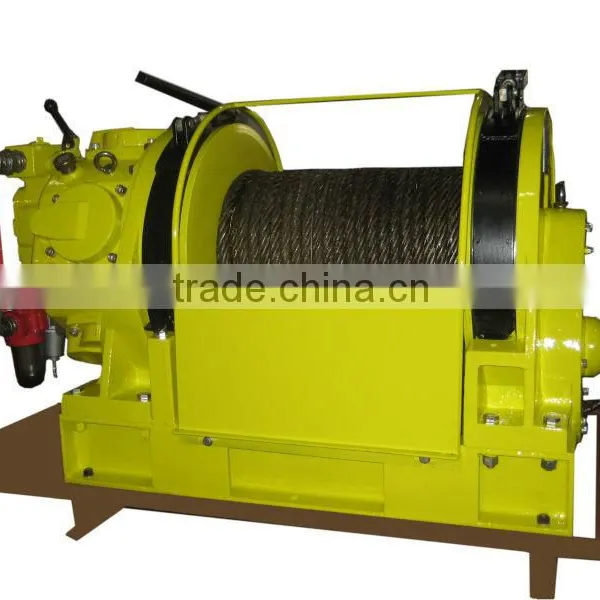

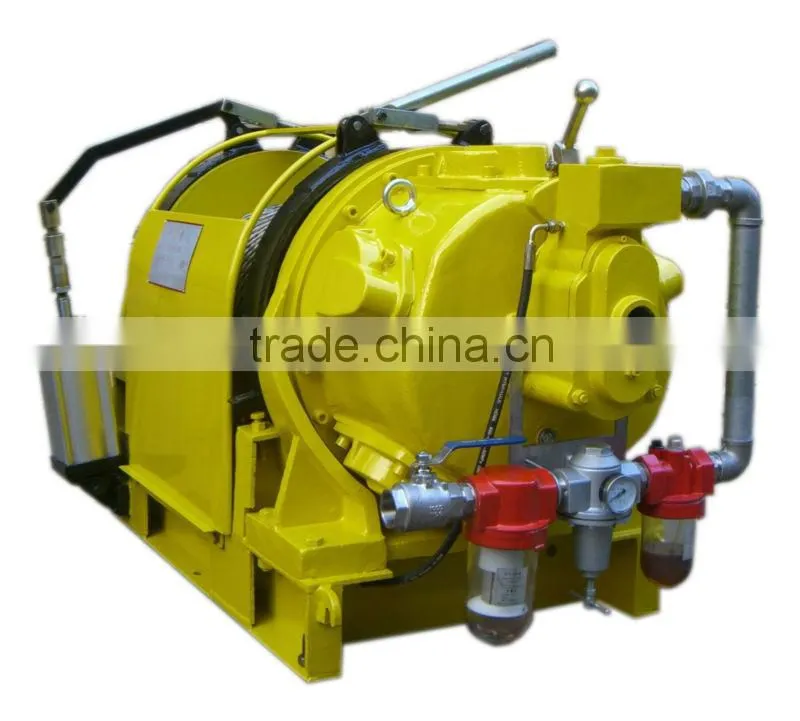

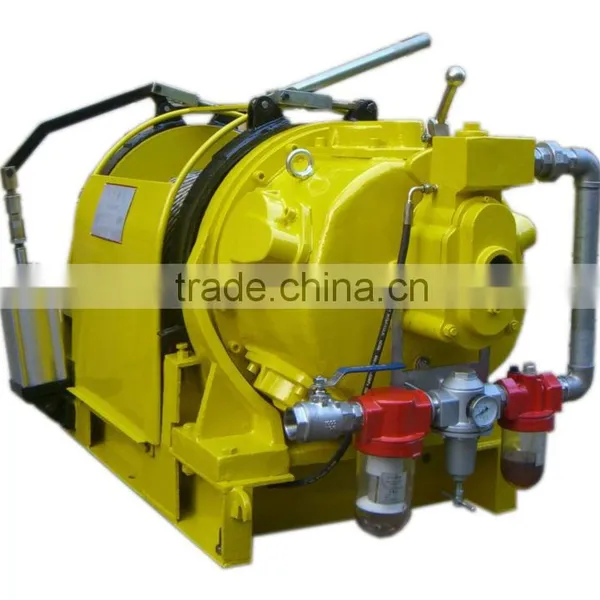

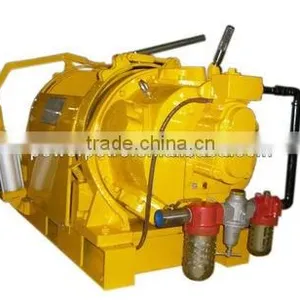

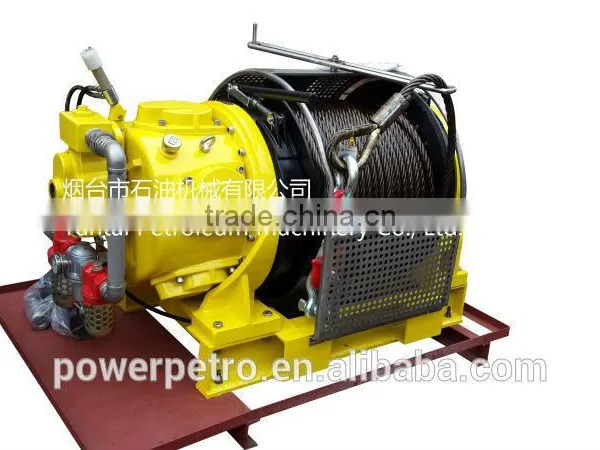

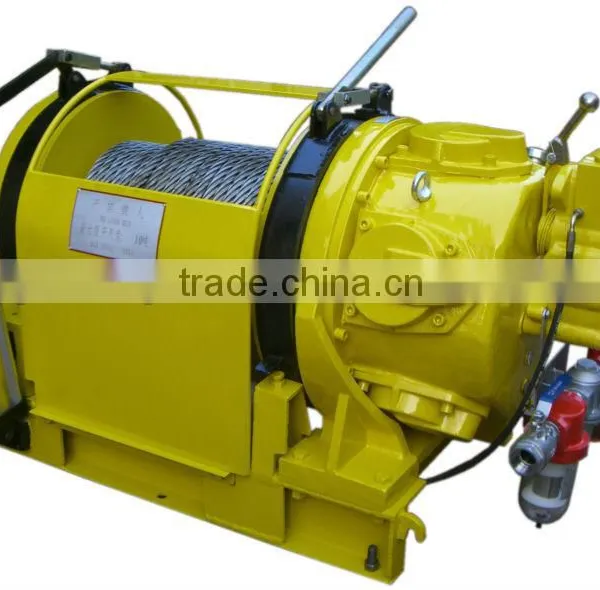

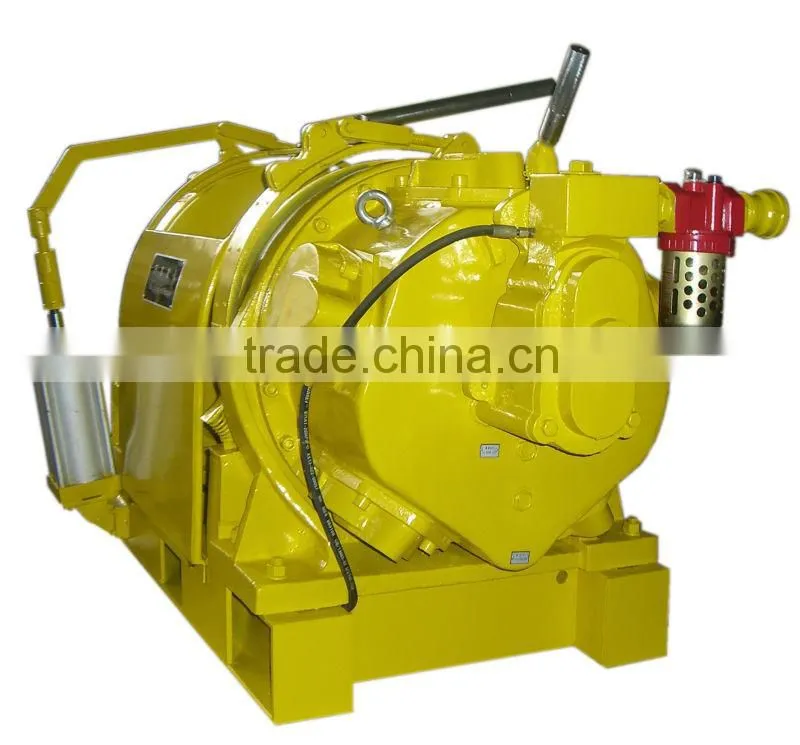

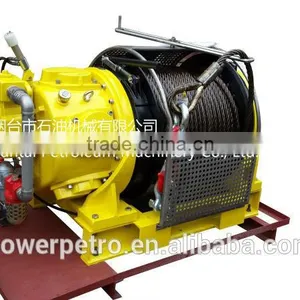

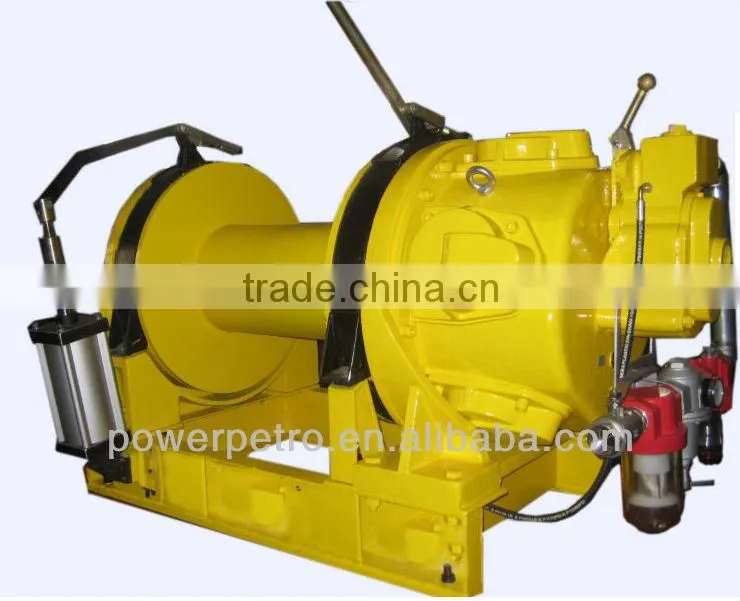

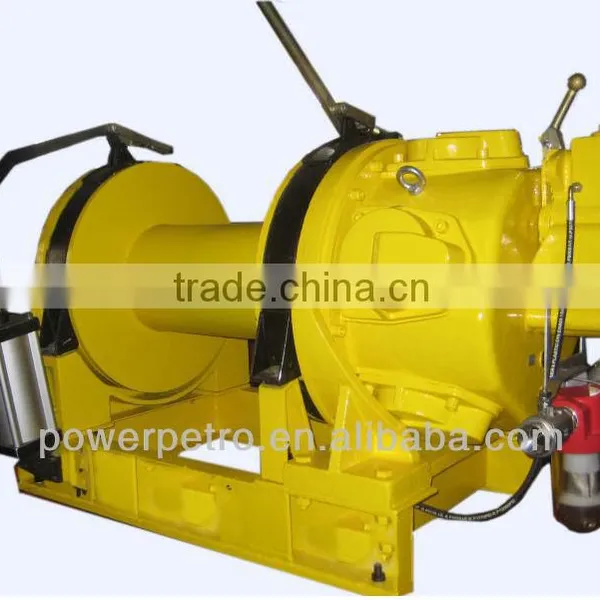

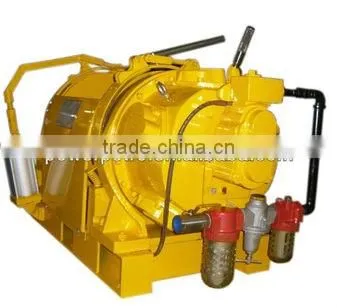

Help Center10T Air Winch Used for Lift and Drag Heavy Cargo ,drilling Platform,marine,minnings,engineering
Related Products
-
2 Ton Gear Air WinchNegotiableMOQ: 1 Set -
Remote Contral 1 Ton Boat Anchor Air WinchUS$ 3,600 - 5,600MOQ: 1 Set
-
JQH Series 5 Tonair Winch With Two Way Ratchet/trawl Winch for Lifeboat DavitUS$ 4,950 - 8,950MOQ: 1 Set
-
JQH50*24 5tons Tractor Winch Manual Air WinchUS$ 3,000 - 8,160MOQ: 1 Set
-
JQH 50*24 Series 5T Remote Control Air Winch for Sale for Offshore Platform Marine Oilfied MiningUS$ 4,980 - 8,200MOQ: 1 Set
ⅠWorking Principle
JQHS-100*20 is a kind of manual operated single drum type air winch. It adopts compressed air as power to drive the TMH30 Piston Air Motor, by operating manual diversion valve on the motor, driving drum via two grades gears(to reduce transmitting speed and enlarge torque)so as to lift and drag heavy cargoes. As well, the winch can perform hoisting, lowering and stopping actions to the wire rope.
Application Places
This winch is widely used for drilling platform, marines, mining, engineering sites, platform of oilfield off-sea and inland etc.to drag and pull heavy cargoes.
Why choose us:
1.Equipped with cylinder air brake which enables the winch automatically in brake when stops.
2. High practicability with anti-explosive function, especially stable and reliable in inflammable,explosive,wet,damp,and other extremely working environments.
3. Compact in size, light weight, portable to move and easy to install.
4. Variable speed control, flexible to perform clockwise and anti-clockwise rotation.
5. Reliable operation with little noise with muffler.
6. Low maintenance relieves your anxiety and assures you to use it freely.
7. The Normal Pull Force can be tailor-made to your requirement.
8. Especially fit for hauling and lifting drilling pipes on the second platform of oilfields.
9. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily.
Technical Parameters:
Items |
Parameters |
Measurement Unit |
Rated Working Pressure |
0.8 |
Mpa |
Rated Pull Force |
100 |
KN |
Rated Cable Speed |
20 |
m/min |
Piston Air Motor Model |
TMH30 |
----- |
Piston Air Motor Rated Power |
30 |
kW |
Piston Air Motor Air Consumption |
247 |
L/S |
Drum Diameter |
300 |
mm |
Drum Width |
620 |
mm |
Drum Wheel Diameter |
650 |
mm |
Cable Diameter |
24 |
mm |
Cable Storage |
200 |
m |
Air Inlet Diameter |
1 1/2 |
in |
Configuration |
1700*1050*1200 |
mm |
Weight |
1300 |
KG |
Certifications For Products:
