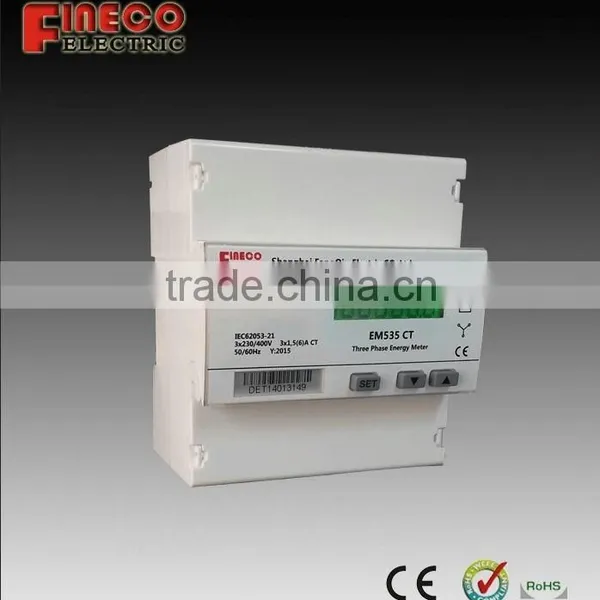

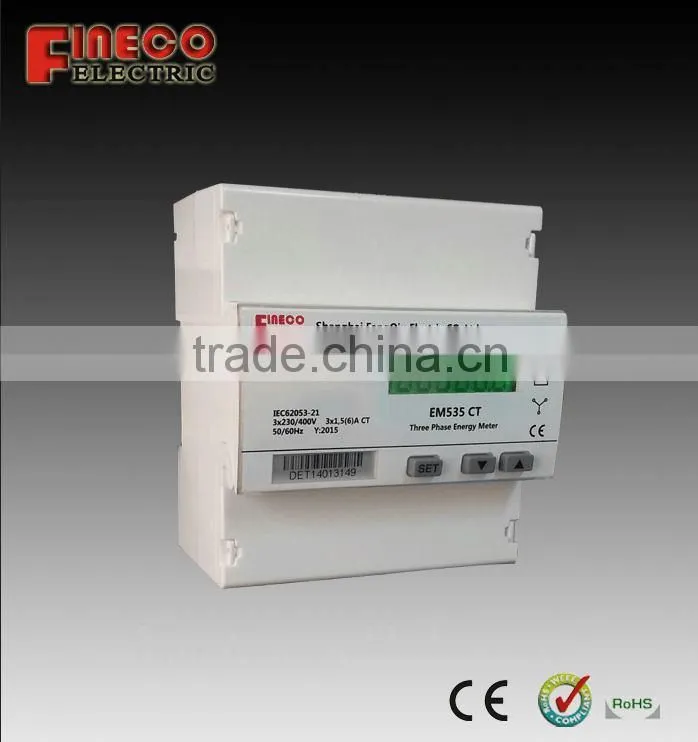

EM535 5 modular 3 phase meter 3 phase 4 wire modular energy meter
three phase 5 modular electronic meter
Benefits and Main Features
Three phase metering
Standard DIN rail Format (DIN43880)
Compliance to EN13757-3 and EN1434
CI.1 Accuracy (EN50470)
Energy consumption LED
Isolate pulse output and IR (DIN43864)
LCD display, 6 integer 1 decimal
Large clear backlight display
Internal transformer
Direct metering up to 65A or transformer metering 1.5(6)A
27 CT rate can be selected
Optional single-phase model
Communication port: M-bus
Can be set through front panel or via communications
Memory back-up (EEprom)
5 DIN modules
Meter specification
|
Direct connected meters |
Transformer connected meter |
|
Voltage(v) |
3×57.7/100V |
3×57.7/100V |
3×220/380V |
3×220/380V |
|
3×230/400V |
3×230/400V |
|
Operational voltage |
±70%Un |
±70%Un |
Current(A) | ||
- Iref |
5A |
1.5 |
-Itr |
0.5A |
0.15A |
-Imax |
65A |
6A |
-Imin |
0.25A |
0.015A |
-Ist |
20mA |
3mA |
|
|
|
|
|
Direct connected meters |
Transformer connected meter |
Power consumption of current circuits(VA) |
< 0.01 |
< 0.01 |
Power consumption of voltage circuits(W) |
< 1.3W |
< 1.3W |
General data |
|
|
Frequency (Hz) |
50/60 |
50/60 |
Memory back-up |
EEprom |
EEprom |
Environment resistance to heat and fire |
Terminal 960°C Cover 650°C |
Terminal 960°C Cover 650°C |
Enclosure material | ||
upper |
ABS+PC |
ABS+PC |
lower |
ABS+PC |
ABS+PC |
Pulse output |
|
|
Pulse width(ms) |
80 |
80 |
Pulse constant(imp/kWh) |
400 |
1600 |
LED | ||
LED constant |
400 |
1600 |
Dimension | ||
Width (mm) |
90 |
90 |
Height (mm) |
104.5 |
104.5 |
Depth (mm) |
60 |
60 |
Communication port
Smart meter has equipped communication port, we can program the meter’s operation data or reading via these 2 ports.(Pin24 pin25) by M-bus protocol output
|
M- bus output |
Protocol |
EN13757-3,EN1434-3 |
Data format |
8 data bit,Even,1 stop bit |
Baud rate |
300,2400(option),9600 |
Address range |
1-250 User settable |
Bus loading |
≤380m 250PCS ≤3600m 64PCS |
Cable |
JYSTY (n×2×0.8) |
Communication device
