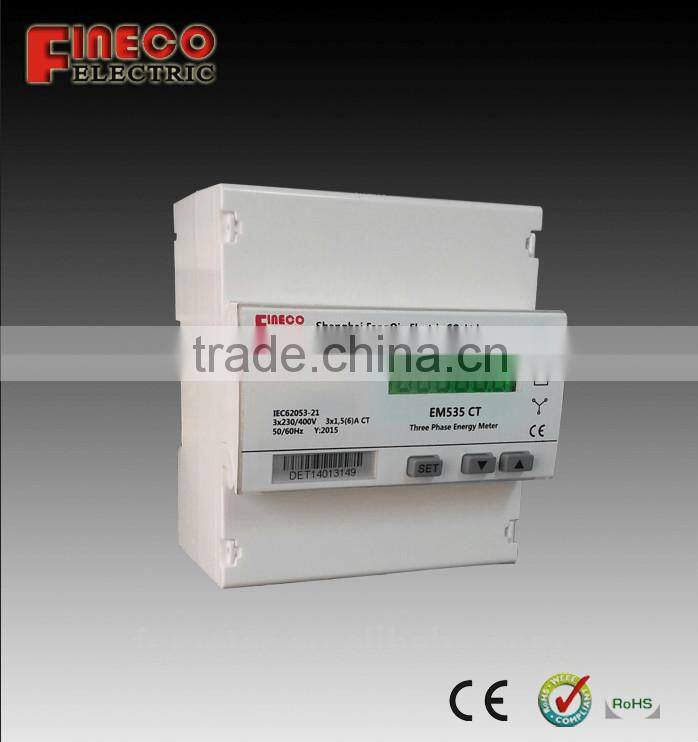

EM535 3 phase 5 modular energy meter din rail watt hour meter
Main Functions and features:
- Three phase metering , Standard DIN rail Format (DIN43880)
- IEC62053-21 Class 1.0
- LCD display, 6 integer 1 decimal
- Large clear backlight display
- Internal transformer
- Direct metering up to 65A,transformer metering 1.5(6)A
- 27 CT rate can be selected
- Optional single-phase model
- Smart communication port, RS485&M-bus can selected
- Can be set through front panel or via communications
- Isolate pulse output (DIN43864)
- Memory back-up (EEprom)
- 5 DIN modules
- CE approval
Measuring function:
Consumption indication
On the EM535’S front panel, there are five LED, respectively, for the Active energy pulse light, current reverse ,Phase L1/L2/L3 . The constant of the impulse is shown on the nameplate of the meter
Pulse output
Smart din rail energy meter is equipped with a pulse output which is fully separated from the inside circuit. That generates pulses in proportion to the measured energy. They are test pulse output (pins 20 & 23). Usually, the test pulse output is used as testing accuracy or reading purpose in close quarters.
Smart din rail energy meter is equipped with a pulse output which is fully separated from the inside circuit. That generates pulses in proportion to the measured energy. They are test pulse output (pins 20 & 23). Usually, the test pulse output is used as testing accuracy or reading purpose in close quarters.
Communication port
Smart meter has equipped communication port, we can program the meter’s operation data or reading via these 2 ports.(Pin26 pin27) . There are two options for the communication com,RS485 or M-bus.
|
RS485 output |
M- bus output |
Protocol |
Modbus RTU |
EN13757-3,EN1434-3 |
Data format |
8 data bit,Even,1 stop bit |
8 data bit,Even,1 stop bit |
Baud rate |
1200(option),2400,4800,9600 |
300,2400(option),9600 |
Address range |
1-256 User settable |
1-250 User settable |
Bus loading |
64pcs |
≤380m 250PCS ≤3600m 64PCS |
Cable |
AWG18 |
JYSTY (n×2×0.8) |
CT rate setting
On the smart meter display appear: CT followed by the currently memorized value .With the set key, you can move the cursor to the right .

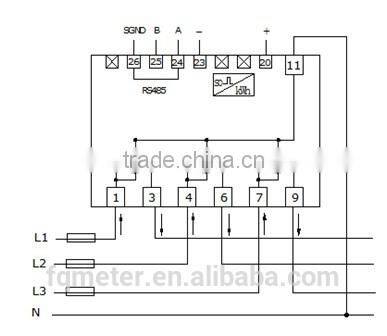

Wiring diagrams

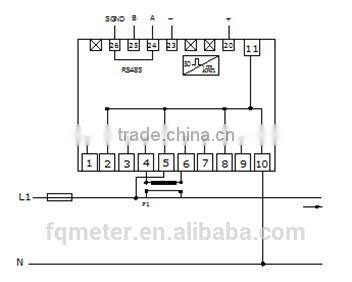

Direct connected meter Transformer connected meter

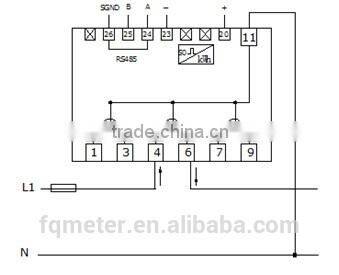

single phase diagram
Dimensions
