PM835 programmable digital panel meter
digit power meter panel
Specifications :
DIN 96×96 Standard Format
True-RMS Measuring Parameter
Current(per phase,residual,3 phase class 0.2
Voltage(L-L,L-N,3-Phase) class 0.2
Active power(per phase,3-Phase) class 0.5
Reactive power(per phase,3-Phase)
Apparent Power(per phase,3-Phase)
Power Factor(per phase,3-Phase)
Frequency
Energy Readings
Import active energy, export active energy ,total active energy
Import reactive energy, export reactive energy ,total reactive energy
Apparent energ
Demand Reading
Demand Current (per phase present, peak,3 phase)
Demand Voltage(per phase present, peak)
Demand active power(3 phase present, peak,)
Demand reactive power(3 phase present, peak,)
Power Analysis
Phase/wire Voltage THD, odd/even THD
Phase/wire Voltage 2nd-----60th Harmonic
Current THD, odd/even THD
Current 2nd-----60th Harmonic
Voltage/current unbalanced
Voltage/current sequence component
Digital input /output
2 independent digital inputs. Use as pulse accumulators or Digital inputs
2 independent digital outputs. Use as Modbus controlled outputs or Alam output.
Communication
RS485port
Baud rate: 1200bps~115200bps
Modbus-RTU protocol

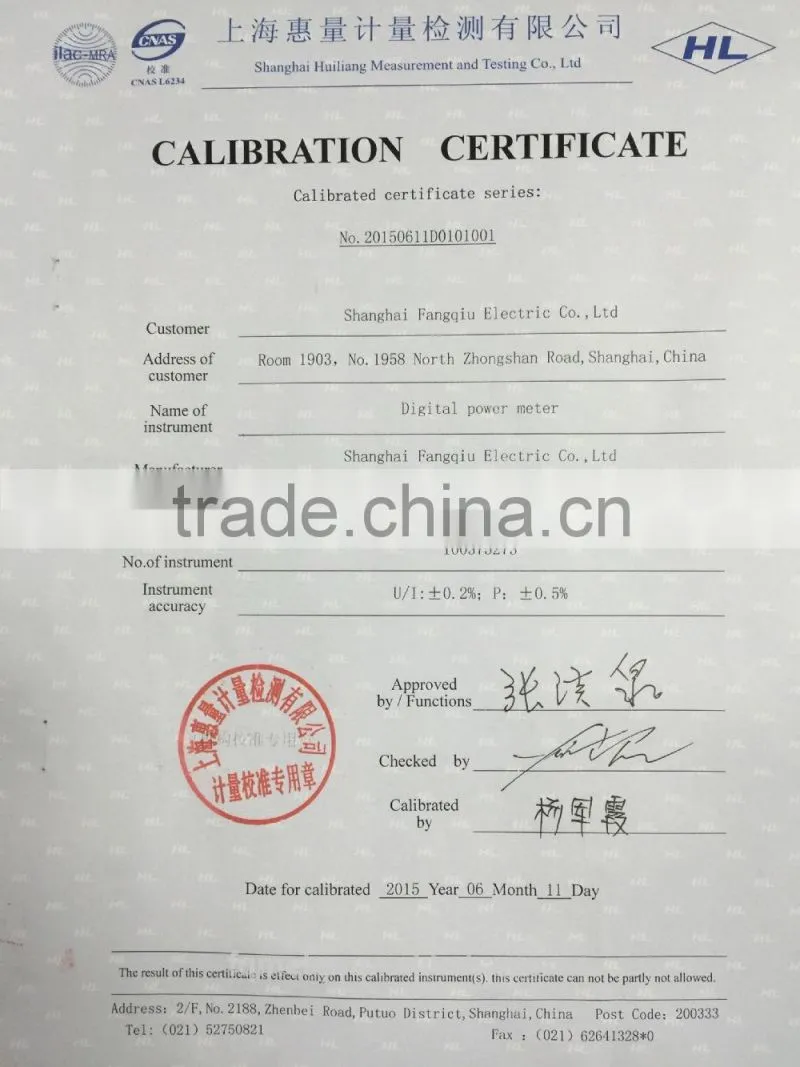

Calibration Certidicate:
