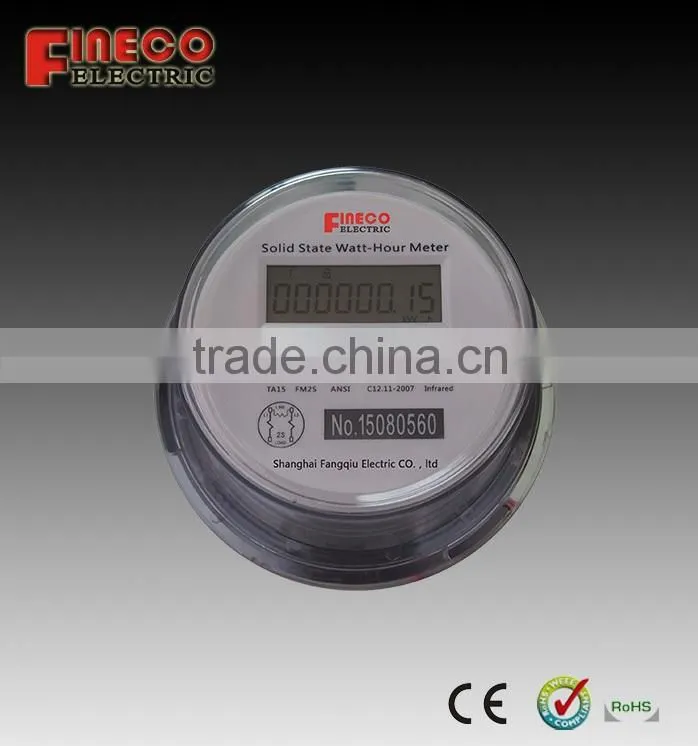

ANSI 2S two phase three wire socket energy meter
Accord with standard: ANSI C12.10-2004 Enclosure
ANSI C12.20-2002 Accuracy classes
Bi-directional active energy measuring , Bi-directional reactive measuring
Records MD and its occurent time for latest 12 months
RMS Volt, RMS Amp, Power factor, Frequency, Active power, Reactive power, Apparent power
TOU of 4 tariffs, up to 12 time periods per day
Summer time switch
Clock time verification function
Date memory recording, including 1-12 month energy consumption, MD and MD’s current time
Isolate pulse output and IR (DIN43864)
LCD display, 6 integer 2 decimal, meter display when power fails
Large clear backlight display
Internal transformer
RS485 communication port, modbus protocol
IR port
Memory back-up (EEprom)
Smart communication port, RS485 protocol
Memory back-up (EEprom)
Meter specification
Operating humidity ≤ 75%
Storage humidity ≤ 95%
Operating temperature -25°C - +55°C
Storage temperature -40°C - +70°C
Humanity 0 to 95%,non-condensing
International standard ANSI C12.10 &ANSI C12.20&ANSI C12.17
Accuracy class ANSI C12.20 Class 0.5
Nominal Voltage Form 2S ,240V AC range -20% to 15%
Frequency 60Hz±5%
Service Types Form 2S :2-phase ,3-wire.
Current CL100. TA15
Power Consumption
Voltage circuit 2W, 5VA
Starting current 20mA
Dimensions and wiring diagram
