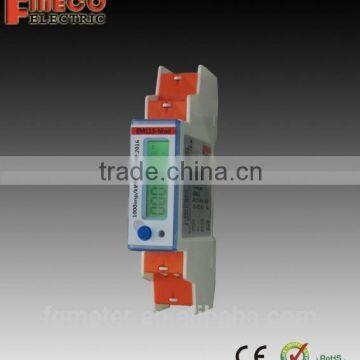

EM115 types of electricity energy meters din rail mount
Main Functions and features:
- CI.1(kWh) according to EN62053-21 .
- CI.2(kvarh) according to EN62053-23
- Energy consumption LED
- Bi-directional measurement IMP&EXP
- LCD display , green backlight display
- Instantaneous variables: V, A, W, var , PF, Hz
- 2 pulse output
- Smart communication port,
- RS485&M-bus can selected
- Self power supply
- Memory back-up (EEprom)
- 18mm wideth 1 modual
Meter specification:
Voltage(v) |
120/ 230 |
Operational voltage |
70%-130%Un |
- Iref |
5A |
-Itr |
0.5A |
-Imax |
45A |
-Imin |
0.25A |
-Ist |
20mA |
Power consumption of current circuits(VA) |
< 0.01 |
Power consumption of voltage circuits(W) |
< 1.3W |
General data |
|
Frequency (Hz) |
50/60 |
Accuracy | |
Current |
±0.5% |
Voltage |
±0.5% |
Frequency |
±0.1Hz |
Active power |
±1% |
Reactive power |
±2% |
LED |
Red led,1000imp/kWh |
Output specification | |
Pulse duration |
≥100ms < 120msec (ON), ≥120ms (OFF) |
Insulation |
4000 VRMS output to measuring inputs |
Memory back-up |
EEprom |
Connections |
|
|
Cable cross-section area |
Screw-type Min 2.5mm2 Max 10mm2 Other terminals: 1.5mm2 |
DIN House(W×H×D) |
17.5×90×67.5 |
Lcd content :
Wiring diagram
