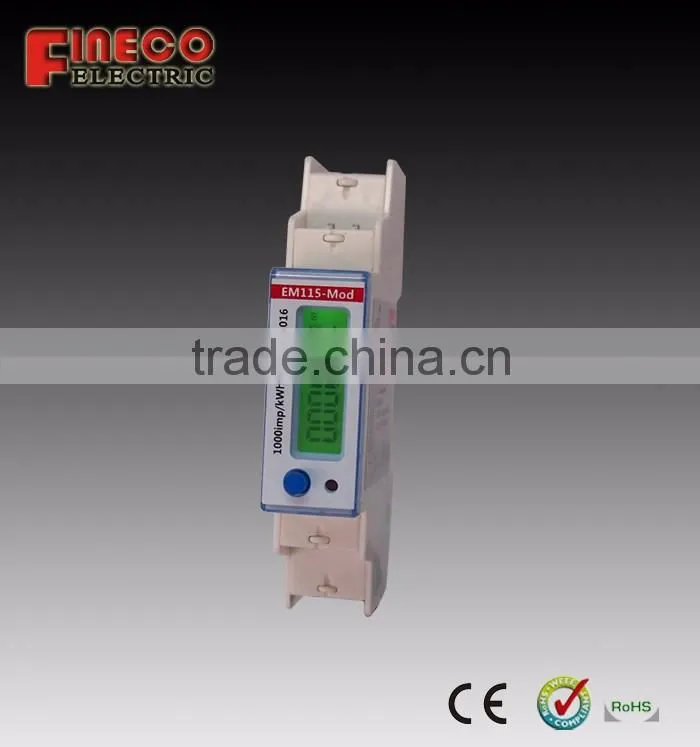

EM115-Mod Bi-directional Energy Meter, Smart Energy Meter, RS485, 5(45)A

EM115-Mod Bi-directional Energy Meter, Smart Energy Meter, RS485, 5(45)A photo-1
US$ 23 - 27 MOQ: 200 Units
Key Specifications
Get Latest Price
Brand Name:
Fineco
Model Number:
EM-115
Display Type:
Digital Only
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Fineco
Model Number EM-115
Display Type Digital Only
Phase Single Phase
Measuring Energy Range 99999.9
Accuracy Class Class1
Output Voltage 230V
Operating Temperature -25 to 75
Dimensions 18*104.5*60

                                      EM115-Mod bi-directional energy meter

                                         smart energy meter, RS485, 5(45)A



EM115-Mod bi-directional energy meter, smart energy meter, RS485, 5(45)A





Main Functions and features:

  •    Single phase metering
  •    Standard DIN rail Format (DIN43880)
  •    CI.1(kWh) according to EN62053-21 .
  •    CI.2(kvarh) according to EN62053-23
  •    Energy consumption LED
  •    LCD display , total kWh energy and kvarh readout: 5+1 DGT
  •    Green backlight display
  •    Instantaneous variables:  V, A, W, var , PF, Hz
  •    2 pulse output
  •    Smart communication port,
  •    RS485&M-bus can selected
  •    Self power supply
  •    Memory back-up (EEprom)
  •   18mm wideth 1 modual

Meter specification:



Voltage(v)

120/ 230

Operational voltage

70%-130%Un

- Iref

5A

-Itr

0.5A

-Imax

45A

-Imin

0.25A

-Ist

20mA

Power consumption of current circuits(VA)

< 0.01

Power consumption of voltage circuits(W)

< 1.3W

General data



Frequency (Hz)

50/60

Accuracy

Current

±0.5%

Voltage

±0.5%

Frequency

±0.1Hz

Active power

±1%

Reactive power

±2%

LED

Red led,1000imp/kWh

Output specification

Pulse duration

100ms < 120msec (ON),

120ms (OFF)

Insulation

4000 VRMS output to

measuring inputs

Memory back-up

EEprom

Connections





Cable cross-section area

Screw-type

 Min 2.5mm2 Max 10mm2

Other terminals: 1.5mm2

DIN House(W×H×D)

17.5×90×67.5





Lcd content :

EM115-Mod bi-directional energy meter, smart energy meter, RS485, 5(45)A

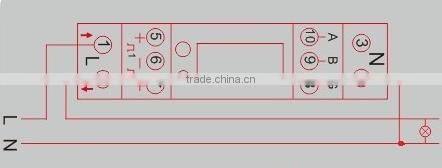

Wiring diagram



EM115-Mod bi-directional energy meter, smart energy meter, RS485, 5(45)A





EM115-Mod bi-directional energy meter, smart energy meter, RS485, 5(45)A

               EM115-Mod bi-directional energy meter, smart energy meter, RS485, 5(45)A

EM115-Mod bi-directional energy meter, smart energy meter, RS485, 5(45)A
